3.4.12.6 CR HP Sensor
1. Remove the Color Measurement Device. (p255)
2. Remove the Mounter. (p132)
3. Remove the Upper Cover. (p257)
4. Open the Front Cover, and move the carriage to the right.
(Step 6 in “3.4.12.5 Paper Pressing Motor” (P. 269))
5. Disengage the hooks that secure the CR HP Sensor, and remove the CR HP
Sensor.
6. Disconnect the connector from the CR HP Sensor.

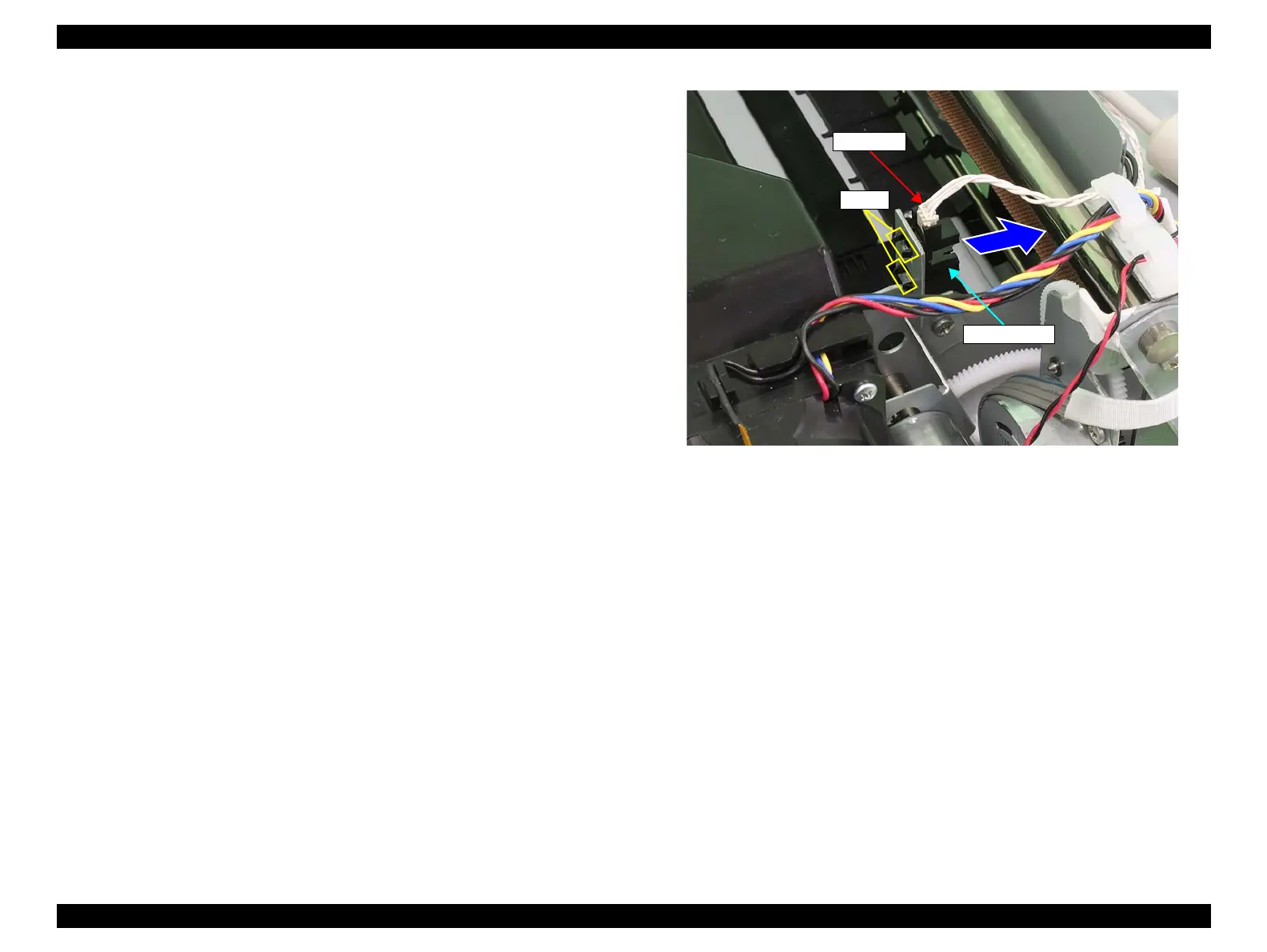

Figure 3-214. Removing the CR HP Sensor
CR HP Sensor
Connector
Hooks
