3.4.9.5 Wiper Cleaner
1. Perform “ Wiper and Cap Cleaning & Exchange” (Page 356), and move the Wiper
to the position to replace.
2. Remove the Right Upper Cover. (p138)
3. Remove the two screws that secure the Wiper Cleaner.
A) Silver, Phillips, Bind P-tite M3x8: two pieces
4. Remove the Wiper Cleaner.

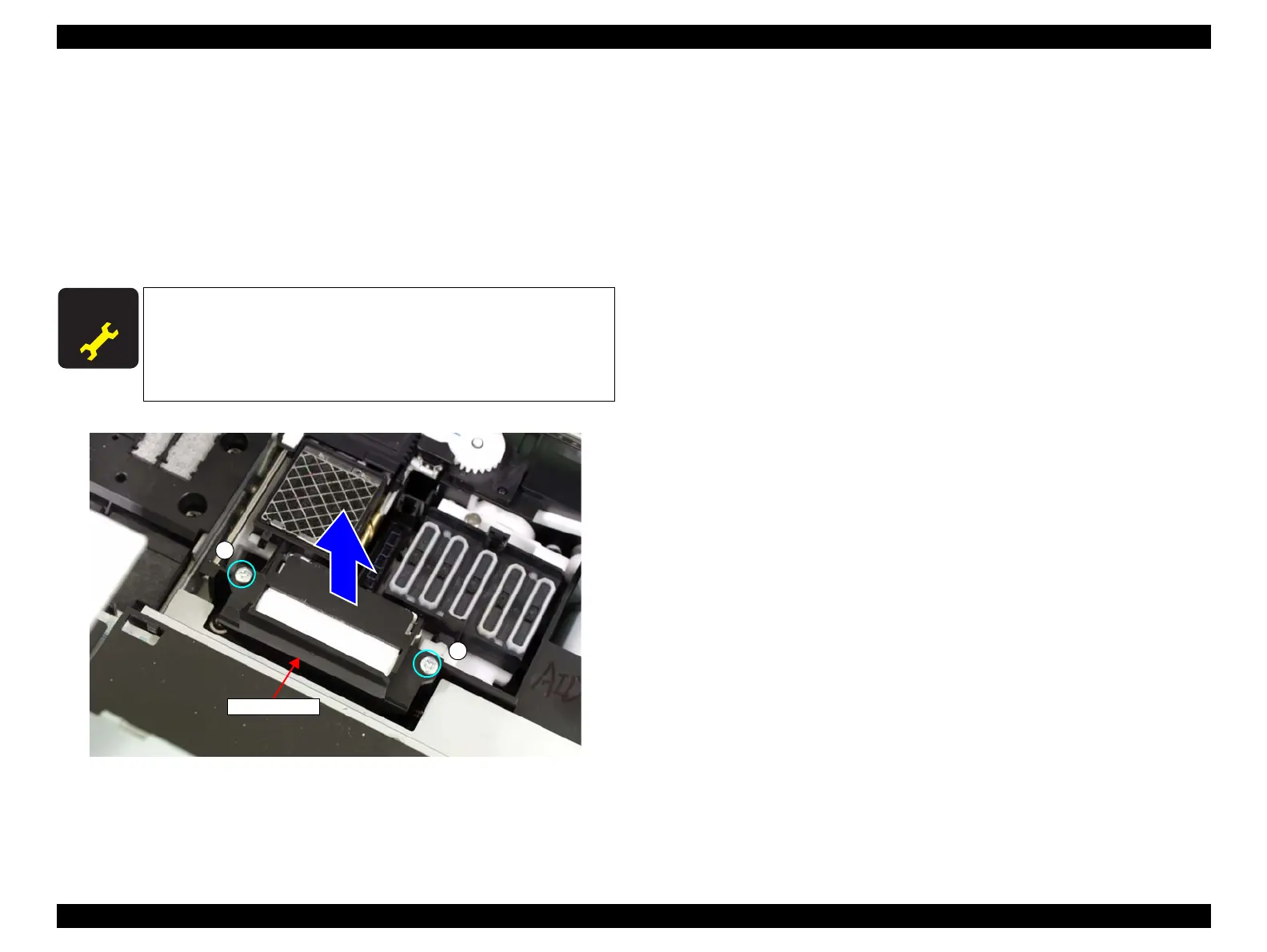

Figure 3-172. Removing the Wiper Cleaner
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustments after replacing the Wiper Cleaner.
<Adjustment items>
1. Wiper and Cap Cleaning & Exchange
2. Counter Reset (Wiper Cleaner Counter)
A
Wiper Cleaner
A
