Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 167
Confidential
3.4.3.11 Control Panel Board
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the LED Board. (p166)
5. Disconnect the FFC from the Control Panel Board.
6. Remove the two screws that secure the Control Panel Board, and remove the
Control Panel Board.
A) Silver, Phillips, Bind P-tite M3x8 (bit: No.1): two pieces

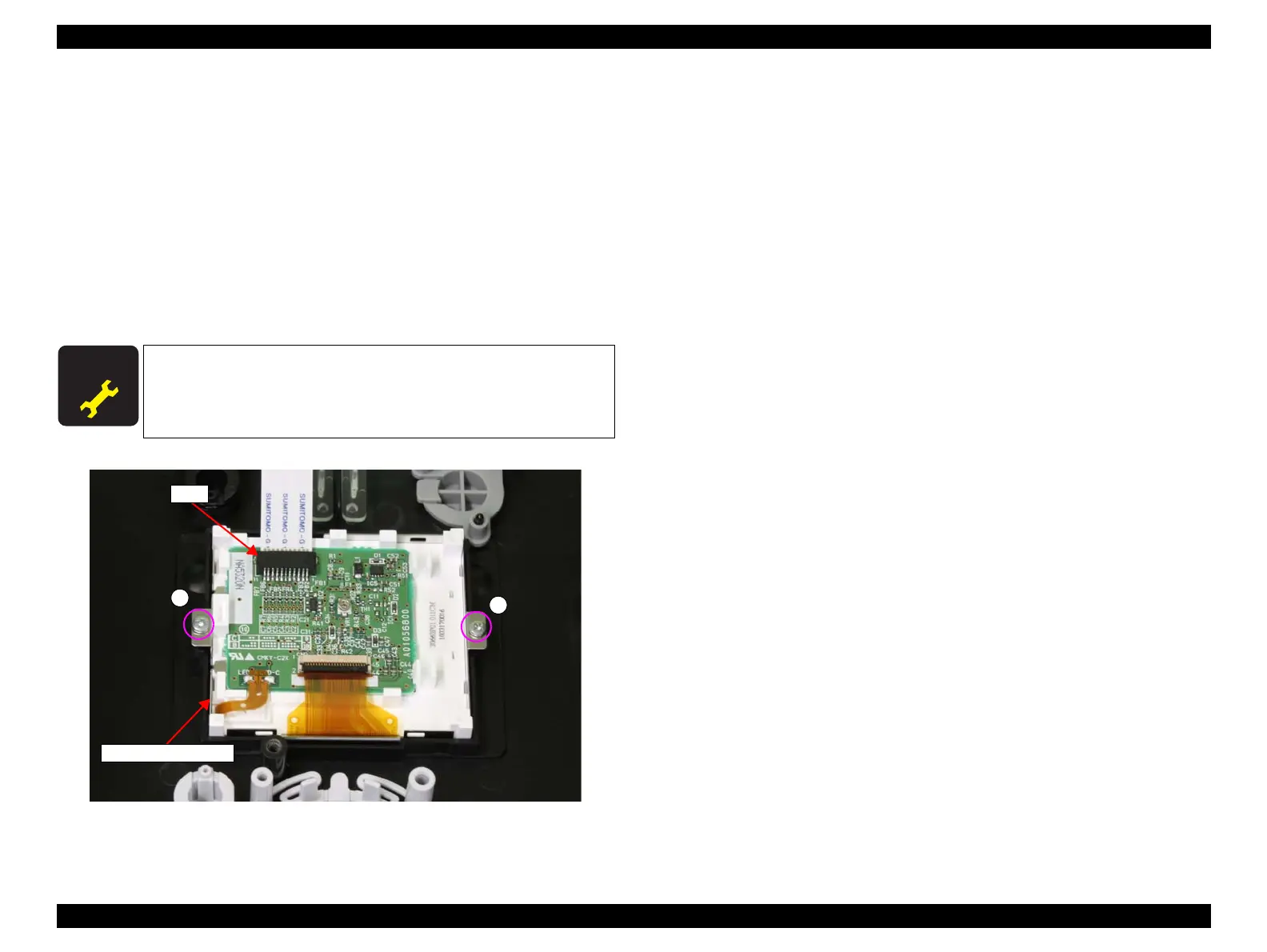

Figure 3-77. Removing the Control Panel Board
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the Control Panel Board.
<Adjustment item>
Operation Panel Check (Buttons & LCD)
Control Panel Board
A
A
FFC
