Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 243
Confidential
13. Remove the eight screws that secure the Full (Left) Side Cartridge Holder.
C) Silver, Phillips, Round Washer Head S-tite M3x6: eight pieces
14. Slide the Full (Left) Side Cartridge Holder to the left to remove it from the main
body.

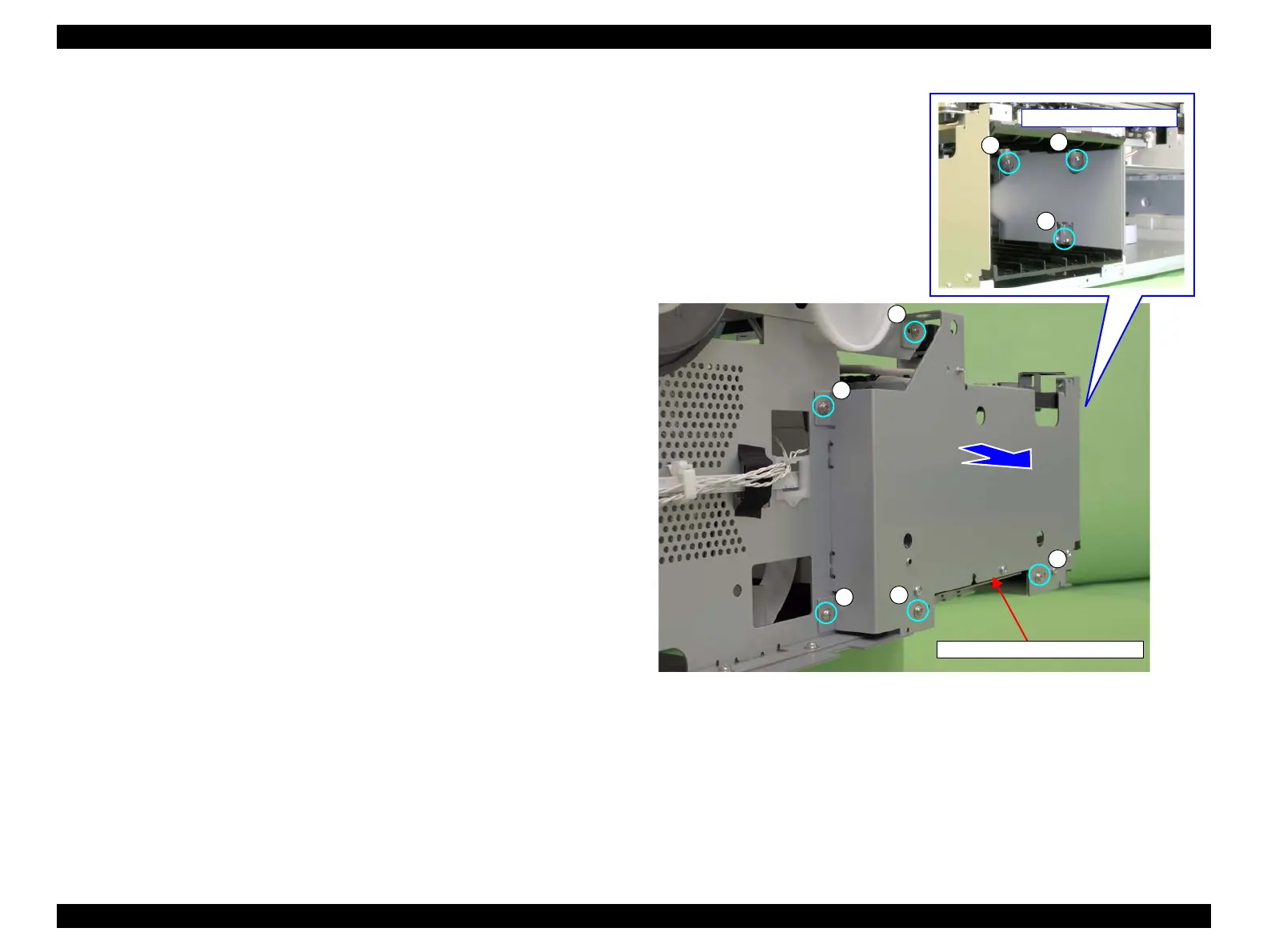

Figure 3-178. Removing the Full (Left) Side Cartridge Holder
C
C
C
C
C
Full (Left) Side Cartridge Holder
C
C
C
- In the Cartridge Holder -
