Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 269
Confidential
3.4.12.5 Paper Pressing Motor
1. Remove the Color Measurement Device. (p255)
2. Remove the Mounter. (p132)
3. Remove the Upper Cover. (p257)
4. Remove the I/F Cover. (p258)
5. Remove the Left Cover. (p260)
6. Open the Front Cover, and move the carriage to the right.

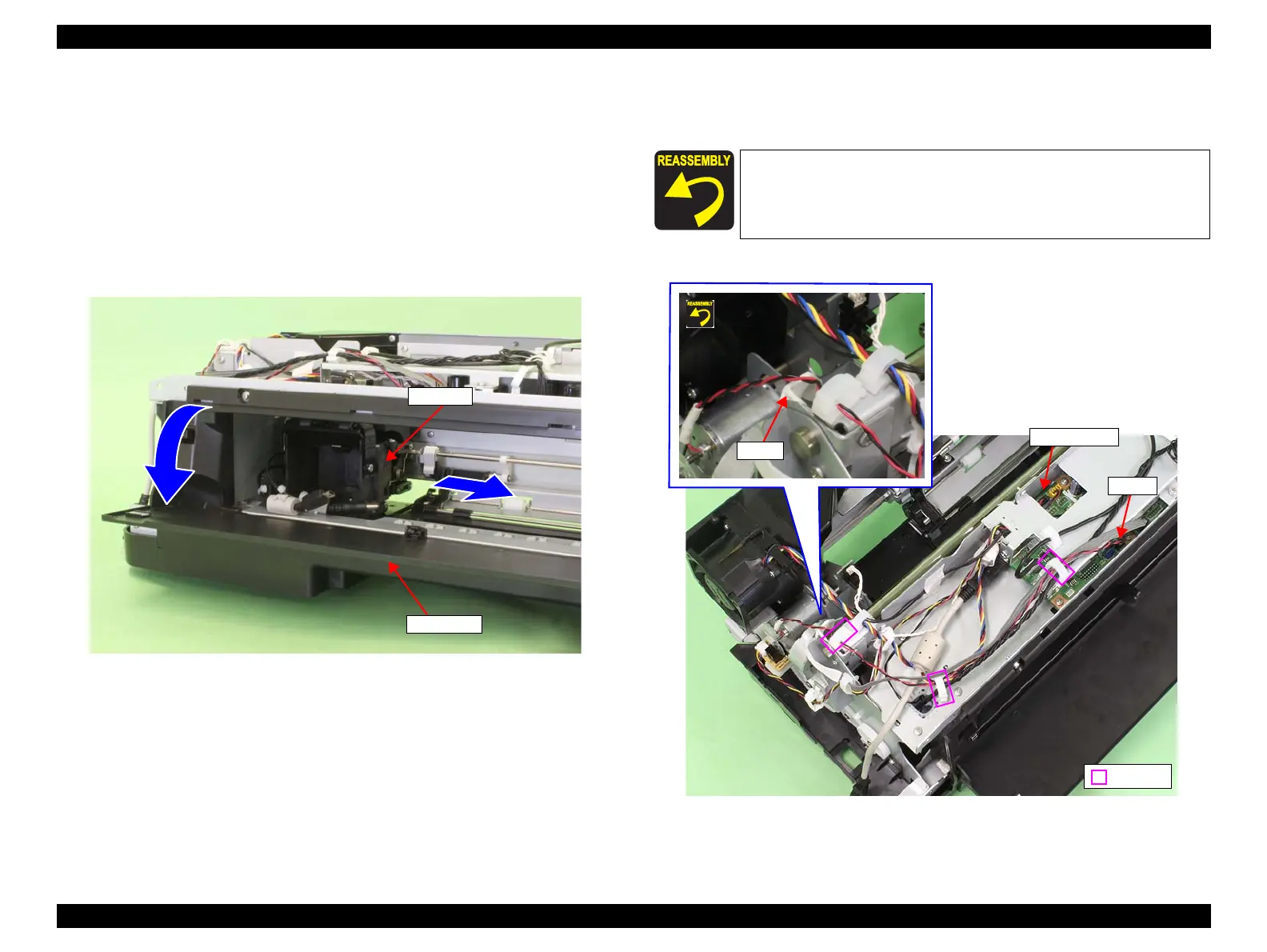

Figure 3-211. Moving the carriage
7. Disconnect the connector (CN18) from the Main-C Board.
8. Release the harness from the three clamps.
Figure 3-212. Releasing the harness
Carriage
Front Cover
Be sure to route the harness of the Paper Pressing Motor over the
tape. See Figure 3-212.
CN18
Clamp
Tape
Main-C Board
To Next Page
