3.4.1.8 Spindle
1. Turn the printer ON.
2. Open the Roll Paper Cover.
3. Push the paper set button, and release the Paper Presser.
4. Remove the spindle.

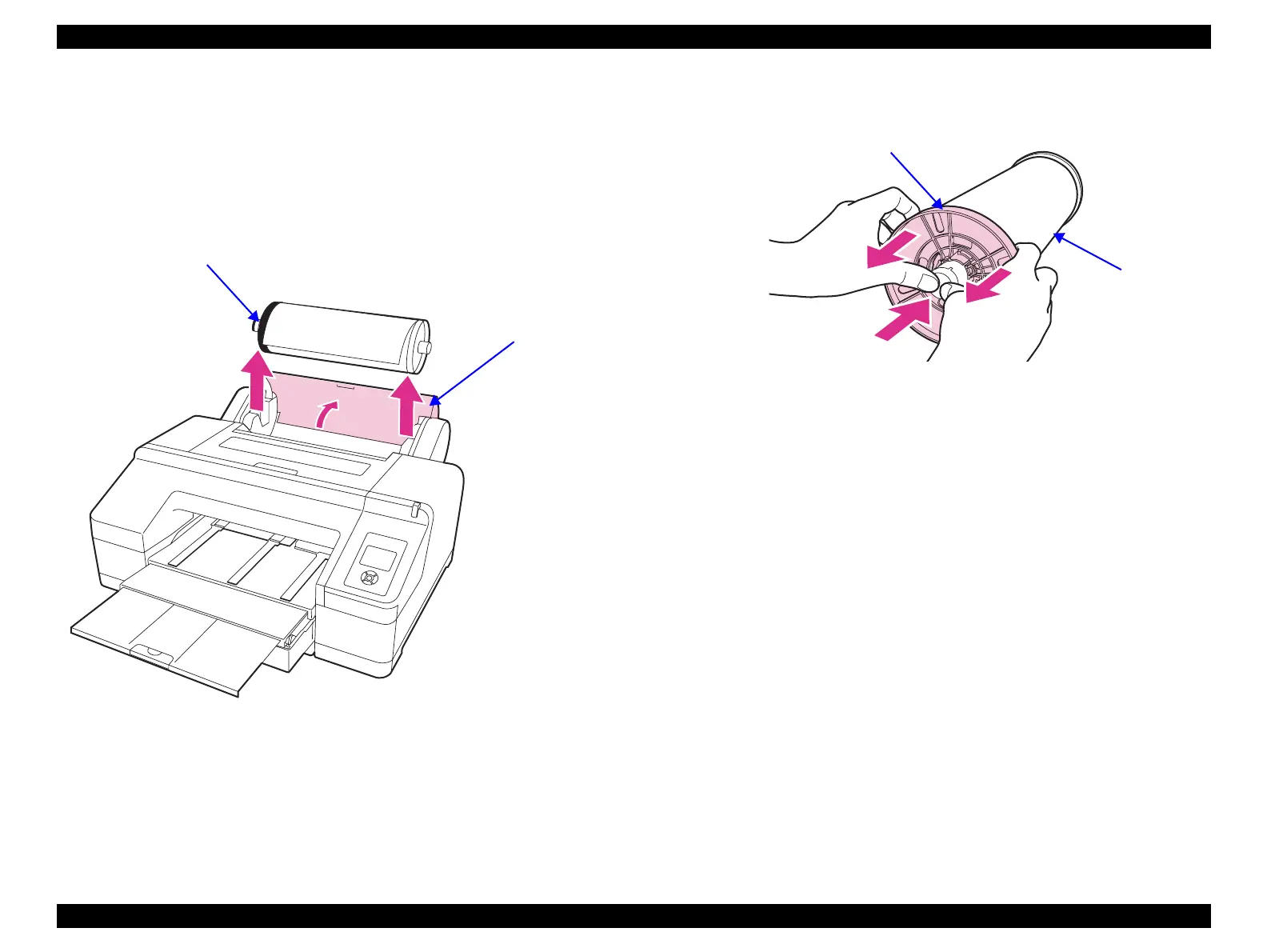

Figure 3-25. Removing the spindle
5. Remove the roll paper from the spindle by removing the flange.
Figure 3-26. Removing the roll paper
Roll Paper Cover
Spindle
Roll paper
Flange
