Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 144
Confidential
3.4.2.10 Rear Cover
1. Remove the seven screws that secure the Rear Cover.
A) Silver, Phillips, Bind S-tite with S.W & P.W. M4x10: seven pieces
2. Remove the Rear Cover.

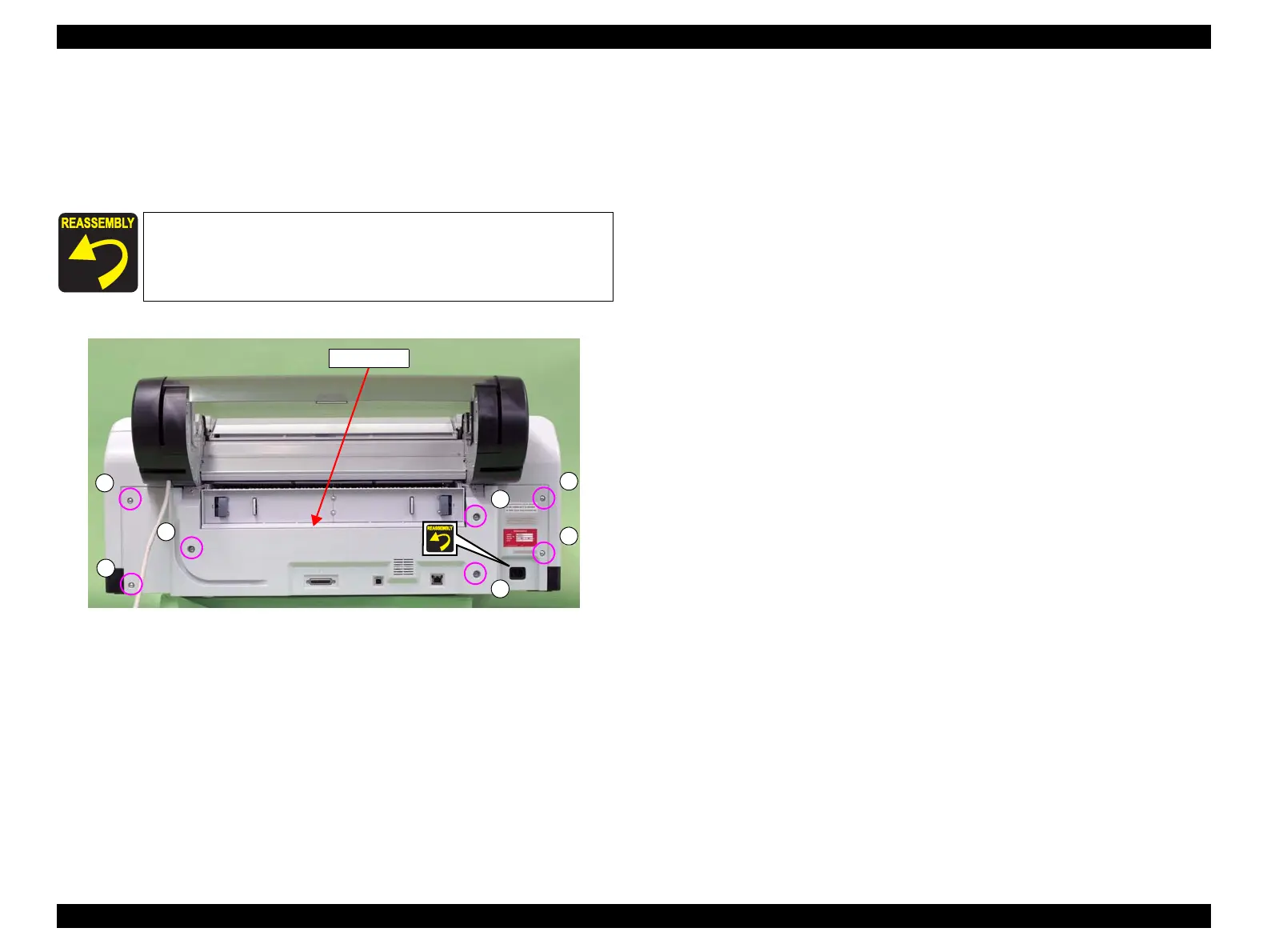

Figure 3-43. Removing the Rear Cover
When installing the Rear Cover, be careful not to let the harnesses
get caught.
Rear Cover
A
A
A
A
A
A
A
