Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 203
Confidential
3.4.6.2 ASF Sub Motor Assy
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Disconnect the connector from the ASF Sub Motor Assy.
6. Remove the two screws that secure the ASF Sub Motor Assy, and remove the ASF
Sub Motor Assy.
A) Silver, Phillips, Pan machine screw M2.6x6: two pieces

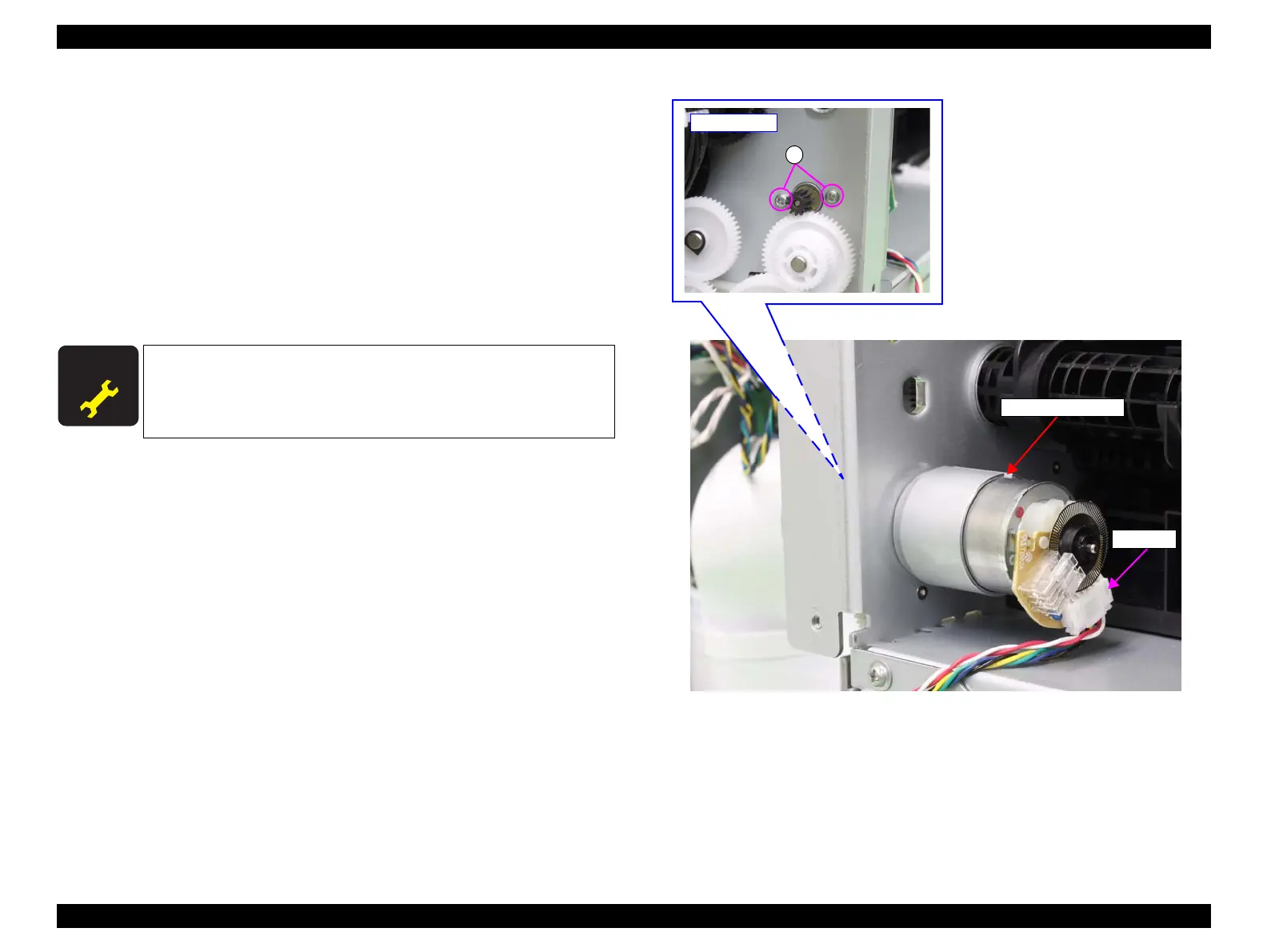

Figure 3-124. Removing the ASF Sub Motor Assy
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the ASF Sub Motor Assy.
<Adjustment item>
Counter Reset (ASF Sub Motor Assy Counter)
- Rear right -
Connector
ASF Sub Motor Assy
A
