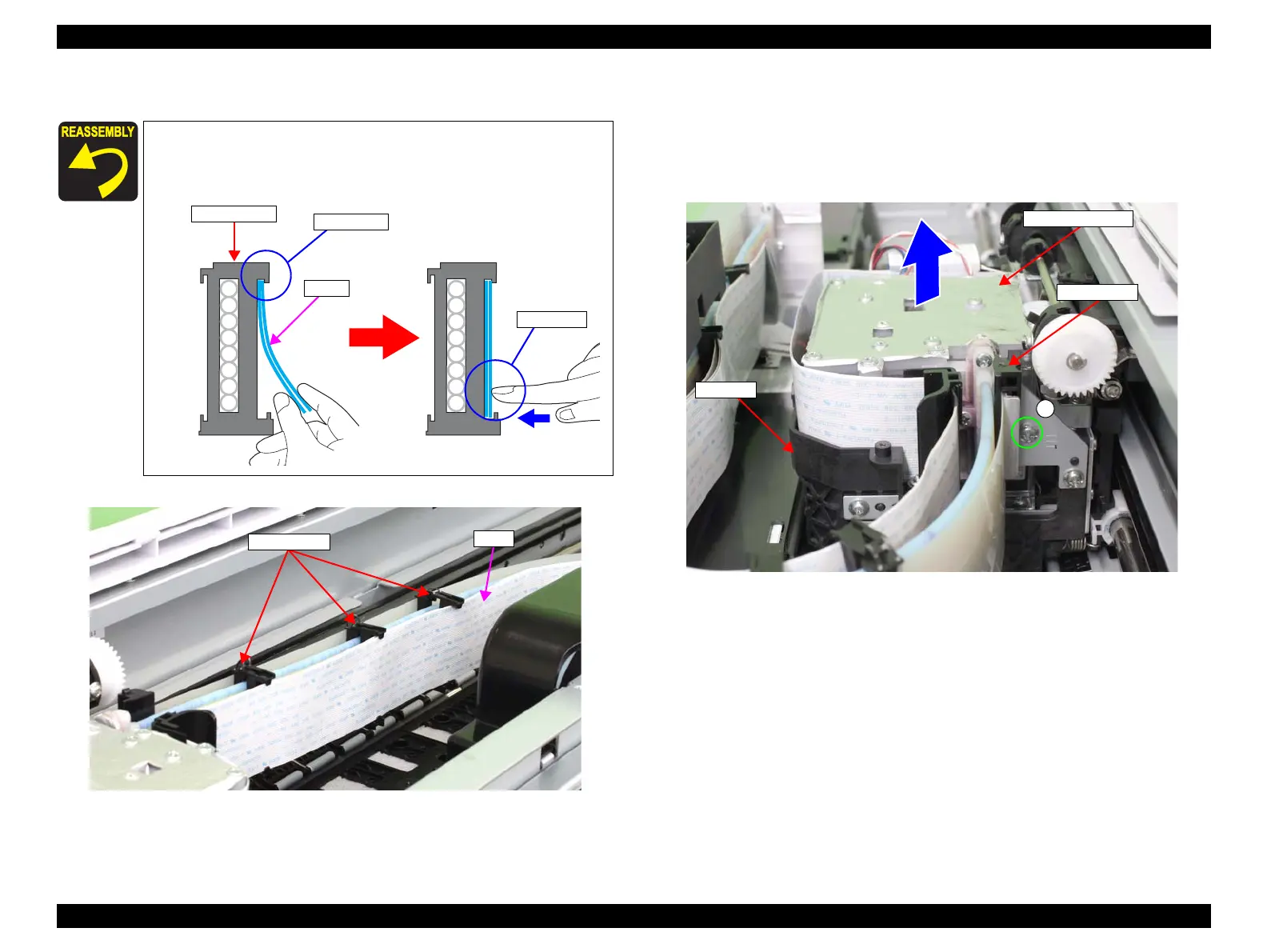

12. Release the FFC from the three cable holders.
Figure 3-162. Releasing the FFC
13. Remove the screw that secures the tube holder.
B) Silver, Phillips, Round Washer Head P-tite M3x8: one piece
14. Remove the Ink Selector Assy from the CR Unit taking care not to hit it against the
tube holder.
Figure 3-163. Removing the Ink Selector Assy
When fixing the FFC to the cable holder, be sure to set the upper
side of the FFC to the hook on the cable holder first, and then push
the lower side of the FFC to fix it.
Cable holder
Upper part
Lower part
FFC
Cable holders
FFC
B
Ink Selector Assy
CR Unit
Tube holder
