Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 215
Confidential
15. Disconnect the connector from the Paper Cassette Sensor.
16. Disengage the hooks that secure the Paper Cassette Sensor, and remove the Paper
Cassette Sensor.

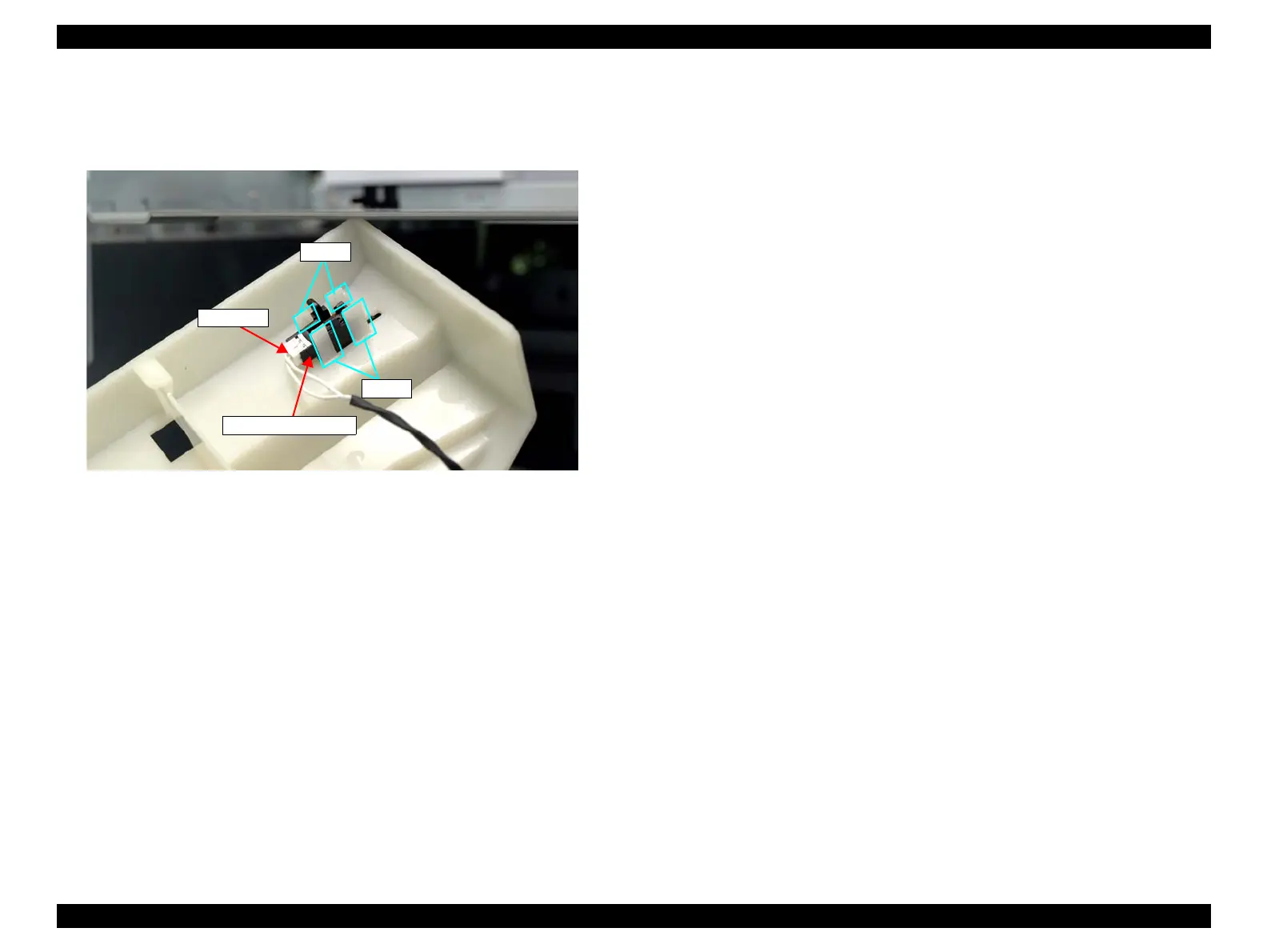

Figure 3-142. Removing the Paper Cassette Sensor
Connector
Hooks
Hooks
Paper Cassette Sensor
