17. Remove the three screws that secure the cassette rail.
C) Silver, Phillips, Bind P-tite M3x8: three pieces
18. Slide the cassette rail to the front to remove it.

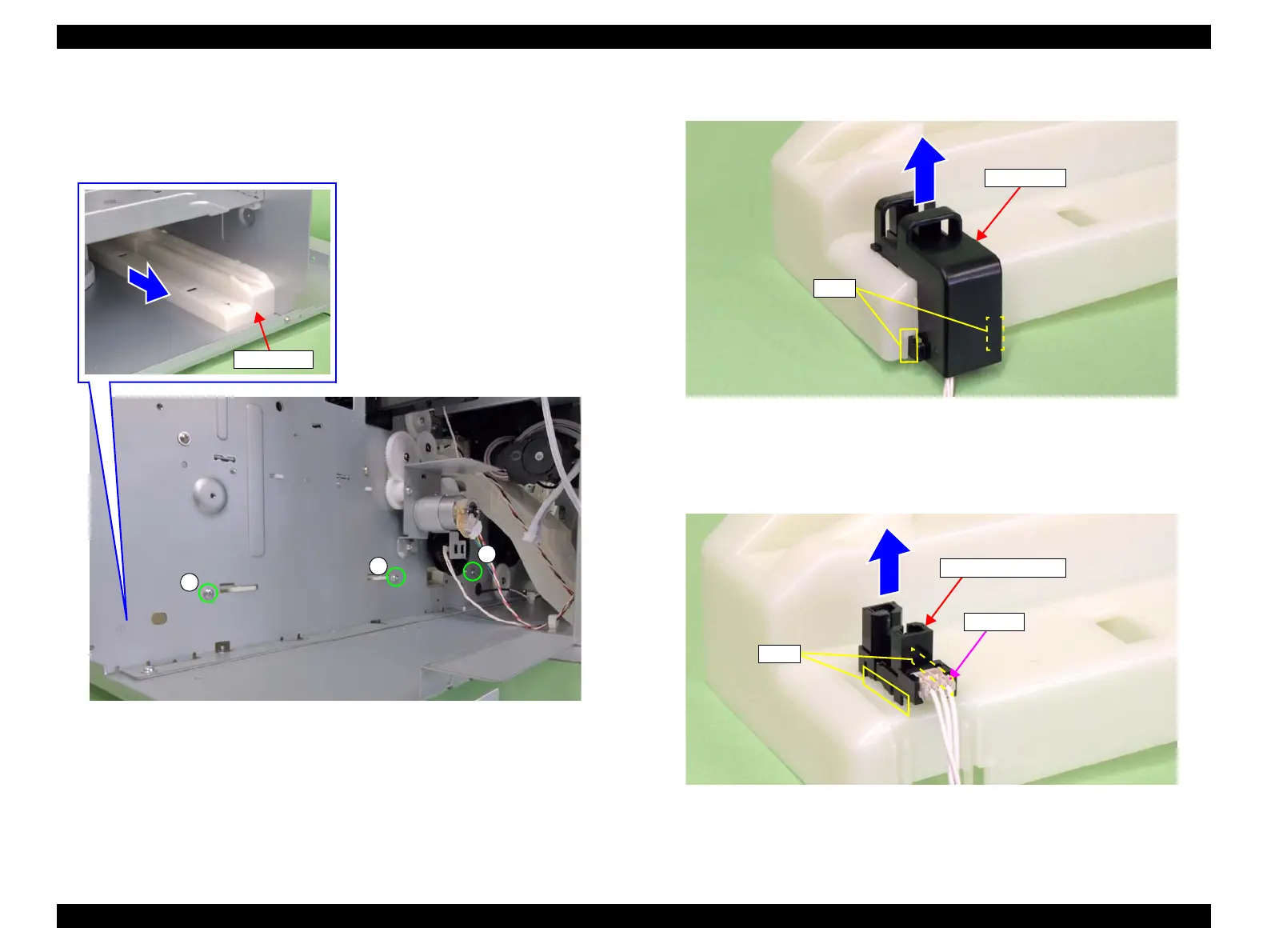

Figure 3-138. Removing the cassette rail
19. Disengage the hooks that secure the sensor cover, and remove the sensor cover.
Figure 3-139. Removing the sensor cover
20. Disconnect the connector from the Paper Empty Sensor.
21. Disengage the hooks that secure the Paper Empty Sensor, and remove the Paper
Empty Sensor.
Figure 3-140. Removing the Paper Empty Sensor
C
C
C
Cassette rail
Sensor cover
Hooks
Paper Empty Sensor
Connector
Hooks
