3.4.7 ROLL Unit
3.4.7.1 Roll Unit Sensor
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the screw that secures the sensor holder, and remove the sensor holder.
A) Silver, Phillips, Bind P-tite M3x8: one piece

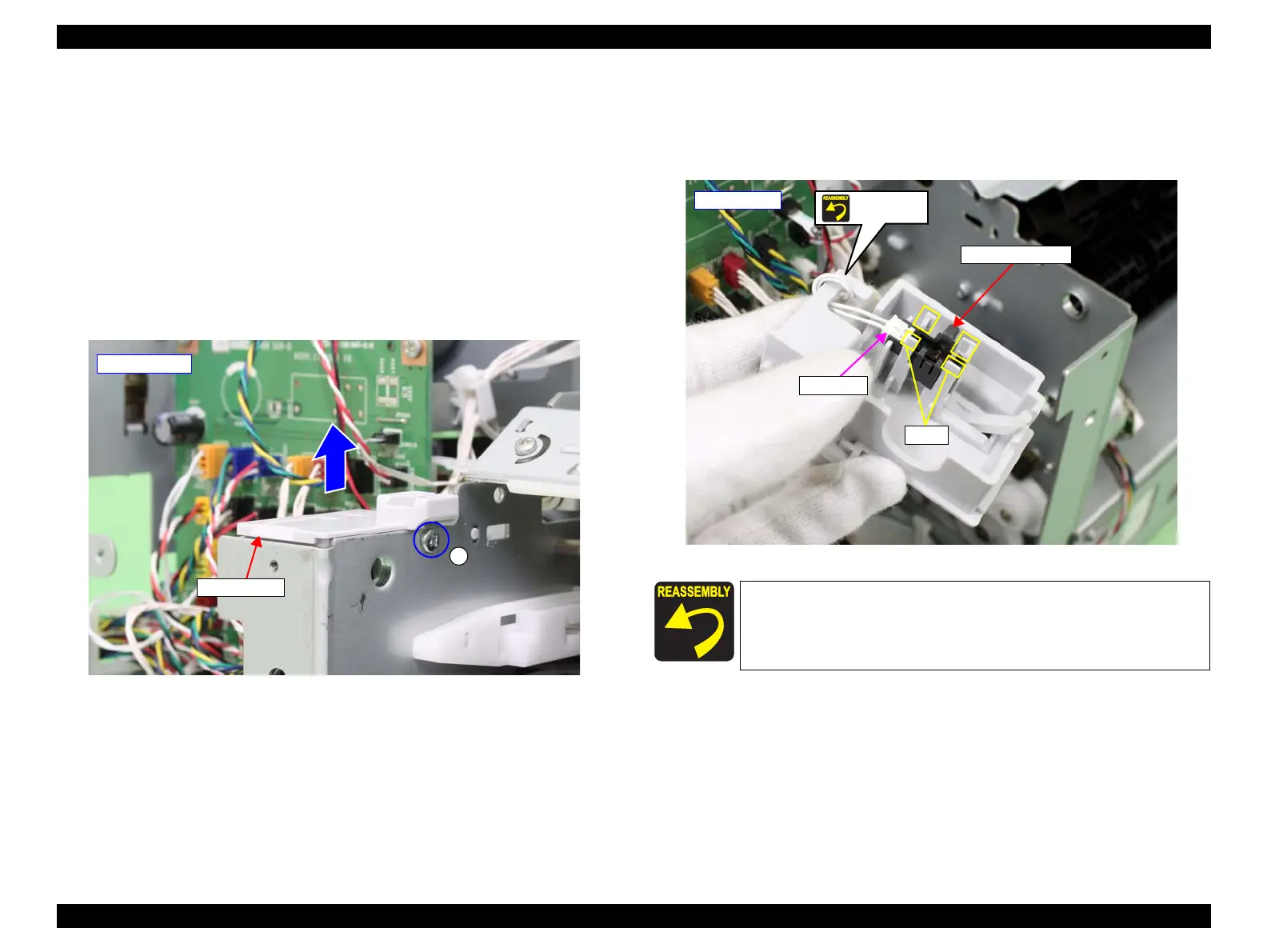

Figure 3-143. Removing the sensor holder
6. Disengage the hooks that secure the Roll Unit Sensor, and remove the Roll Unit
Sensor.
7. Disconnect the connector from the Roll Unit Sensor.
Figure 3-144. Removing the Roll Unit Sensor
- Rear right -
Sensor holder
A
When installing the Roll Unit Sensor, make sure to route the
harness correctly as shown in Figure 3-144.
Roll Unit Sensor
- Rear right -
Connector
Routing
Hooks
