Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 218
Confidential
8. Remove the three screws that secure the “HOLDER,ROLLER,RIGHT”.
B) Silver, Phillips, Round Washer Head S-tite M3x8: three pieces
9. Release the spring from the hook of the actuator.
10. Remove the “HOLDER,ROLLER,RIGHT”.
11. Disconnect the connector from the Roll Lock Sensor.
12. Disengage the hook that secures the Roll Lock Sensor, and remove the Roll Lock
Sensor.

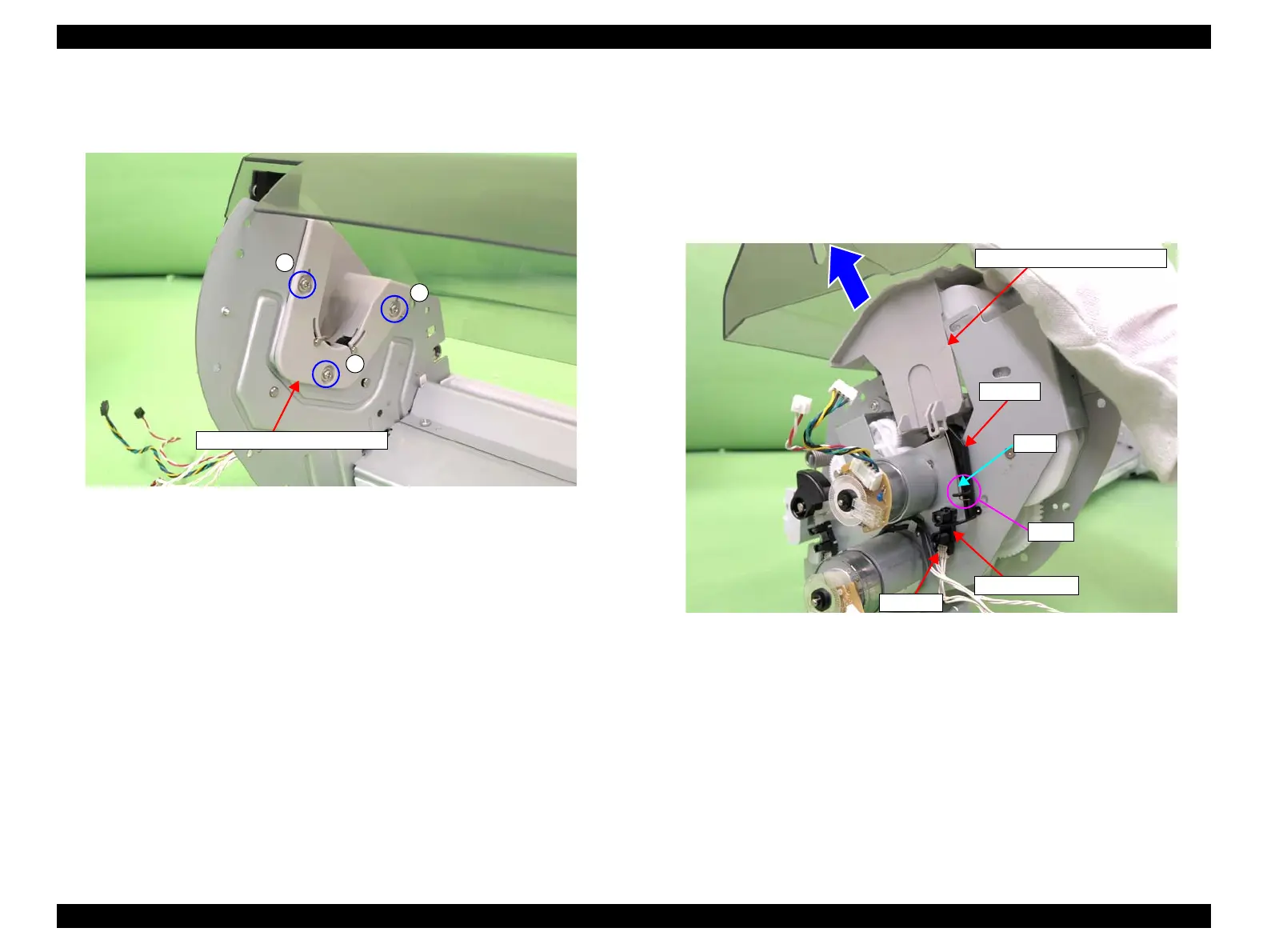

Figure 3-148. Removing the Roll Lock Sensor
“HOLDER,ROLLER,RIGHT”
B
B
B
Connector
Roll Lock Sensor
Actuator
Hook
“HOLDER,ROLLER,RIGHT”
Spring
