Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 202
Confidential
3.4.6 ASF Unit
3.4.6.1 ASF Motor Assy
1. Remove the Front Cover. (p142)
2. Remove the Left Cover. (p137)
3. Remove the Rear Cover. (p144)
4. Disconnect the connector from the ASF Motor Assy.
5. Remove the two screws that secure the ASF Motor Assy, and remove the ASF
Motor Assy.
A) Silver, Phillips, Round Washer Head S-tite M3x5: two pieces

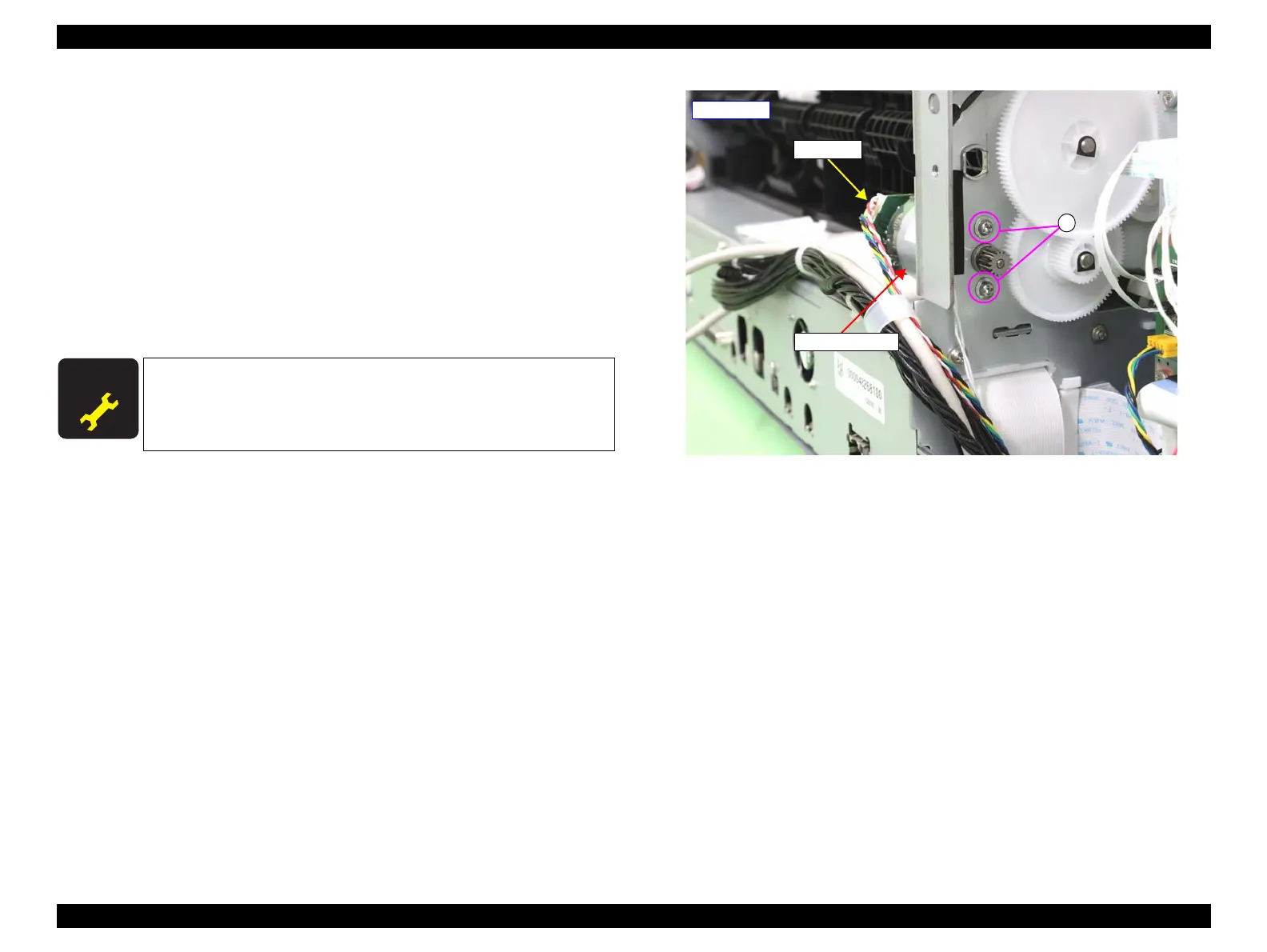

Figure 3-123. Removing the ASF Motor Assy
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the ASF Motor Assy.
<Adjustment item>
Counter Reset (ASF Motor Assy Counter)
Connector
ASF Motor Assy
A
- Rear left -
