Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 196
Confidential
11. Disconnect the connector from each Paper Thickness Sensor.
12. Disengage the four hooks that secure the Paper Thickness Sensor (s), and remove
the Paper Thickness Sensors from each sensor holder.

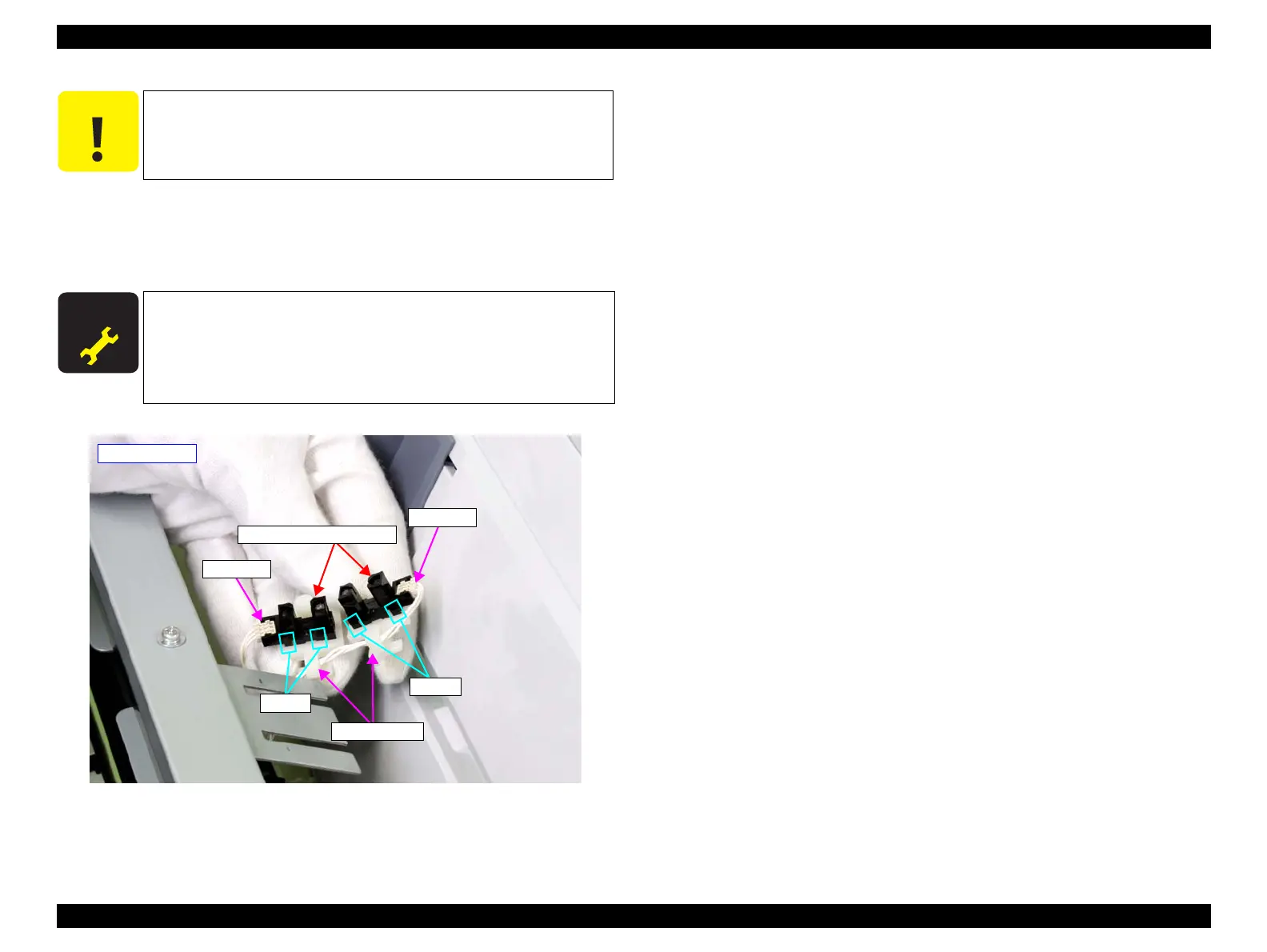

Figure 3-115. Removing the Paper Thickness Sensors
C A U T I O N
In the next step, make sure to confirm the destination of each cable.
When connecting them again, be sure to restore the original
routing.
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing or removing the Paper
Thickness Sensor (s).
<Adjustment item>
Paper Thickness Sensor Position Adjustment
Paper Thickness Sensor1, 2
Connector
- Upper right -
Hooks
Sensor holders
Hooks
Connector
To Next Page
