Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
ADJUSTMENT Image & Test Print 311
Confidential
Adjustment pattern for head slant
Check the pattern if the five lines are not overlapping or separating. If they
are overlapping or separating, check the other four sets. If none of the set
is OK, reinstall the Printhead (P. 232).

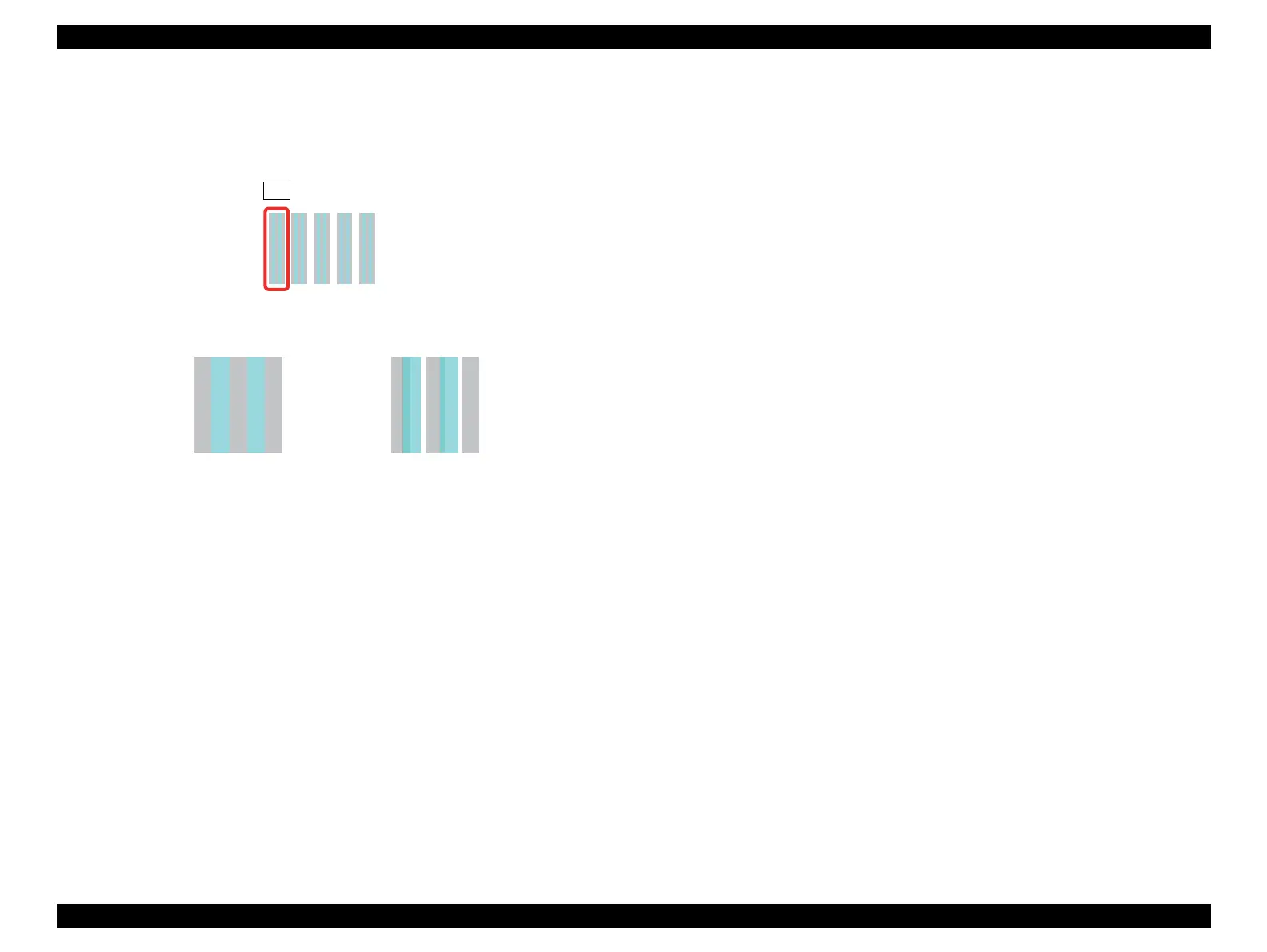

Figure 4-15. Adjustment pattern for head slant
OK
NG
1 set
To Next Page
