Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A

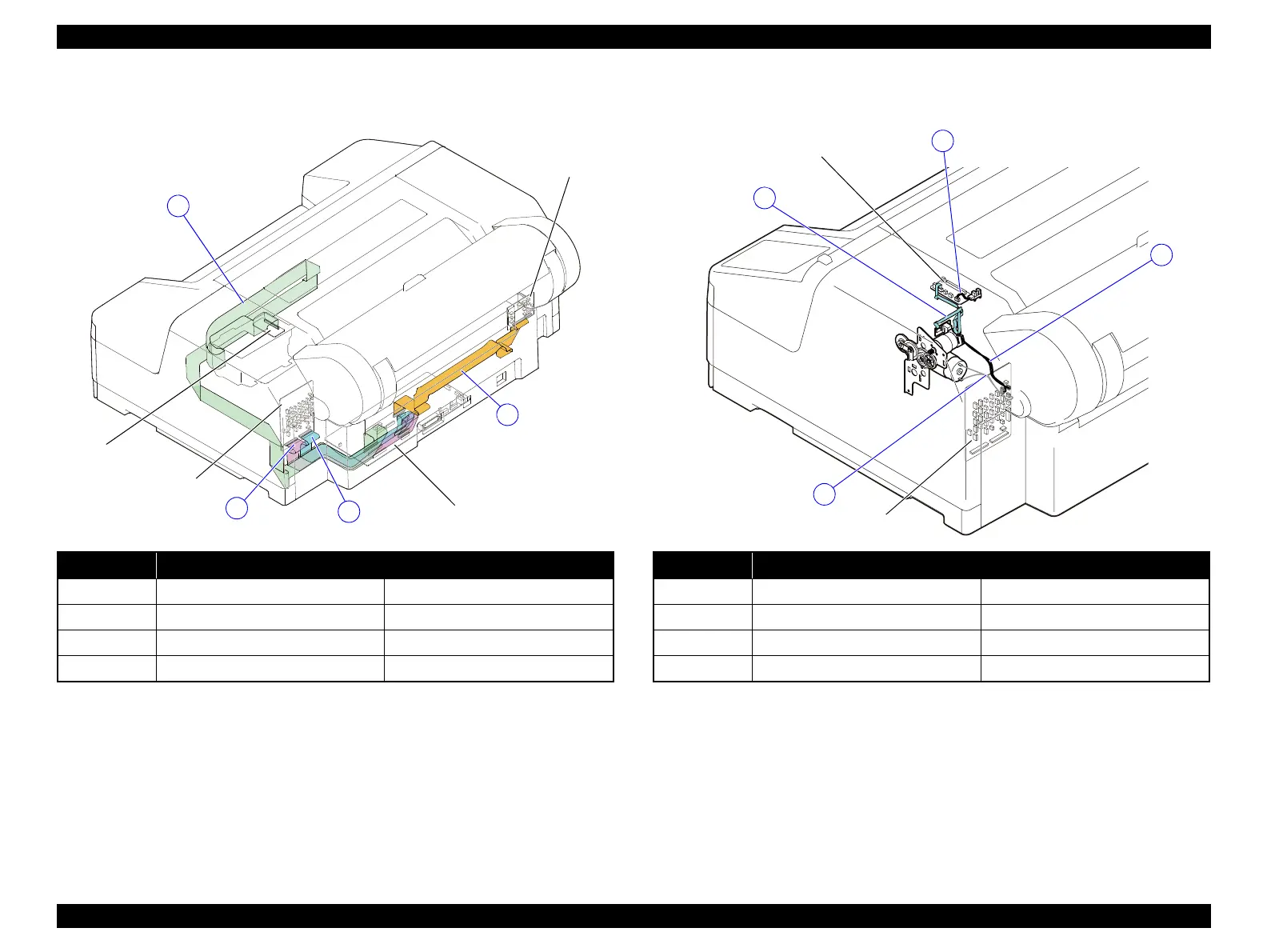

APPENDIX Connection Diagram 435
Confidential
6.2.3 Electric Circuit Components 2 6.2.4 Carriage Mechanism
Cable No. Connection
1
SUB Board (CN100) Main Board (CN100)
2
SUB-B Board (CN200) Main Board (CN201)
3
SUB-B Board (CN201) Main Board (CN200)
4
SUB-C Board (CN300) Main Board (CN300)
1
3
2
4
SUB-B Board
SUB Board
Main Board
SUB-C Board
Cable No. Connection
1
APG Sensor SUB Board (CN104)
2
CR Encoder Main Board (CN102)
3
CR Motor SUB-B Board (CN204)
4
APG Motor Assy SUB-B Board (CN207/CN206)
1
3
4
2
SUB-B Board
SUB Board
