4.16 SpectroProofer Related Adjustments
Use this to check that each part and function of the SpectroProofer operates properly.
4.16.1 SpectroProofer Sensor Check
4.16.1.1 Backing Sensor Check
1. Remove the Upper Cover of the SpectroProofer.
2. Remove the Backing.
3. Install the mounter on the printer.
4. Turn the printer ON in the Serviceman Mode.
Turn the power ON while pressing [Menu ] + [Paper Feed ] + [OK].
5. Start the Service Program.
6. Connect the USB cable to the Main-C Board.
7. Select SpectroProofer Sensor Check from the inspection program.
8. Select Backing Sensor Check.
9. Click [Run].
10. Confirm that [OFF] is displayed on the confirmation screen and click [OK].
 [OFF] is displayed: Go to Step 11
 [OFF] is NOT displayed: Go to Step 13
Figure 4-108. [OFF] Confirmation Screen
11. Click [Run] while pushing the actuator of the Backing Sensor in the direction of
the arrow.

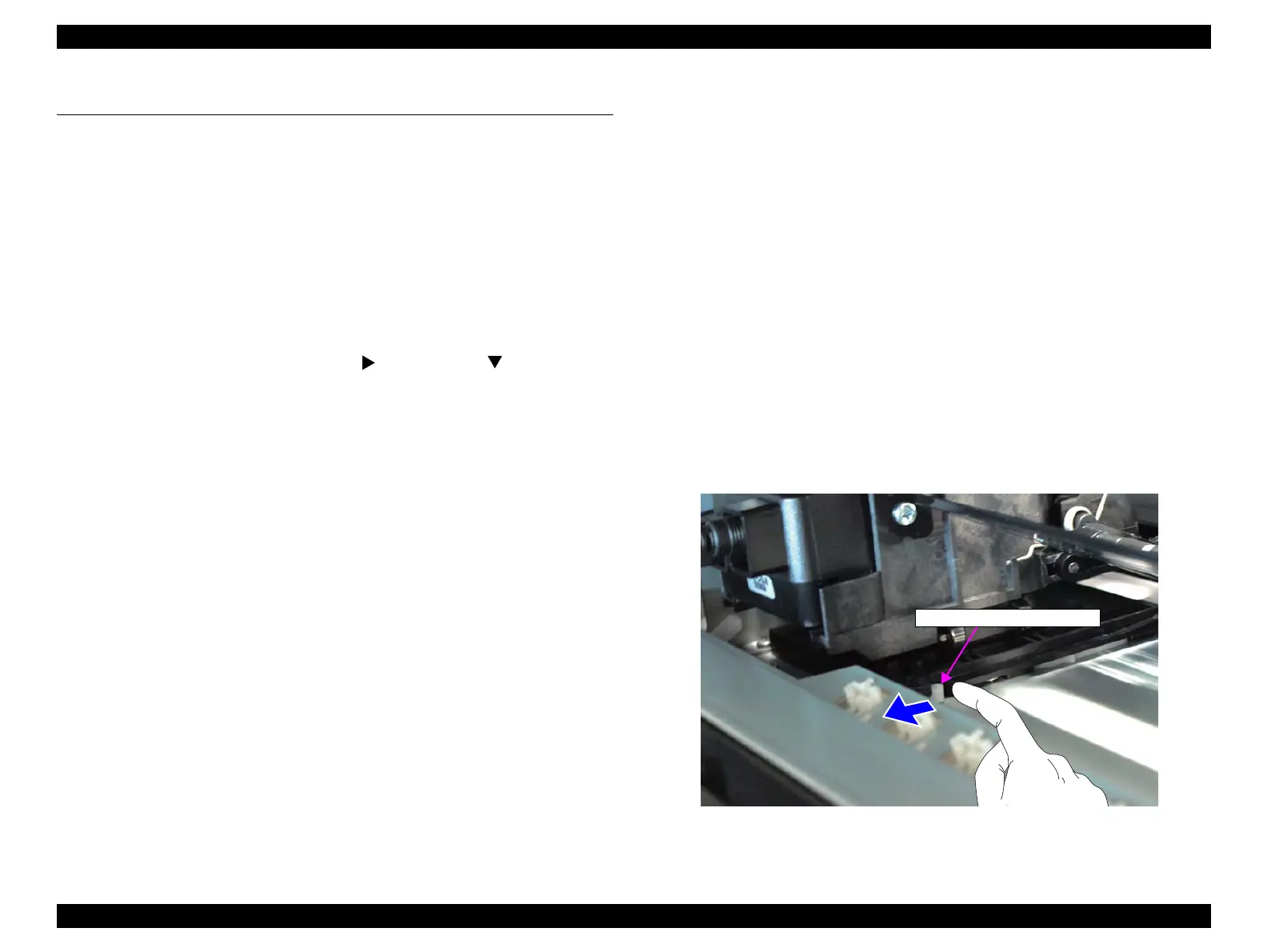

Figure 4-109. Confirmation Method
TBD
Actuator of the Backing Sensor
