Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 200
Confidential
8. Remove the two screws that secure the Edge Release Assy, and remove the Edge
Release Assy.
C) Silver, Phillips, Round Washer Head S-tite M2.6x4 (bit: No.1): two pieces

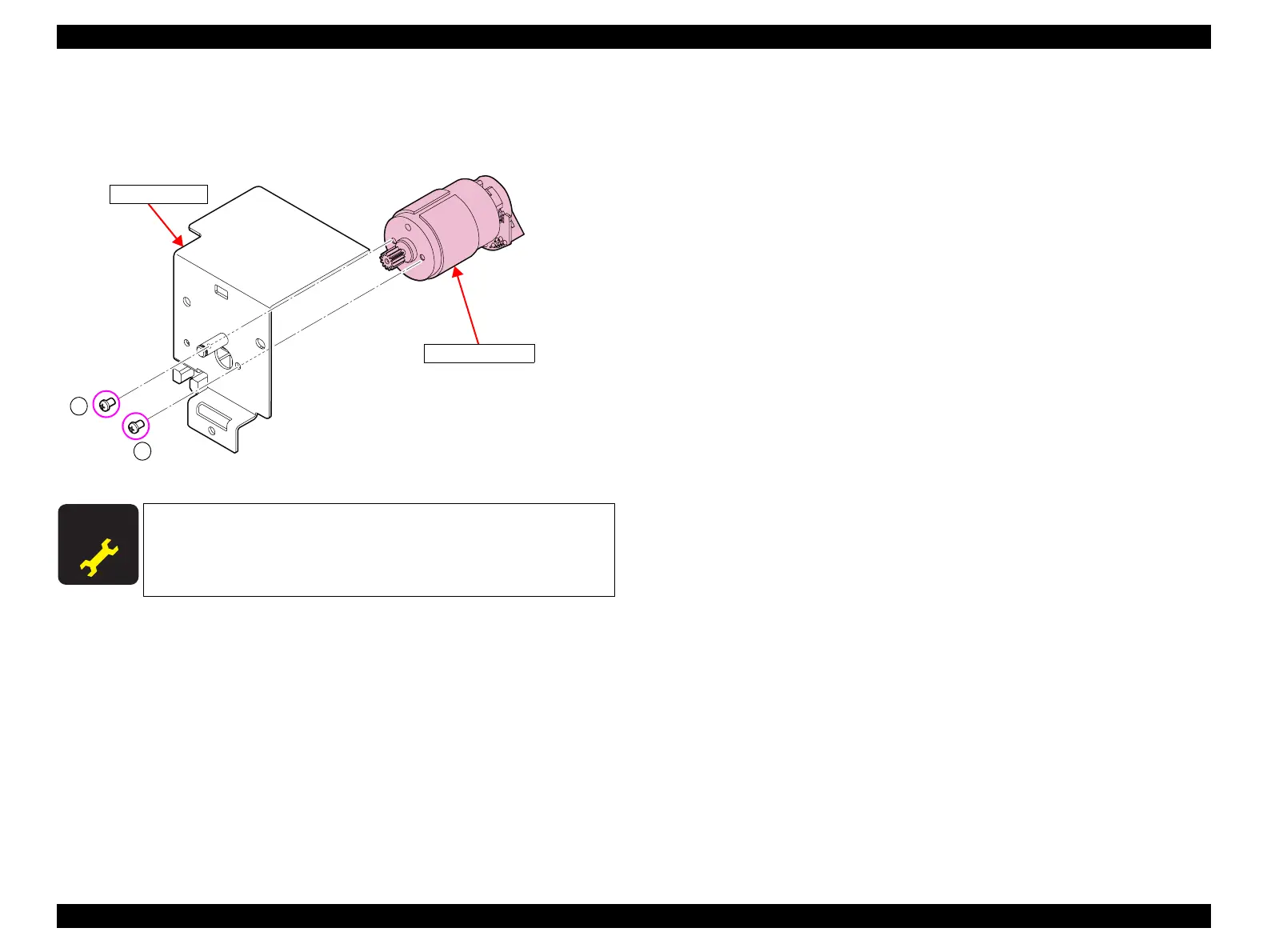

Figure 3-121. Removing the Edge Release Assy
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the Edge Release Assy.
<Adjustment item>
Counter Reset (Edge Release Assy Counter)
Mounting plate
Edge Release Assy
C
C
