Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 247
Confidential
3.4.9.10 Ink Tubes
1. Discharge ink. (p358)
2. Remove the Front Cover. (p142)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Upper Cover. (p138)
5. Remove the Right Cover. (p139)
6. Remove the Left Cover. (p137)
7. Remove the upper front cover.
(Step 6 to Step 10 in “3.4.2.2 Printer Cover Sensor” (P. 134))
8. Unlock the carriage, and move the CR Unit to the left end. (p124)
9. Remove the CR Cover. (p149)
10. Disconnect the Ink Tubes from the Ink Selector Assy. (Step 9 to Step 15 in
“3.4.9.1 Ink Selector Assy” (P. 229))
11. Remove the three screws that secure the tube cover.
A) Silver, Phillips, Round Washer Head S-tite M3x6: three pieces
12. Remove the tube cover.
13. Disengage the hooks, open the five cable holders, and release the Ink Tubes.

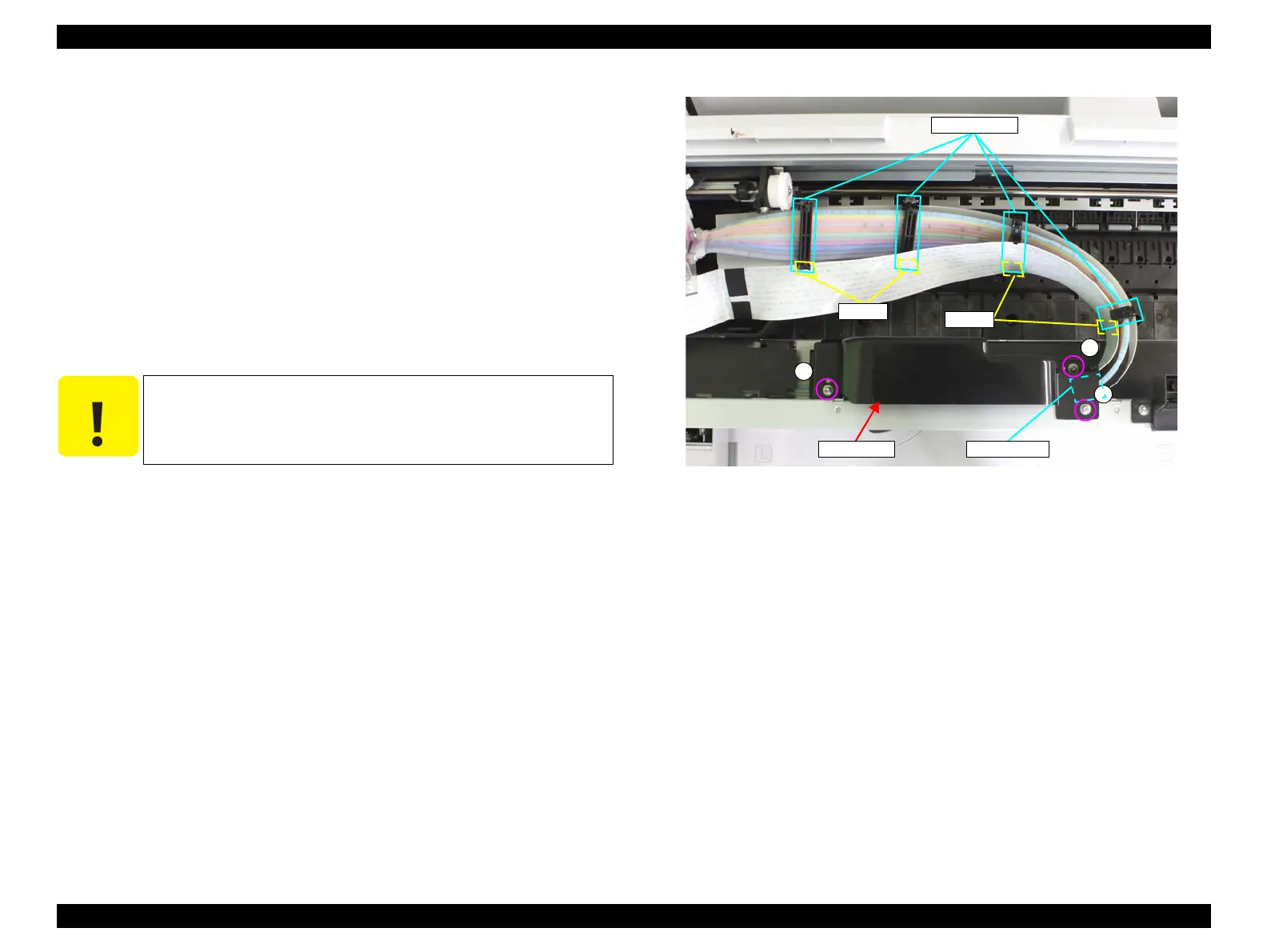

Figure 3-182. Removing the tube cover
C A U T I O N
Be sure to move the CR Unit to the left end before performing the
following steps. Performing the following step with the CR on the
platen may damage the Printhead.
Tube cover
A
A
A
Cable holders
Cable holder
Hooks
Hooks
