Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 210
Confidential

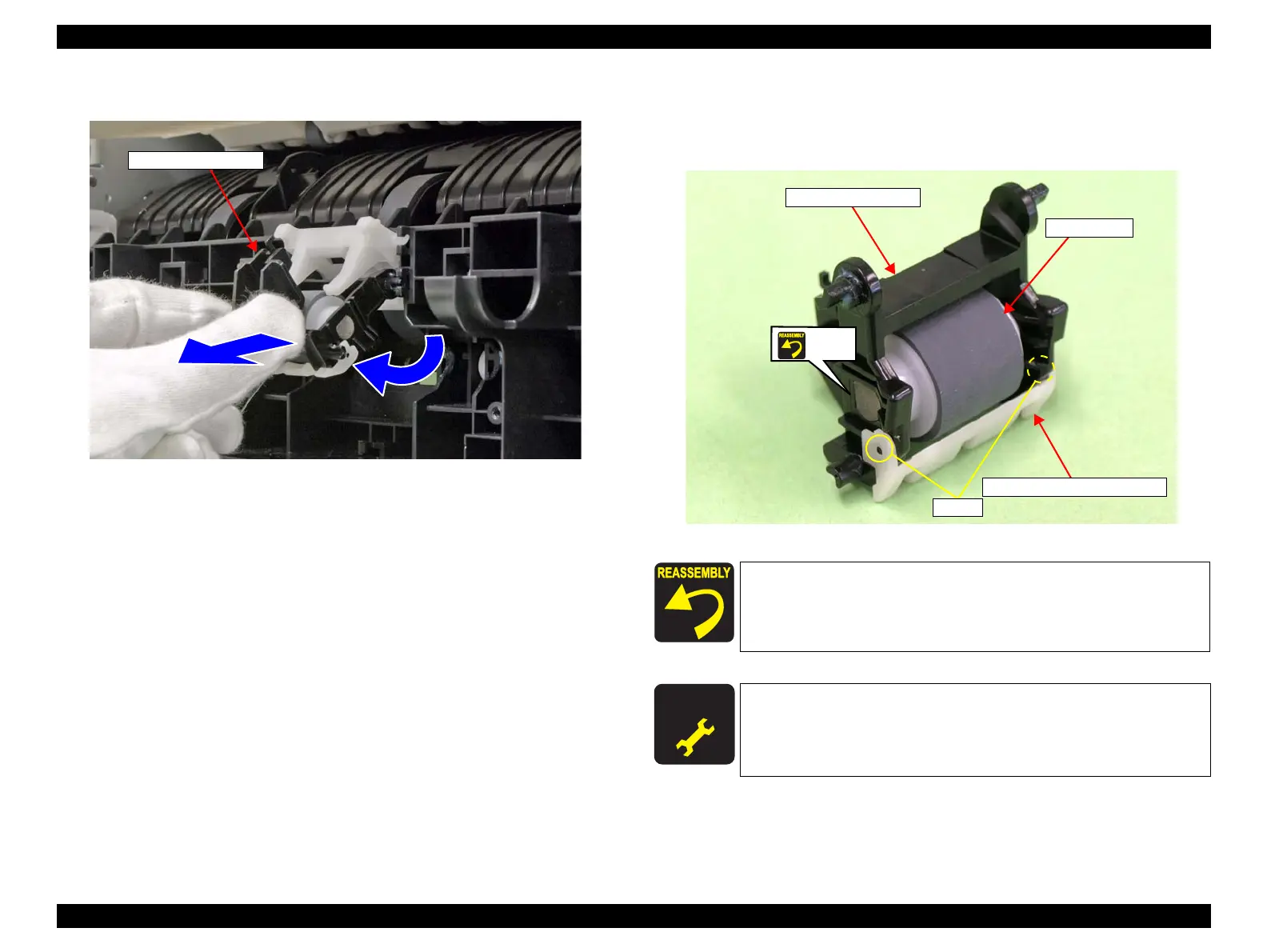

9. Pull up the “HOLDER,RETARD” as shown in the figure and remove it.
Figure 3-133. Removing the “HOLDER,RETARD”
10. Release the “HOLDER,RETARD,ASSIST” from the dowels of the
“HOLDER,RETARD”.
11. Remove the Retard Roller from the “HOLDER,RETARD”.
Figure 3-134. Removing the Retard Roller
“HOLDER,RETARD”
The shape of the shaft of the Retard Roller is D-cut. When
installing the shaft, be sure to conform it to the shape of the hole of
the “HOLDER,RETARD”.
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the Retard Roller.
<Adjustment item>
Counter Reset (Retard Roller Counter)
“HOLDER,RETARD,ASSIST”
“HOLDER,RETARD”
Dowels
Retard Roller
D-cut
To Next Page
