Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 138
Confidential
3.4.2.5 Right Upper Cover
1. Open the Printer Cover.
2. Remove the screw that secures the Right Upper Cover.
A) Silver, Phillips, Bind S-tite with S.W & P.W. M4x10: one piece
3. Lift the left side of the Right Upper Cover, and release the two dowels (1 and 2)
and the hook (3).
4. Slide the Right Upper Cover to the right, and release the two tabs (4).
5. Remove the Right Upper Cover.

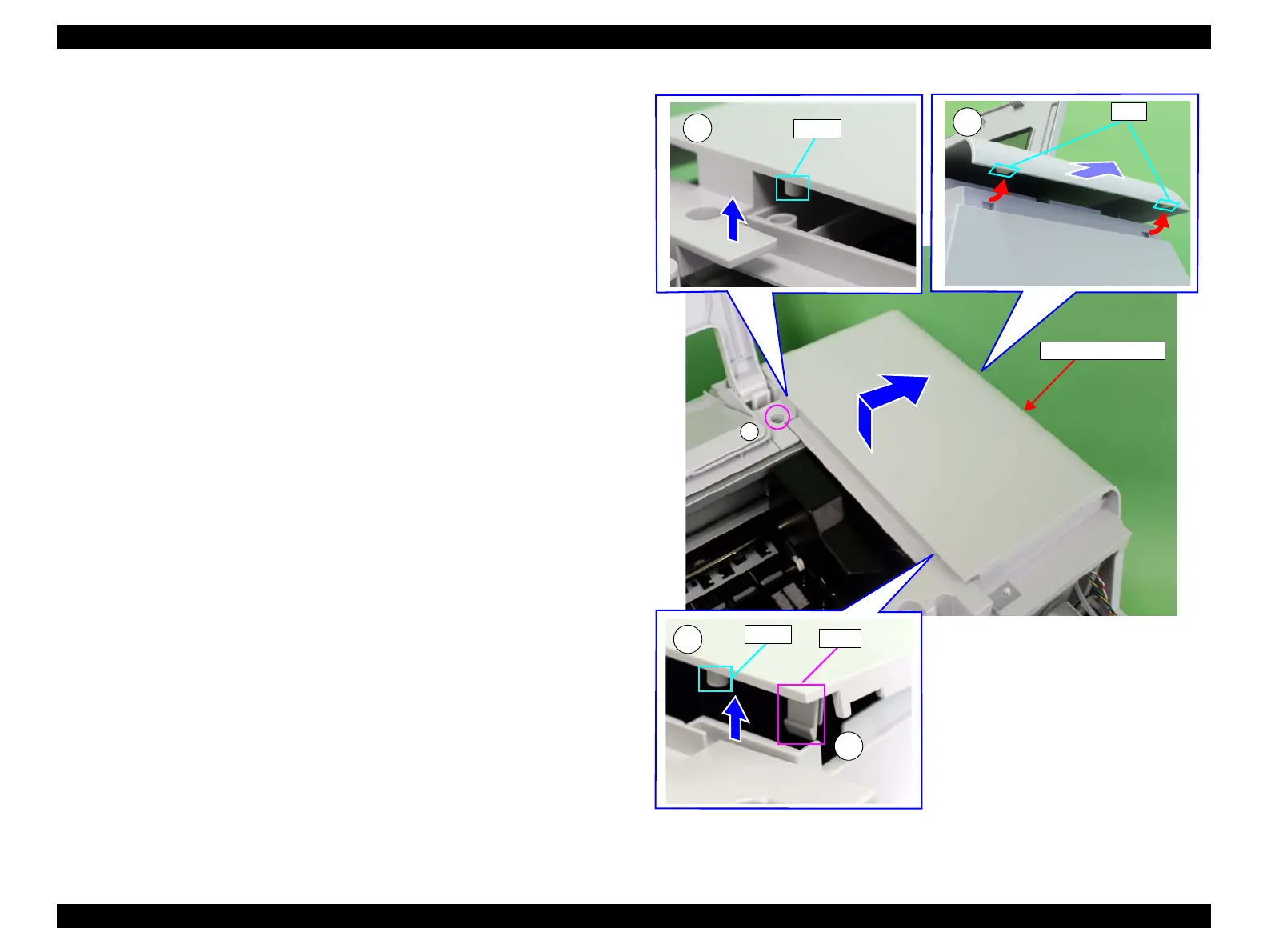

Figure 3-36. Removing the Right Upper Cover
Right Upper Cover
A
Tabs
Dowel
Dowel
Hook
1
2
4
3
