Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 201
Confidential
3.4.5.13 Edge Sensor
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the IS Unit. (p233)
6. Remove the mounting plate of the Edge Release Assy.
(Step 6 to Step 7 in “3.4.5.12 Edge Release Assy” (P. 199))
7. Disengage the hooks that secure the Edge Sensor, and remove the Edge Sensor.

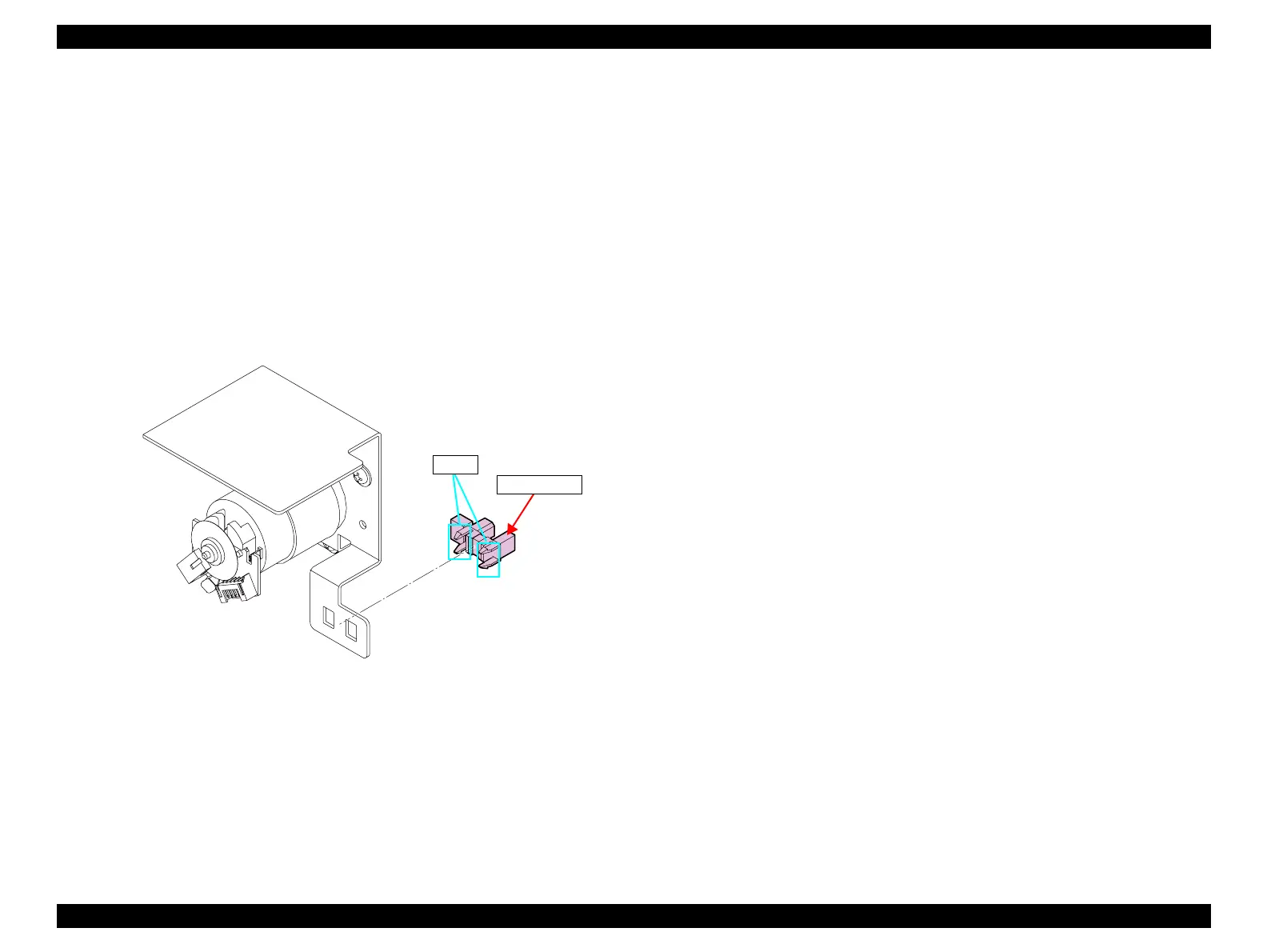

Figure 3-122. Removing the Edge Sensor
Edge Sensor
Hooks
To Next Page
