Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 199
Confidential
3.4.5.12 Edge Release Assy
1. Remove the Front Cover. (p142)
2. Remove the Right Upper Cover. (p138)
3. Remove the Control Panel Cover. (p136)
4. Remove the Right Cover. (p139)
5. Remove the IS Unit. (p233)
6. Remove the three screws that secure the mounting plate of the Edge Release Assy.
A) Silver, Phillips, Round Washer Head S-tite M3x5: two pieces
B) Silver, Phillips, Round Washer Head S-tite M3x6: one piece
7. Disconnect the connectors from the Edge Release Assy and the Edge Sensor, and
remove the Edge Release Assy together with the mounting plate.

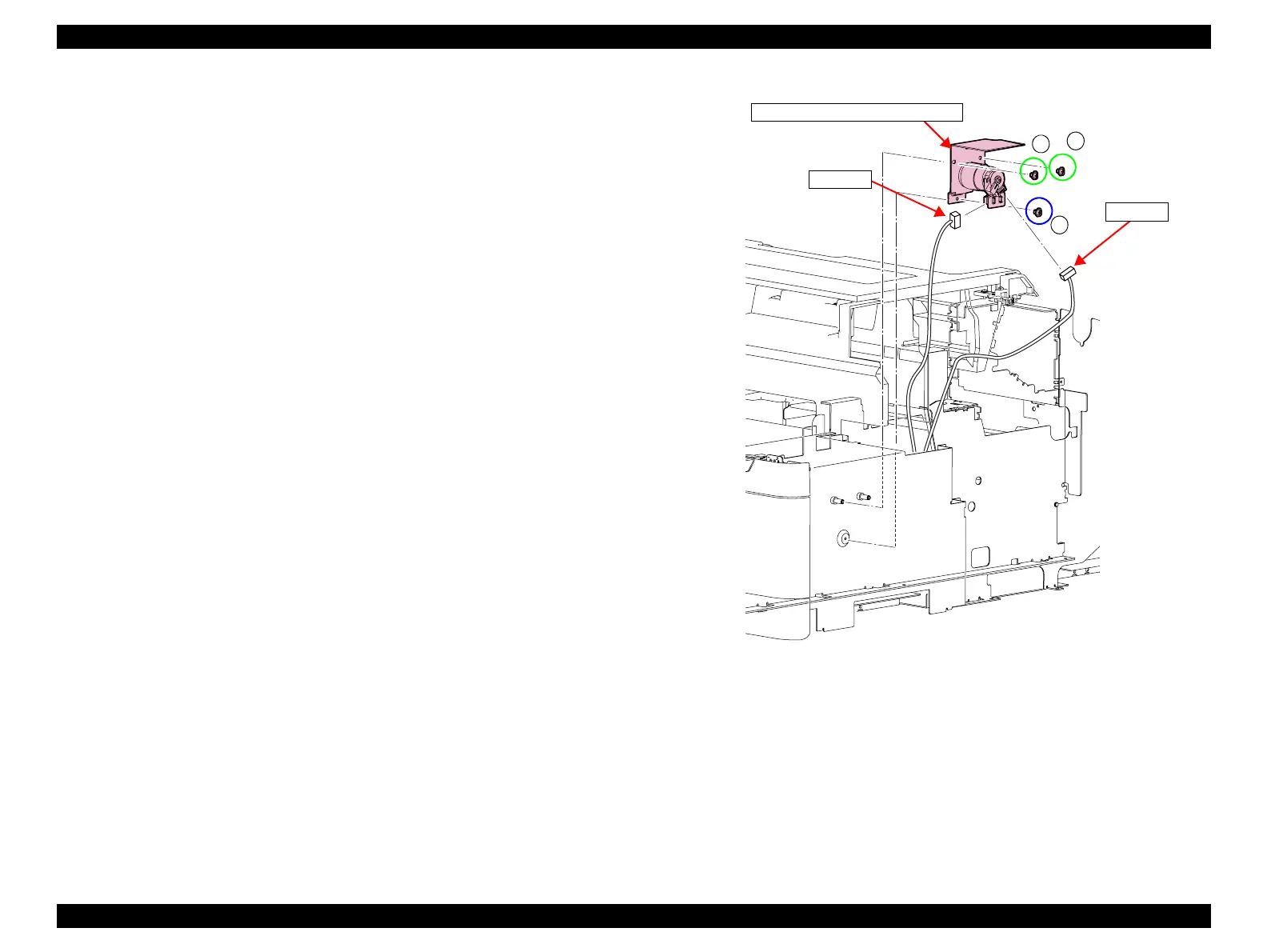

Figure 3-120. Removing the mounting plate
Edge Release Assy + Mounting plate
Connector
Connector
A
A
B
To Next Page
