Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
ADJUSTMENT Head Related Checks and Adjustments 336
Confidential
4.11.4 CR & PF Direction Head Slant Adjustment
4.11.4.1 CR Direction Head Slant Adjustment
PAPER USED
 Size: 16 inches
 Type: Premium Glossy Photo Paper (250)
EXECUTION MODE
Normal Mode
PROCEDURE
1. Turn the printer ON.
2. Start the Service Program and select CR & PF Direction Head Slant
Adjustment.
3. Select CR Direction Slant Check Pattern Print, and click [Run].
The adjustment pattern will be printed.
4. Check the visual check blocks in the adjustment pattern.
Check if lines of magenta and cyan are in line. If they are in line, finish the
adjustment. If not, follow the steps below to carry out the adjustment.

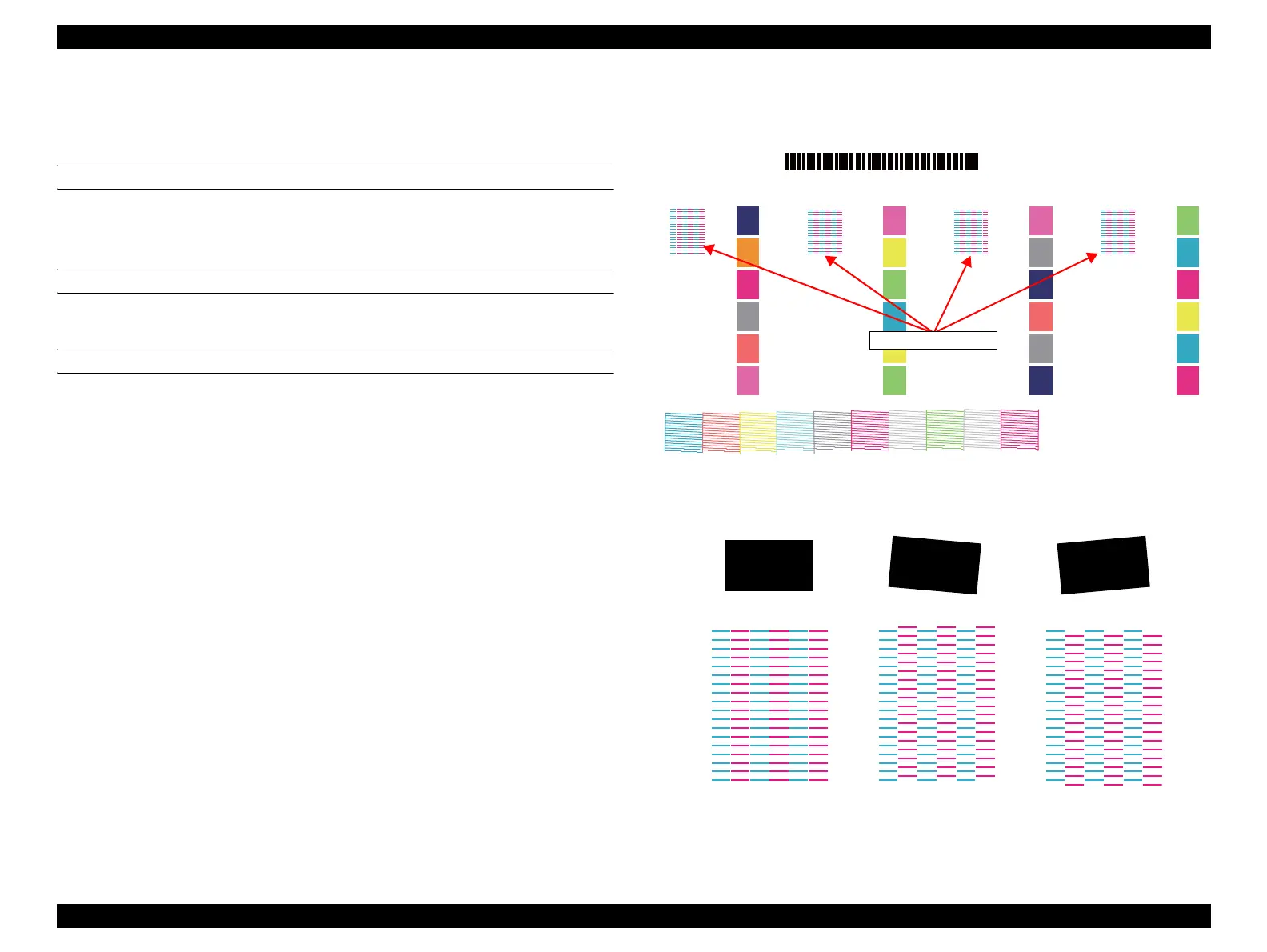

Figure 4-42. Adjustment Pattern
Figure 4-43. Determination of Visual Check Pattern
Model Name : Epson Stylus Pro XXXX ,F/W Version : XXXXXXX
M/C No. : XXXXXXXXXXXXXXXXX ,RTC : XXXXXXXXXXXX ,Bk : Xx
Head-ID : XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
USB-ID : XXXXXXXXXXXXXXXXXX
Visual Check Blocks
NGOK NG
Print
head
Print
head
Print
head
