Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 163
Confidential

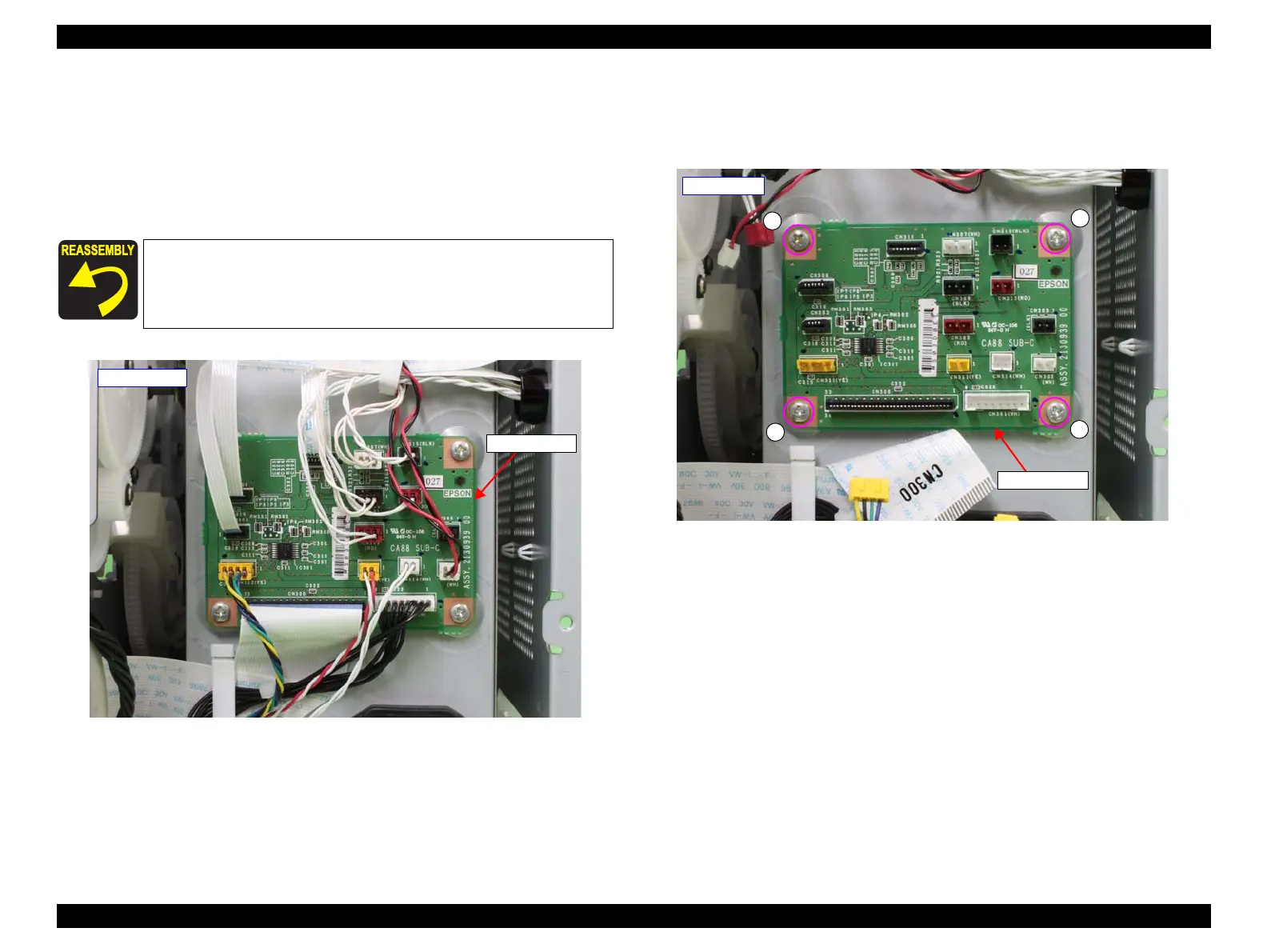

3.4.3.7 SUB-C Board
1. Remove the Front Cover. (p142)
2. Remove the Left Cover. (p137)
3. Remove the Rear Cover. (p144)
4. Disconnect all the connectors and FFCs on the SUB-C Board.
Figure 3-69. Disconnecting the connectors
5. Remove the four screws that secure the SUB-C Board, and remove the SUB-C
Board.
A) Silver, Phillips, Bind machine screw M3x6: four pieces
Figure 3-70. Removing the SUB-C Board
When installing the SUB-C Board, be sure to refer to Chapter 6
“Appendix” (see p432) and connect the connectors correctly.
SUB-C Board
- Rear right -
SUB-C Board
- Right side -
A
A
A
A
