Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 187
Confidential
9. Remove the two screws that secure the plate, and remove the plate from the
Suction Fan.
C) Silver, Phillips, Round Washer Head S-tite M3x8: two pieces

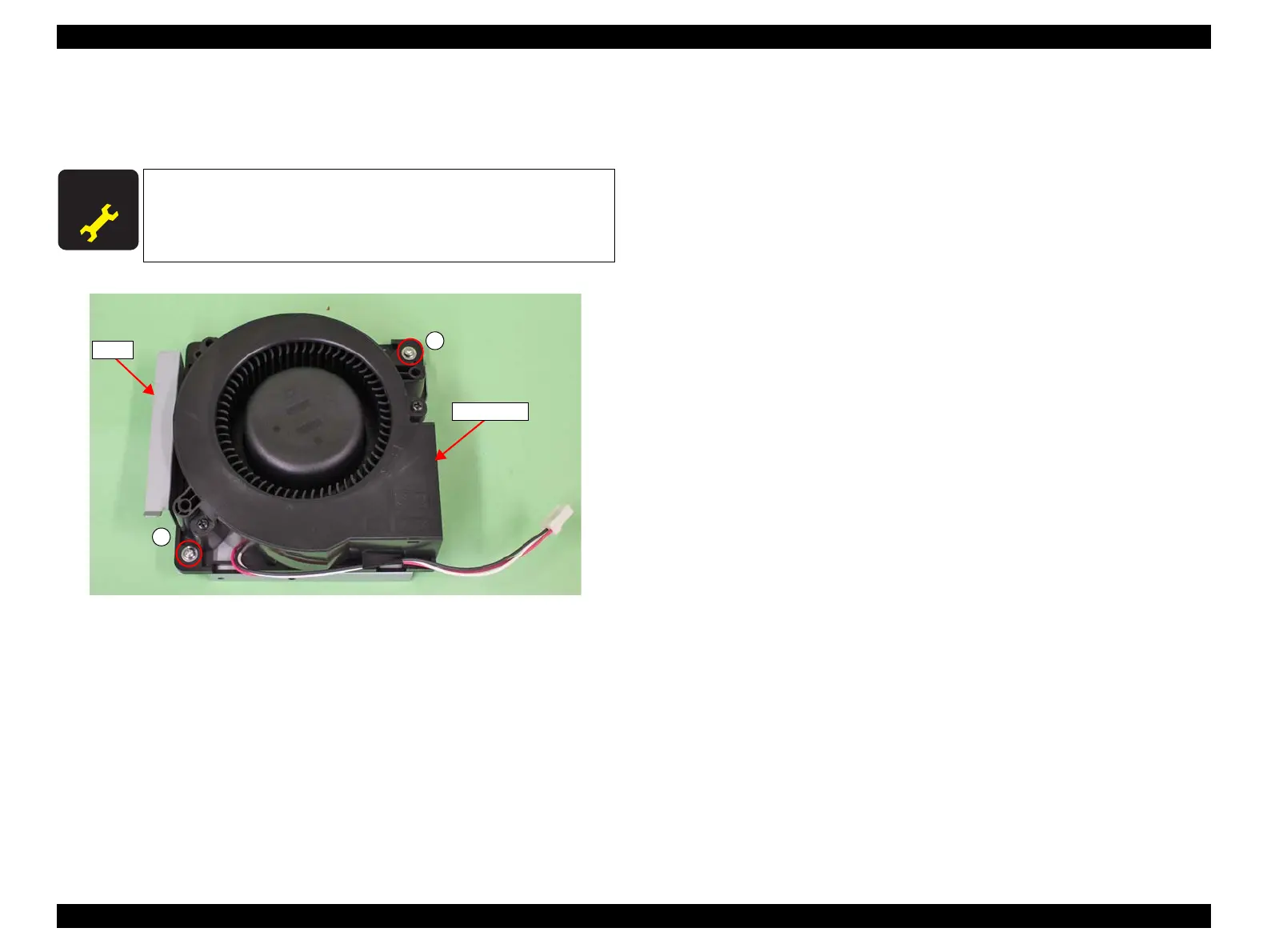

Figure 3-100. Removing the plate
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustment after replacing the Suction Fan.
<Adjustment item>
Suction Check & Adjustment
Suction Fan
B
B
Plate
To Next Page
