Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
APPENDIX Connection Diagram 437
Confidential

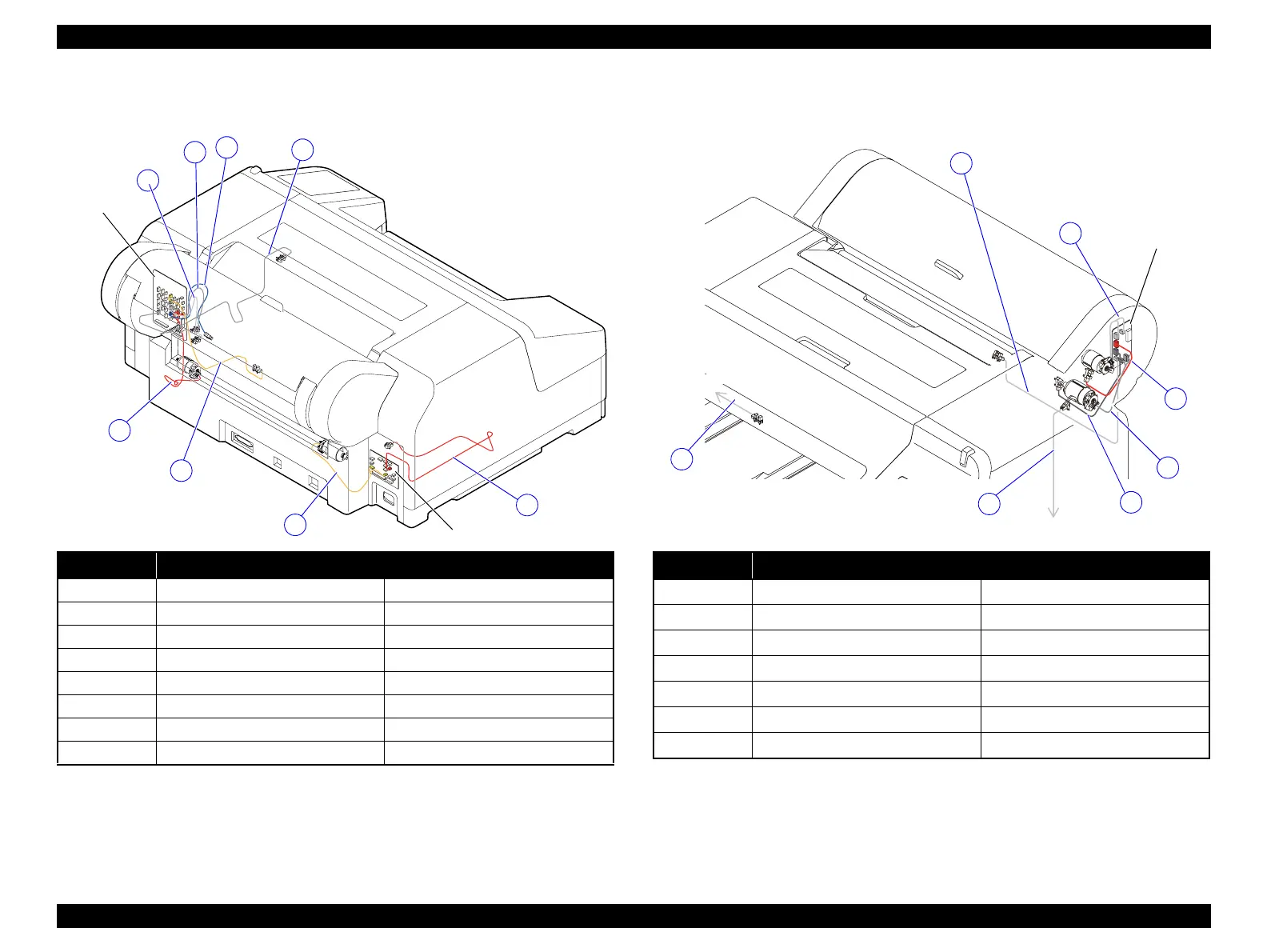

6.2.7 ASF Unit 6.2.8 ROLL Unit
Cable No. Connection
1 Eject Start Wheels Position Sensor SUB-B Board (CN235)
2 Pickup Unit Sensor SUB-B Board (CN215)
3 Assist Roller Sensor SUB-B Board (CN217)
4 Retard Roller Sensor SUB-B Board (CN216)
5 ASF Sub Motor Assy SUB-B Board (CN213/CN214)
6 Paper Empty Sensor SUB-B Board (CN221)
7 ASF Motor Assy SUB-C Board (CN311/CN312)
8 Paper Cassette Sensor SUB-C Board (CN313)
1
3
2
4
5
6
7
8
SUB-B Board
SUB-C Board
Cable No. Connection
1
Roll Feeding Motor SUB-D Board (CN601/CN602)
2
Roll Sensor SUB-D Board (CN605)
3
Roll Eject Support Sensor SUB-C Board (CN308)
4
Roll Unit Sensor SUB-B Board (CN227)
5
Roll Unit Sensor SUB-D Board (CN606)
6
ATC Motor SUB-D Board (CN603/CN604)
7
Roll Lock Sensor SUB-D Board (CN607)
1
2
3
4
5
6
7
to SUB-B Board
to SUB-C Board
SUB-D Board
To Next Page
