Epson C11CA88001A1 Service Manual

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 190
Confidential
21. Remove the eight torsion springs from the main body frame.
22. Remove the five screws that secure the “MOUNTING PLATE,PAPER
GUIDE,UPPER”, and remove the “MOUNTING PLATE,PAPER
GUIDE,UPPER”.
D) Silver, Phillips, Round Washer Head S-tite M3x6: five pieces

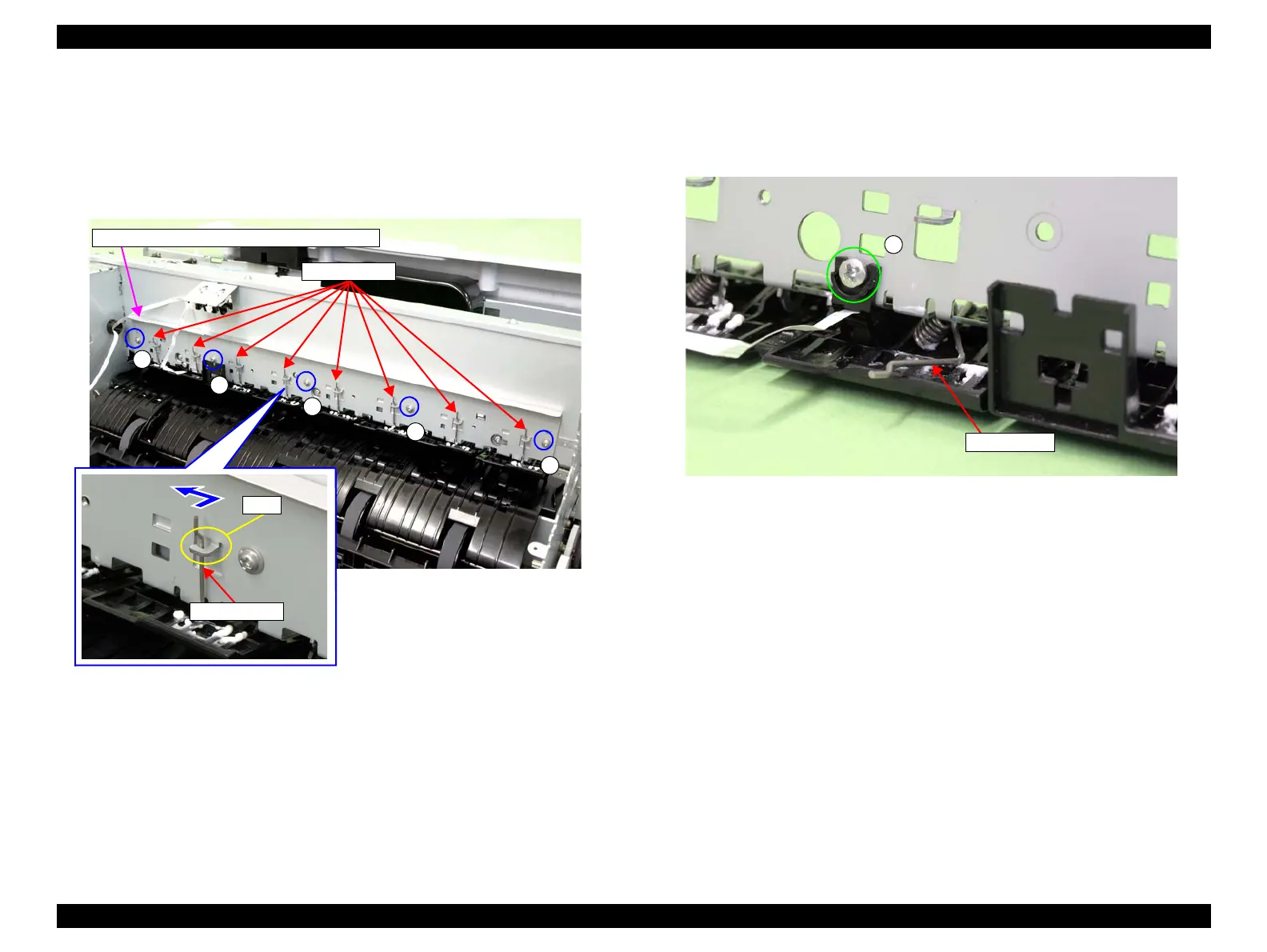

Figure 3-104. Removing the “MOUNTING PLATE,PAPER GUIDE,UPPER”
23. Remove the torsion springs.
24. Remove the screw that secures the “PAPER GUIDE,UPPER”.
E) Silver, Phillips, Bind machine screw M3x4: one piece
Figure 3-105. Removing the “PAPER GUIDE,UPPER”
D
D
D
D
D
Torsion springs
“MOUNTING PLATE,PAPER GUIDE,UPPER”
Hook
Torsion spring
Torsion spring
E
