Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 273
Confidential
8. Remove the two screws that secure the tile guide.
A) Silver, Phillips, Round Washer Head S-tite M3x8: two pieces

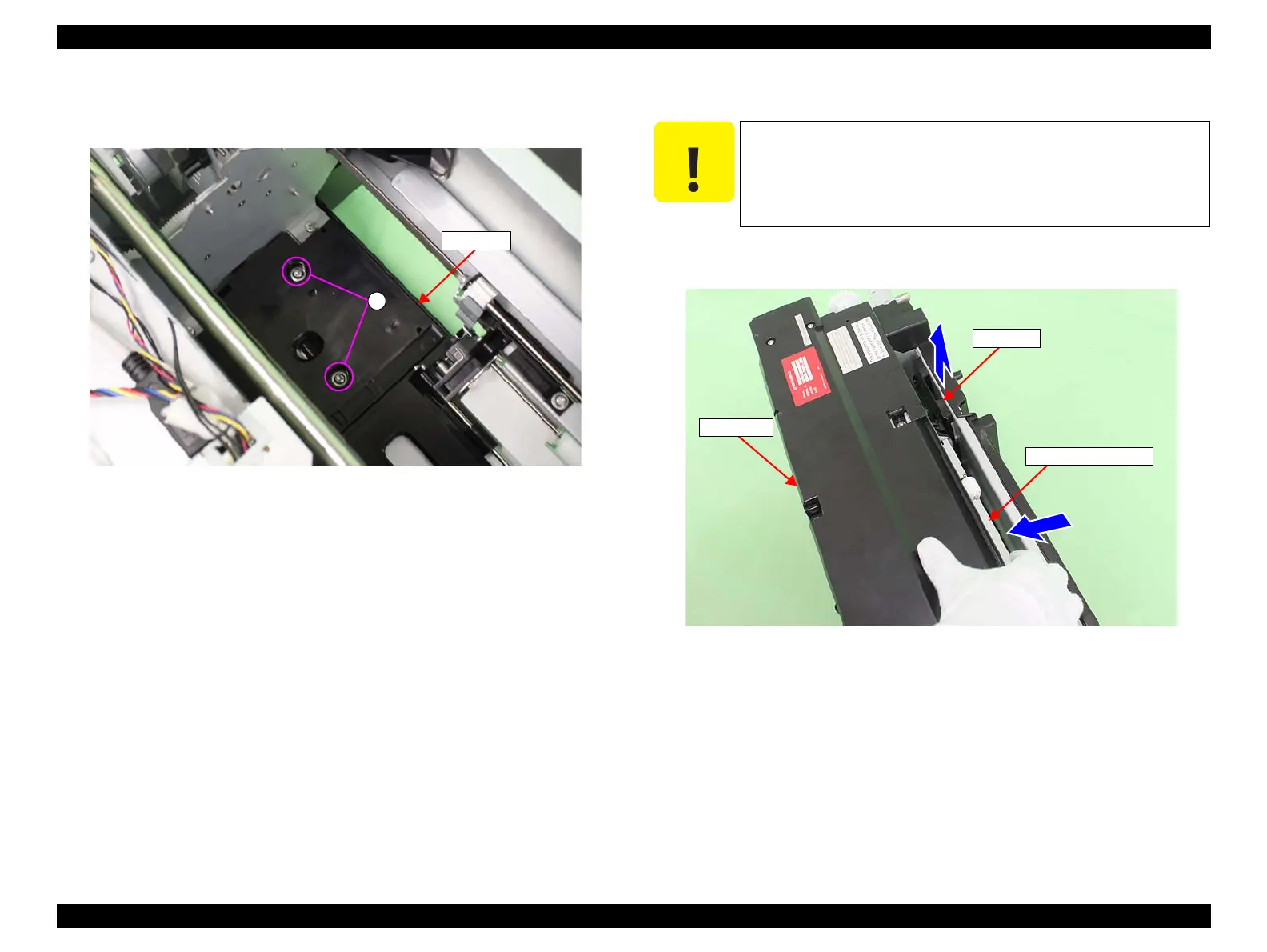

Figure 3-216. Removing the screws
9. Raise the Mounter so that the Rear Cover comes on the top.
10. While lifting the paper pressing plate slightly, remove the tile guide.
Figure 3-217. Removing the tile guide
A
Tile guide
C A U T I O N
When removing the tile guide, take care in the following.
Remove the tile guide after raising the Mounter so that the
parts attached to the tile guide do not come off.
Since the harness is connected to the tile guide, make sure not
to pull it away too far from the main unit.
Tile guide
Paper pressing plate
Rear Cover
To Next Page
