Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
ADJUSTMENT Media Feed Related Checks and Adjustments 374
Confidential
7. Adjust it by the value of the patches selected from the top and the bottom.

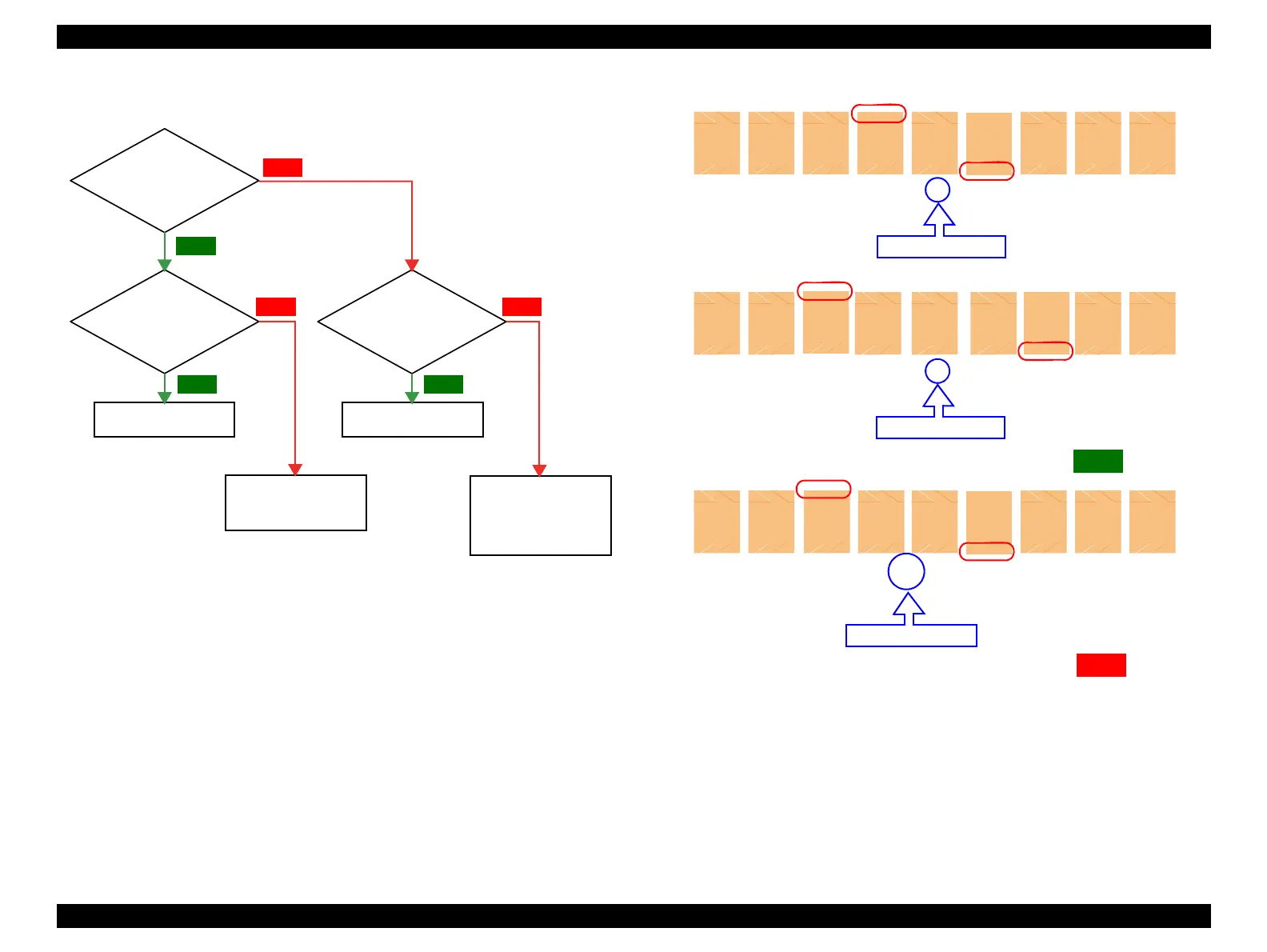

Figure 4-83. Selecting patches 2
8. Click [Write]. Return to Step 4.
9. Click [Finish].
10. Turn the printer OFF to complete the adjustment.
The patches selected
from the top and the
bottom are the
same?
The value of the
selected patch is 0?
The center value of the
patches selected from the
top and the bottom is 0?
See Figure 4-83.
Go to Step 9
Go to Step 9
Input the value of the
selected patch to the
Service Program and
go to Step 8
Input the center value of
the patches selected from
the top and the bottom to
the Service Program and
go to Step 8
YES
YES YES
NO
NO
NO
-8 (-7) -6 (-5) -4 (-3) -2 (-1) 0 (1) 2 (3) 4 (5) 6 (7) 8
-8 (-7) -6 (-5) -4 (-3) -2 (-1) 0 (1) 2 (3) 4 (5) 6 (7) 8
-8 (-7) -6 (-5) -4 (-3) -2 (-1) 0 (1) 2 (3) 4 (5) 6 (7) 8
Center value is 0
Center value is 0
Center value is -1
YES
In above case, go to
NO
In above case, go to
To Next Page
