Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
ADJUSTMENT Media Feed Related Checks and Adjustments 382
Confidential
7. Remove the Cutter Unit. (P. 228)
8. Loosen the screw that secures the pulley of the Cutter Unit.
9. Tighten the screw while pulling the belt with whole pulley.
10. Install the Cutter Unit. (P. 228)
Return to Step 3.

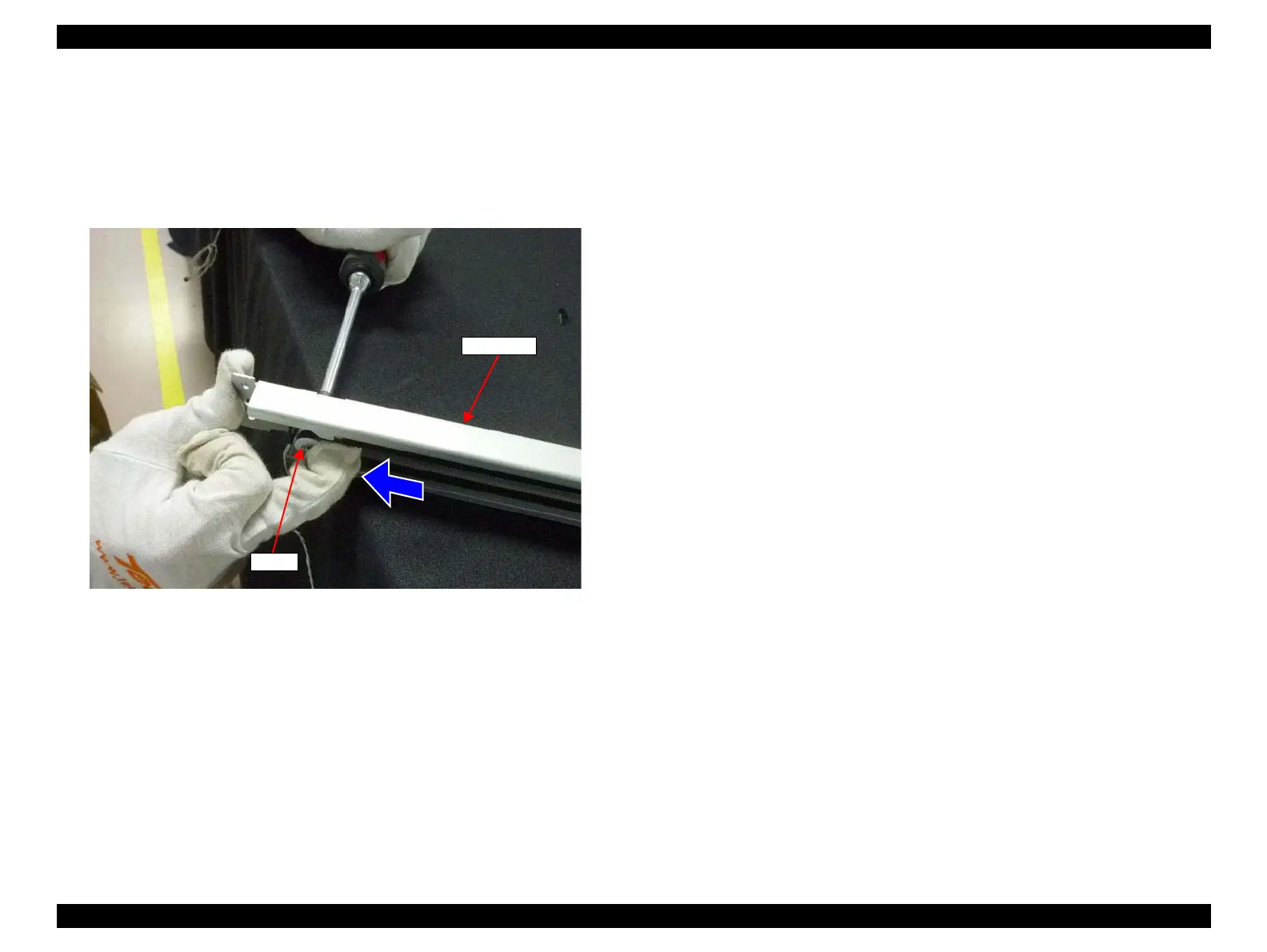

Figure 4-91. Cutter Belt Tension Adjustment
11. Click [Finish].
12. Turn the printer OFF and finish the adjustment.
Cutter Unit
Pulley
To Next Page
