Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
MAINTENANCE Lubrication 430
Confidential

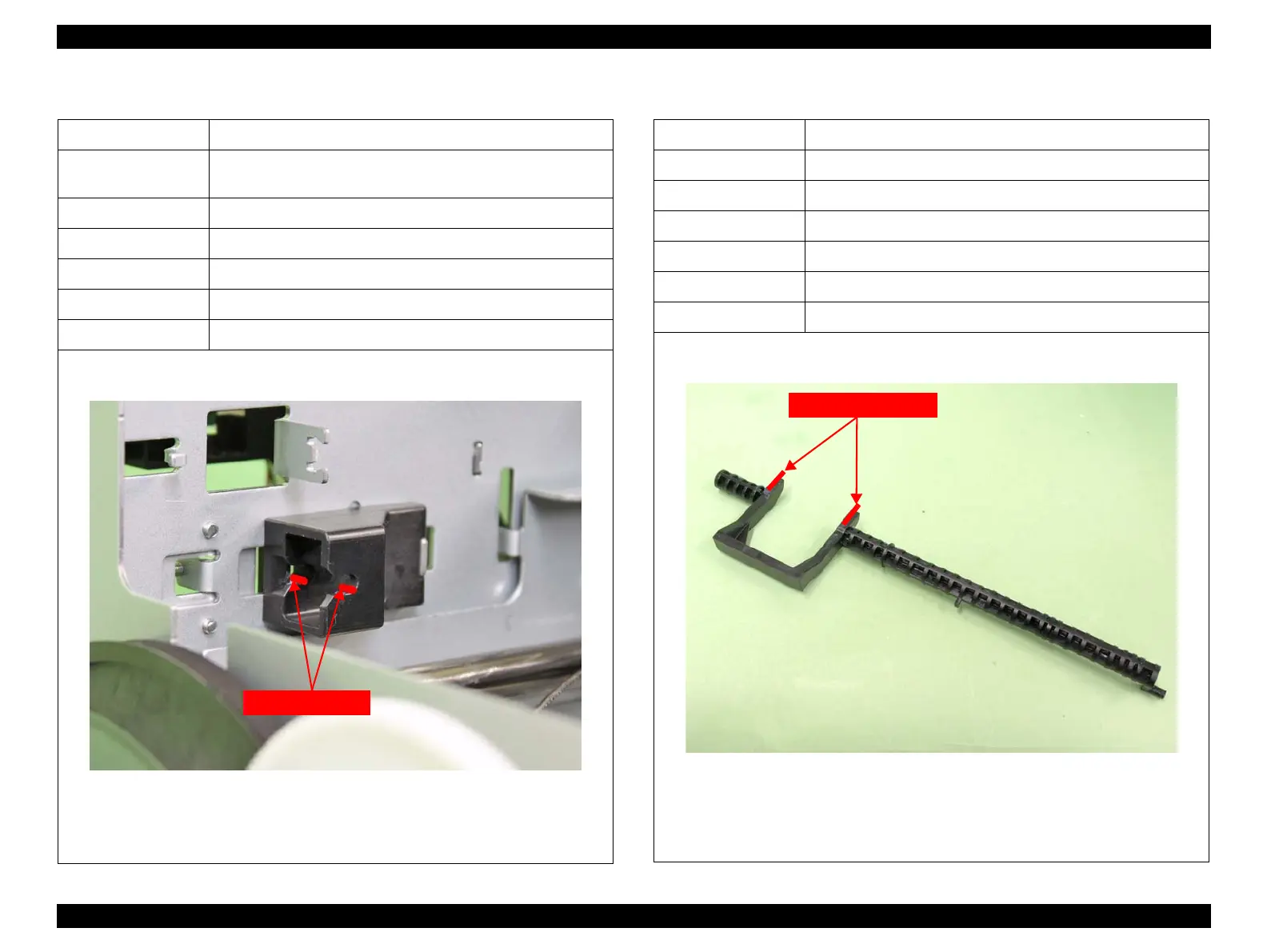

[Lubrication 8] [Lubrication 9]
\
Part Name PULLEY, DRIVEN UNIT
Lubrication Point
Bearings on HOLDER, PULLEY, CR where they contact with the
shaft of PUSH, PULLEY, DRIVEN
Lubricants (Part Code) Grease G-71 (1304682)
Amount φ 2 x 2 mm x 2 points
Lubrication Tool φ 2 mm injector
Lubrication Manner Apply the specified amount with an injector.
Note ---
Lubrication Points
Part Name PAPER GUIDE, LOWER UNIT
Lubrication Point Two hooks of Shaft Retard Reset
Lubricants (Part Code) Grease G-71 (1304682)
Amount φ 2 x 3 mm x 2 points
Lubrication Tool φ 2 mm injector
Lubrication Manner Apply the specified amount with an injector.
Note ---
Lubrication Points
To Next Page
