5.5 Settings on the Waveform Display Screen (REC)
────────────────────────────────────────────────────
1.
2.
3.
4.
5.
6.
7.
Setting items Selection Explanation
1. Function
MEM, REC, RMS,
REC&MEM, FFT
Select function.
2. Trigger mode
SINGLE, REPEAT
Select trigger mode.
3. Analog trigger
OFF, LEVEL, OUT, IN,
V-DROP, CYCLE
Set the analog trigger.
4. Time axis range
20 ms/DIV to 1 h/DIV
16 steps
Set the speed for inputting and
storing the waveform of the input
signal.
Time axis range setting expresses
the time for 1 DIV.
5. Compression along
the time axis
×1to×1/500
When the time axis is
20 to 50 ms/DIV, the
waveforms are
compressed and
displayed during
measurement.
By compressing the waveform, an
entire change can be promptly
apprehended.
6. Recording length
memory capacity:
8M words
SELECT:
25 DIV to CONT
ARBITRARY:
1to2000DIV
The length of recording for one
measurement operation (the number
of DIV) can be set.
7. Cursor
Measurement
OFF, , , ＋
The A
･
B cursors can be used.
I
nput channel settings
･
Analog input
･
Logic input
･ X, Y axis
(X-Y format)
Enables the measurement
conditions for each channel on the
display screen to be set or changed.
See Section 9.10.
Input level monitor
function
Press the
LEVEL MONI
key.
See Section 11.5.
VIEW function
Press the
VIEW
key.
See Section 11.6.
5.5 Settings on the Waveform Display Screen (REC)

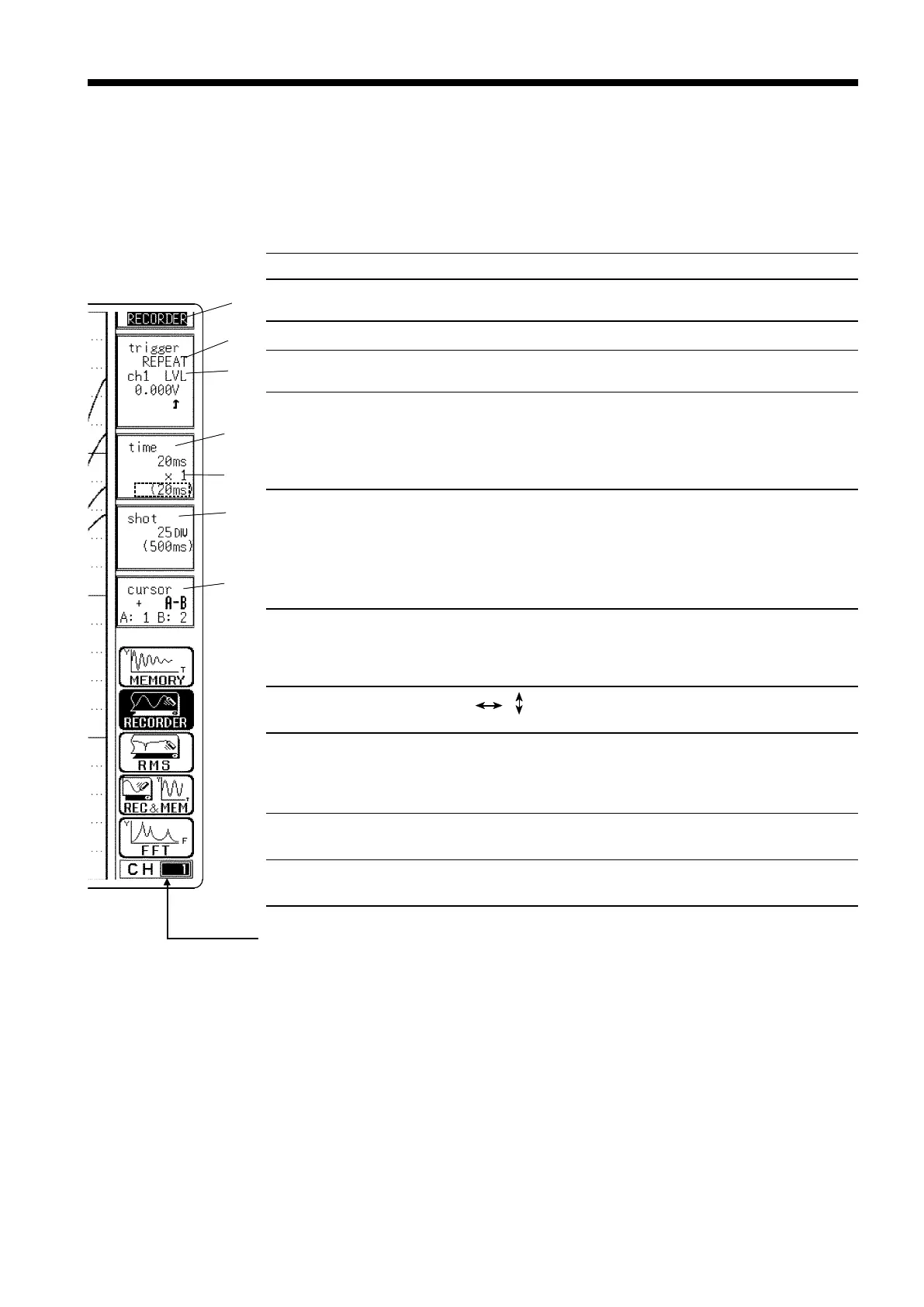

Explains the setting items on the Waveform display screen.
For details on setting, refer to Section 5.3.
When want to use the Jog/Shuttle control, press the
VALUE
select key.
(The selection window is not displayed.)
Channels that may be changed with the
RANGE knob (measurement range)
and POSITION
knob (zero position).This channel display is selected with
Channel-select keys CH1 to CH16.
Changing the set channel in the CHANNEL or CH.SET screens modifies the
setting accordingly.
