7.3 STATUS Settings (REC&MEM)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
7.3.1 Setting the Function Mode
Function
display
Meaning
:
Memory recorder function
:
Recorder function
:
RMS recorder function
:
Recorder & Memory recorder function
:
FFT function
Low-speed Recorder recording
High-speed Memory recording
The 8841/42 has five function modes. Select the Recorder and Memory
functions.
Procedure
Screen: STATUS1, CHANNEL, Waveform display, TRIGGER
1. Use the Menu keys to display the desired screen.
2. Move the flashing cursor to the top position.
3. Select the
REC&MEM
function key display.

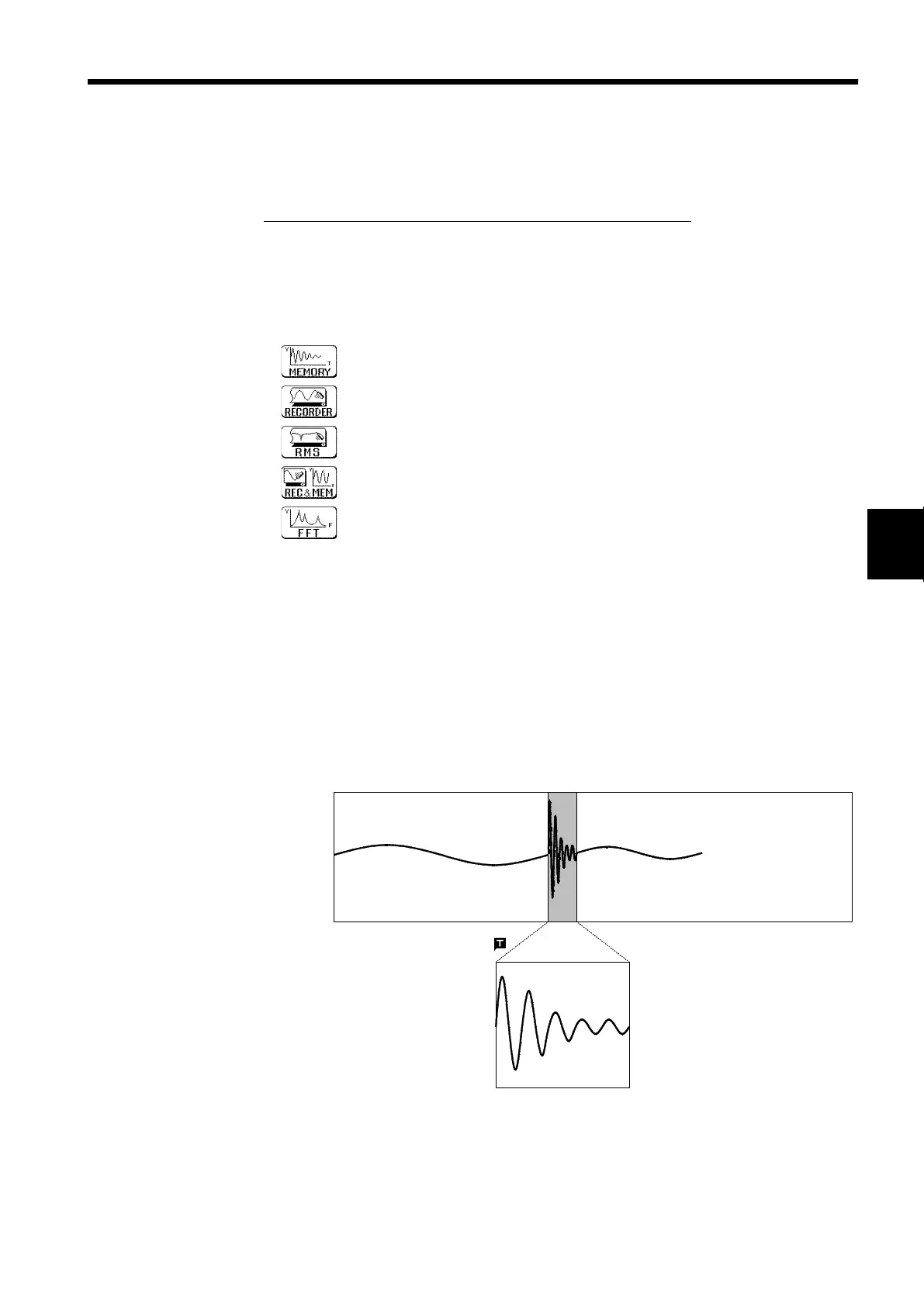

Recorder & Memory Function Operation
During real-time signal recording with the recorder function, if an abnormal
phenomena latches the trigger, that period is recorded simultaneously by the
high-speed sampling memory recorder. Normal recorder operation is not
suspended during memory recording, so the real-time recording continues
through the abnormal phenomena.
