11.3 Magnification/compression Ratio Along the Time Axis
────────────────────────────────────────────────────
s93
Flashing cursor
Function
display
Meaning
:
Increases in number.
:
Decreases in number.
Function Magnification/Compression ratio
MEM, memory
waveform in
REC&MEM
×
10,
×
5,
×
2,
×
1,
×
1/2,
×
1/5,
×
1/10,
×
1/20,
×
1/50,
×
1/100,
×
1/200,
×
1/500,
×
1/1000,
×
1/2000,
×
1/5000,
×
1/10000
REC, RMS,
recorder
waveform in
REC&MEM
×
1,
×
1/2,
×
1/5,
×
1/10,
×
1/20,
×
1/50,
×
1/100,
×
1/200,
×
1/500
NOTE
11.3 Magnification/compression Ratio Along the Time Axis
・
The magnification/compression ratio along the time axis can be set.
・
By magnifying the waveform, detailed observations can be made. By
compressing the waveform, an entire change can be promptly
apprehended.
・
Magnification/compression of the screen uses the left edge as reference,
regardless of the status of the A
･
B cursor.
・
The magnification/compression factor can be changed also after
measurement is completed.

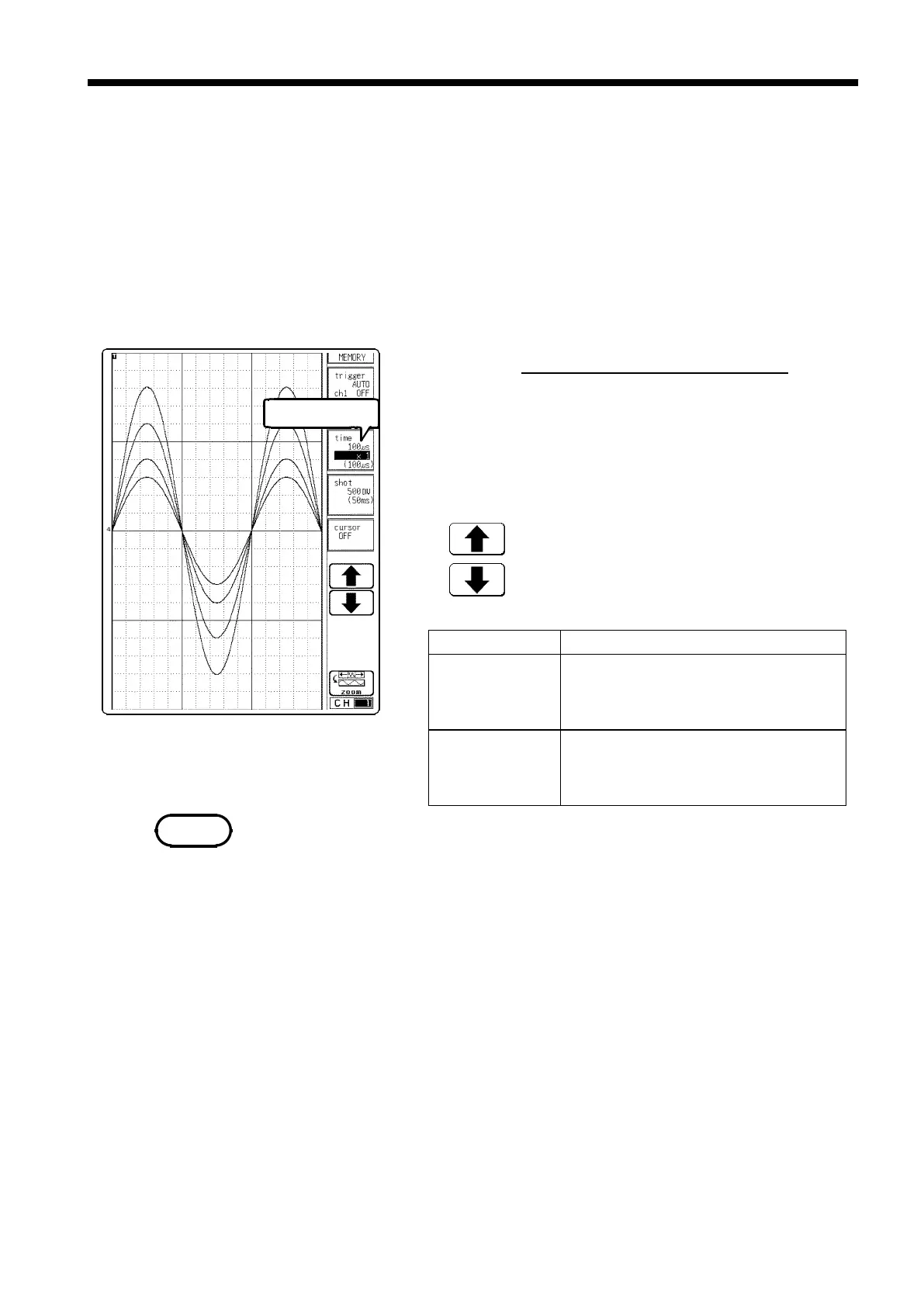

Procedure
Screen: Waveform display, CHANNEL
1. Move the flashing cursor to the position shown in the
figure on the left.
2. Use the function keys or the Jog/Shuttle control to
select the magnification/compression ratio.
Set the magnification or compression ratio along the voltage axis on the
CHANNEL screen or Waveform display screen.
For details, see Section 9.3.5, "Setting the Magnification/Compression Ratio
Along the Voltage Axis".
