9.10 Setting the Waveform Display Screen
────────────────────────────────────────────────────
9.10.3 Direct Channel Setting
s74-1, 2
NOTE
1. Press the DISP key to call the Waveform display
screen.
The channels that can be set currently using the
RANGE
knob (measurement range) and
POSITION
knob (zero position) are displayed at the bottom right
of the screen.
2. Use channel-select keys CH1 to CH16 to select a
channel. Only the channel associated with the input
unit connected to the 8841/8842 can be selected.
3. The zero-position and voltage-axis range of the
channel selected with the POSITION knob and RANGE
knob can be set.
4. The Jog control allows you to display or hide the
waveform, or set the waveform color.
5. To make a setting for other channels, use the channel
select key.
Press any key to exit the direct-channel setting
function.

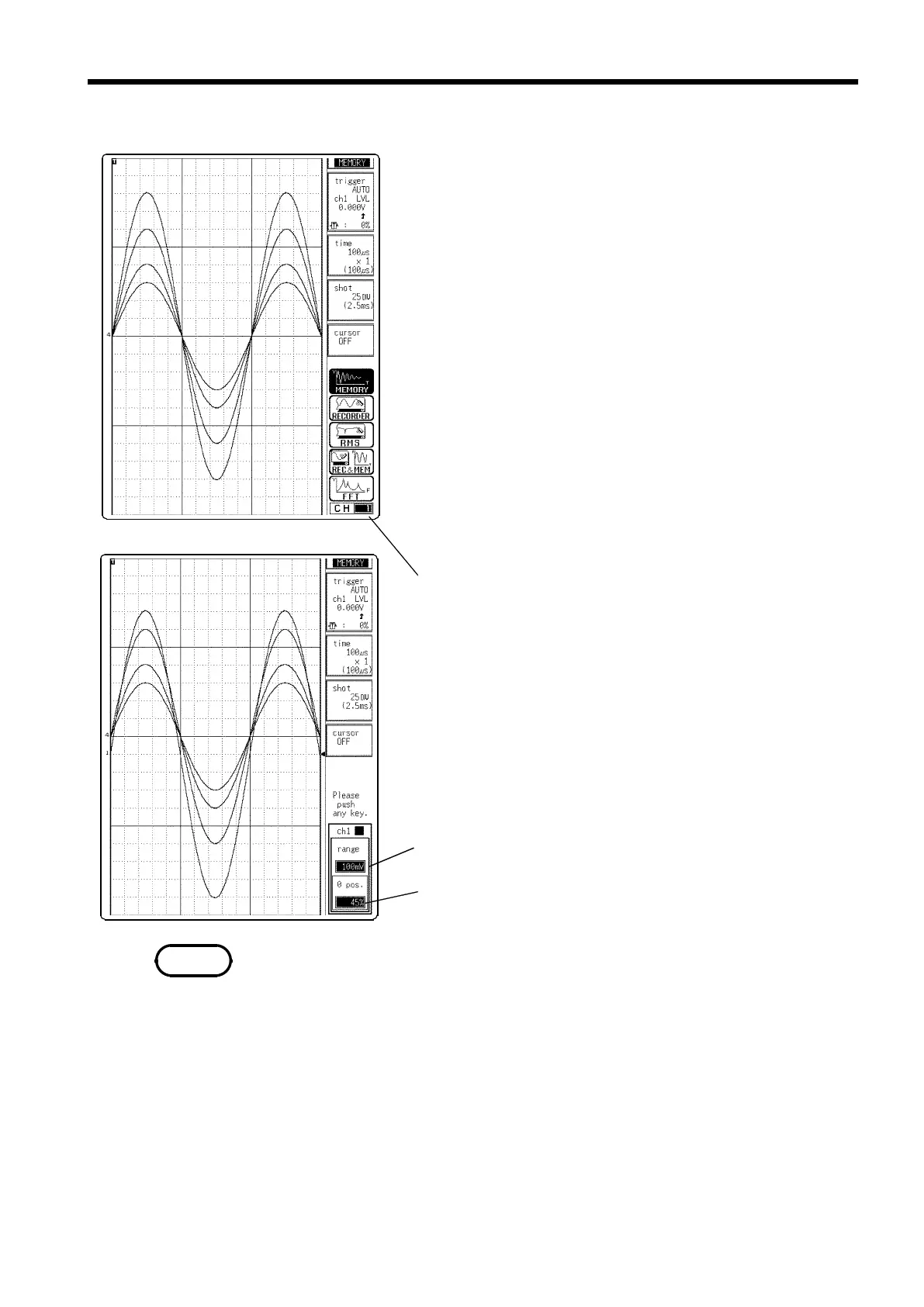

Selected channel is displayed
Setting of the voltage axis range
Setting of the zero position
･ The settings by using the CH.SET key, the following operations cannot be
provided:
Copying channel settings
Variable function: ON/OFF（Input value can be changed）
･ While channel setting can be performed using the CH.SET key, direct channel
setting on the display screen allows channels to be selected and set up. This
direct channel setting is enabled even in the startup process.
