Hioki 8841 - Basic Input Operation; Measurement Start and Stop Operation

33
────────────────────────────────────────────────────
3.1 Basic Key Operation
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A

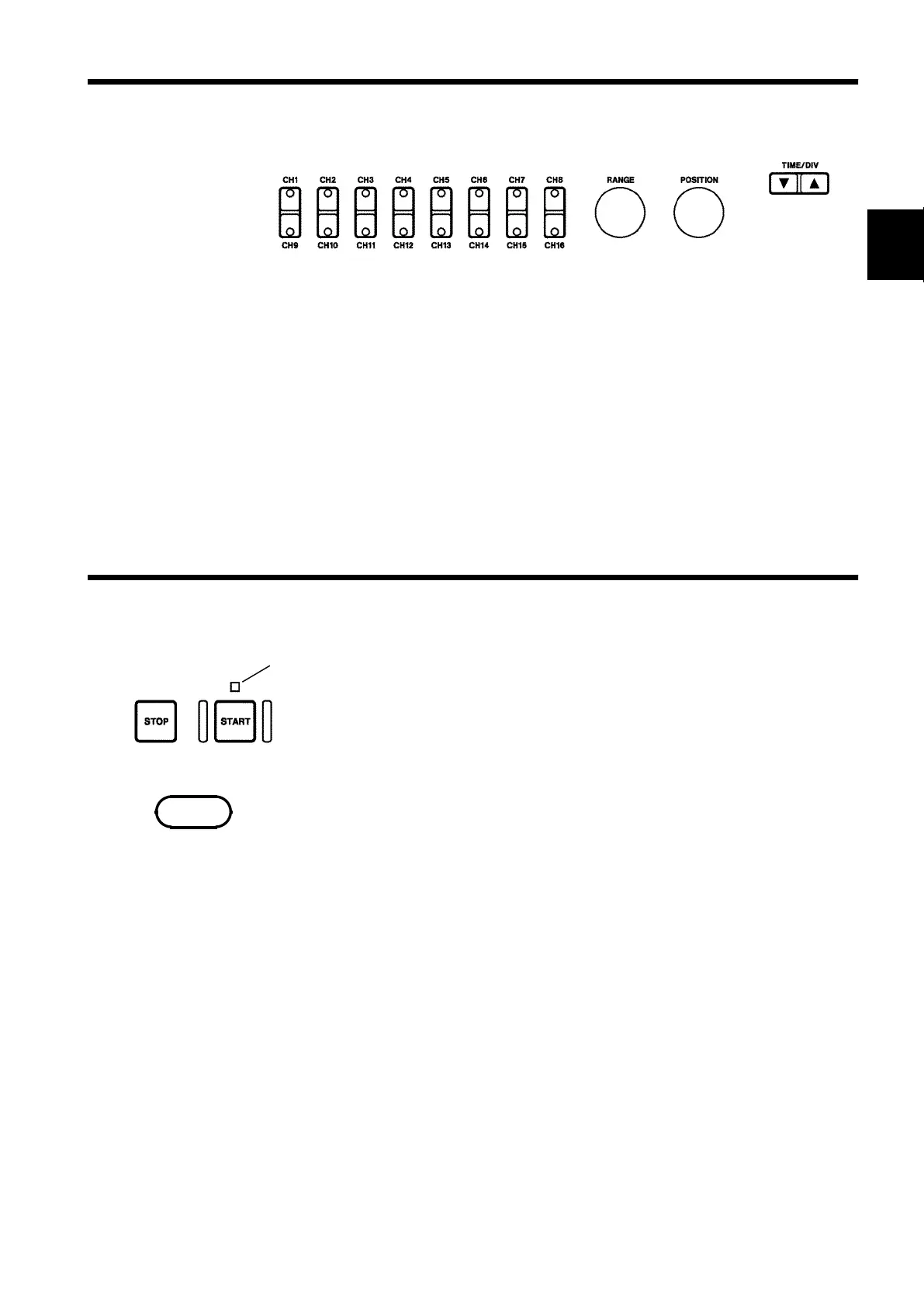

3.1.5 Basic Input Operation
CH1 - CH16
keys
Used to select channels and input values for connected input
units
In the DISPLAY or CHANNEL screen, these keys are used
to select channels or set channels directly by means of the
POSITION
and
RANGE
knobs.
In the value input, these keys are used to set values.
RANGE
knob
Serves to set the measurement range for the channel selected
by the channel select key.
POSITION
knob
Serves to set the zero position for the channel selected by
the channel select key.
TIME/DIV
key
Serves to set the input signal capture speed.
3.1.6 Measurement Start and Stop Operation
START
key
Press the
START
key to initiate measurement or set the unit
to trigger standby.
STOP
key
Press the
STOP
key during measurement and trigger waiting
to stop the measurement.
NOTE
Set the basic settings for analog channels. See Chapter 9.
LED: light during measurement
The measurement start/stop operation is separately determined by each
measurement function. For details, see "Start and Stop Operation," which
explains each measurement function.
