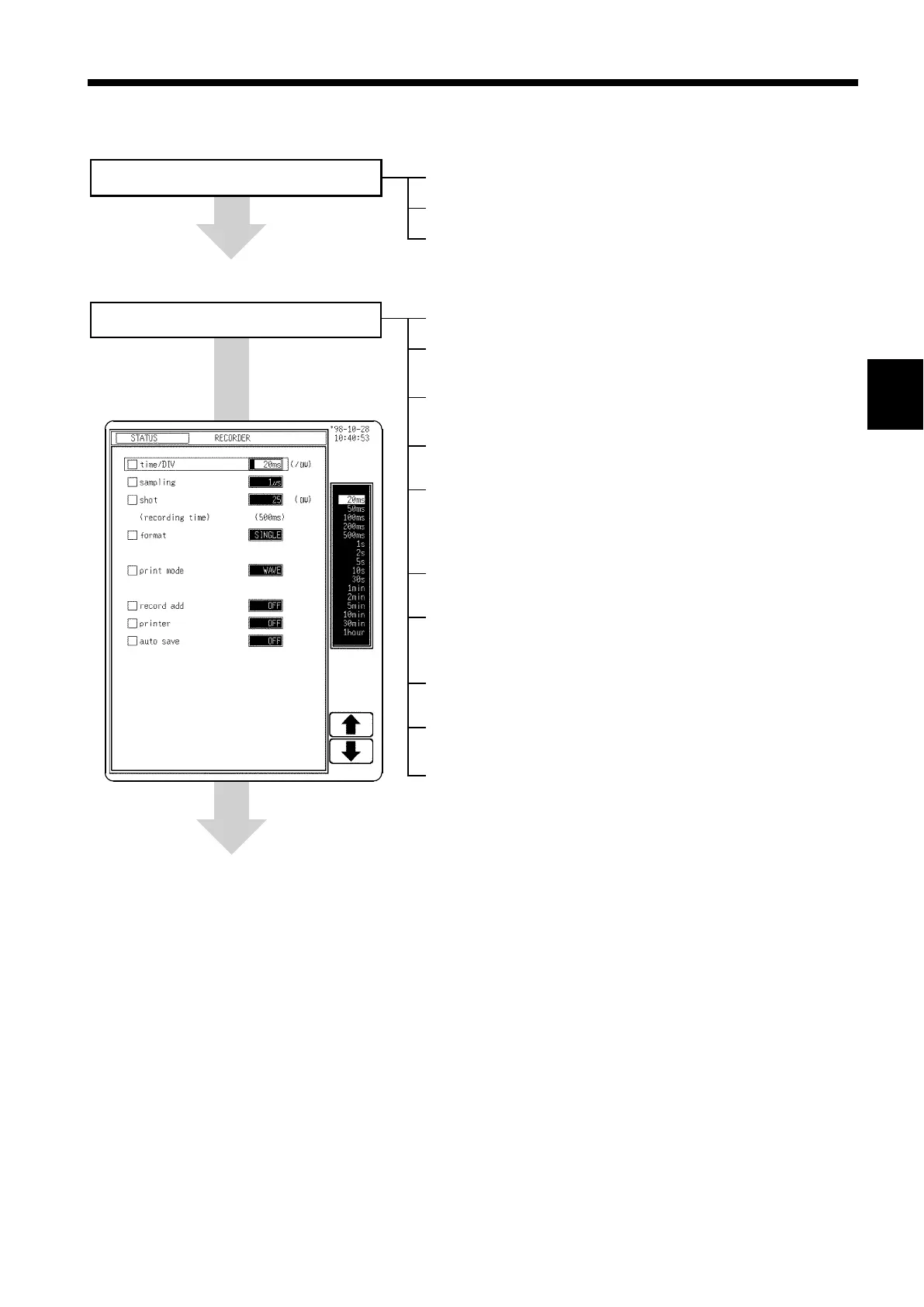

5.2 Operation Sequence (REC)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
See Chapter 2
Settings on the STATUS screen
Press the
STATUS
key to display
the STATUS screen.
Preparation
Basic Settings
Installation of the Unit
Turn on the power
Connect the inputs
Function
Select the recorder function.
Time axis range
Sampling period
Determine the speed with which the
input signal waveform is captured.
Recording length
Determine the length of the data
sample for a single measurement.
Display format
Select the format type for the
waveform display screen.
Print mode
Select the waveform or numerical
value to be output the measured data
Set the print interval (numerical
format)
Additional recording
Set whether additional recording is
required.
Print function
Select whether or not to print out
simultaneously with screen display.
Auto save function
Select whether or not to save the
waveform automatically
Interpolation
Select dot or line in X-Y display
format.
Waveform clear
Select whether or not to clear
waveform in X-Y display format.
See
Section 5.3
