Hioki 8841 - Operation Sequence (MEM)

39
────────────────────────────────────────────────────

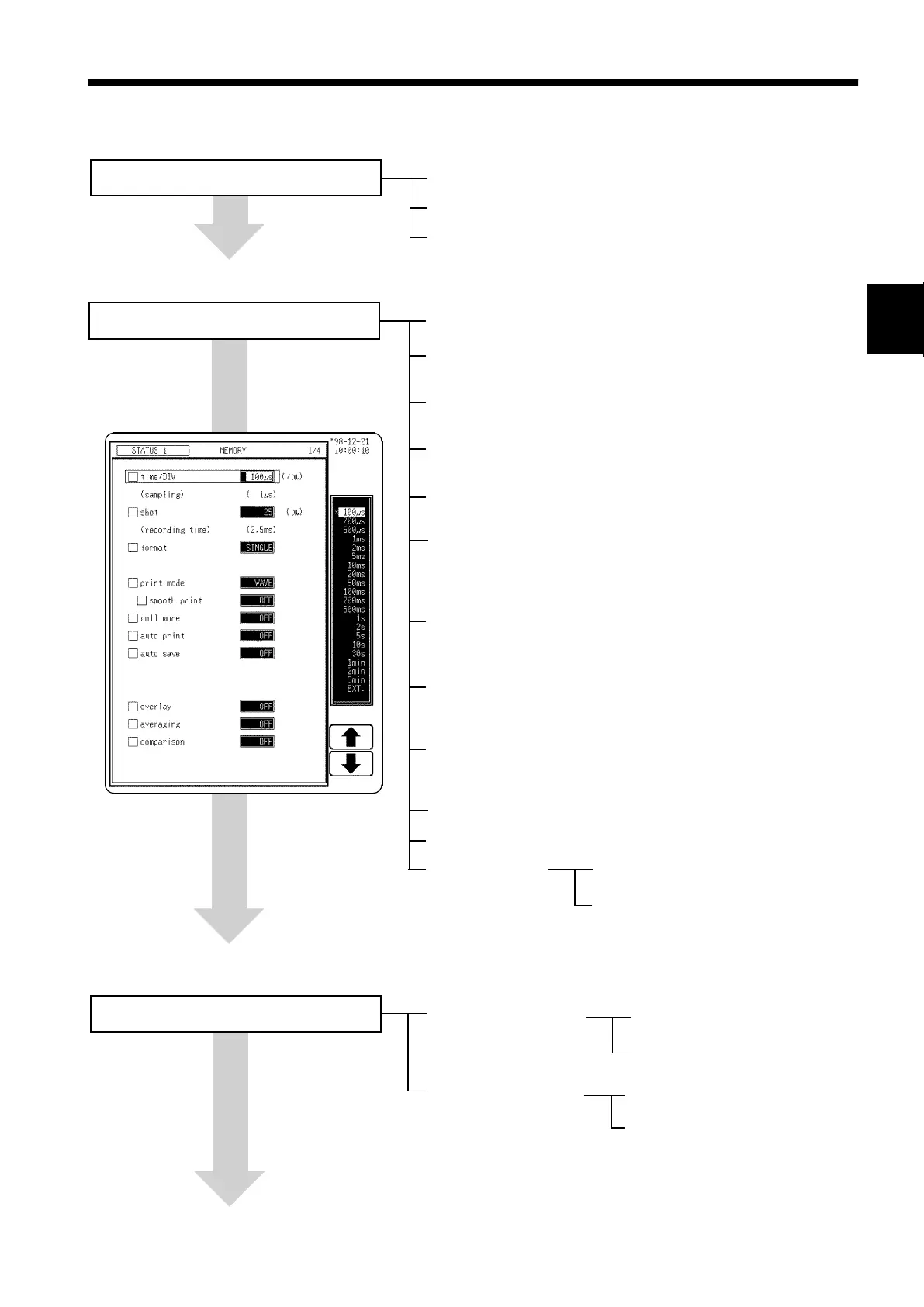

4.2 Operation Sequence (MEM)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
See Chapter 2
Settings on the STATUS1 screen
Press the
STATUS
key to display
the STATUS screen.
Preparation
Basic Settings
Advanced Settings
(Use this function, if necessary.)
Memory segmentation
See Chapter 15
Set the waveform
calculation
See Chapter 16
Settings on the STATUS2 screen
Installation of the Unit
Turn on the power
Connect the inputs
Function
Select the memory recorder function.
Time axis range
Determine the speed with which the
input signal waveform is captured.
Recording length
Determine the length of the data
sample for a single measurement.
Display format
Select the format type for the
waveform display screen.
Interpolation
Interpolation can be set when set the
X-Y graph format.
Print mode
(Waveform/
Numeric print)
Select the format, waveform, or
numerical value should be used to
output measured data and
calculation results.
Roll mode
Select whether or not to display the
waveform at the same time as it is
captured.
Auto print function
Select whether or not to print out the
waveform automatically after it is
captured.
Auto save function
Select whether or not to save the
waveform automatically after it is
captured.
Overlay function
Select whether or not to overlay.
Averaging count
Set the averaging type and count.
Waveform
evaluation
Set the waveform evaluation mode
Set the GO/NG stop mode
Sequential save function
Multi-block function
Parameter calculation
Waveform processing
calculation
See
Section 4.3
s-42-1
4.2 Operation Sequence (MEM)
