11.2 Using the A
･
BCursors
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

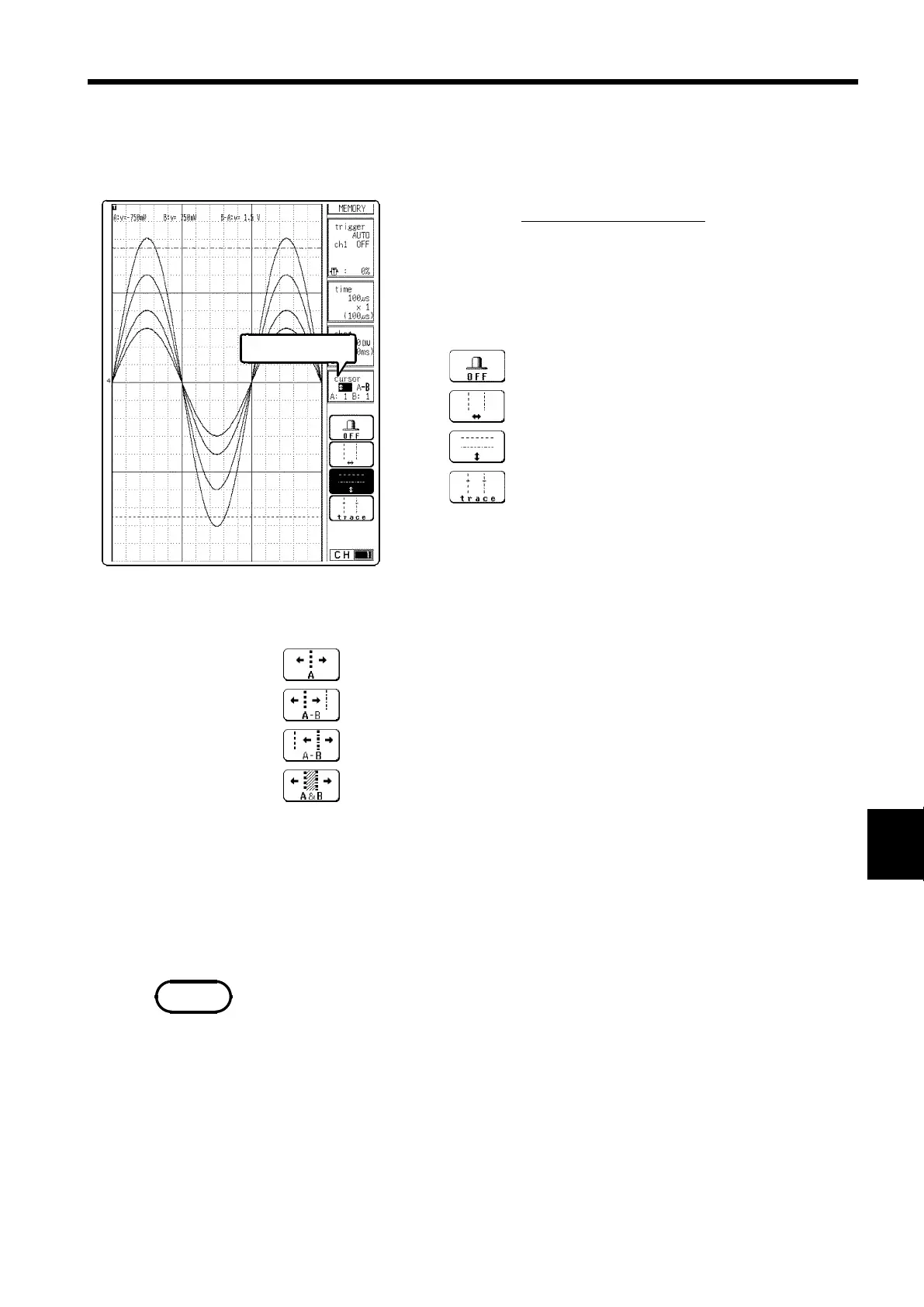

11.2.2 Using the Line Cursors (Horizontal)
s922
Flashing cursor
Function
display Meaning
:
Disable A･Bcursors
:
Line cursor (vertical: t, 1/t)
:
Line cursor (horizontal: v)
:
Trace cursor (the point where the cursor
crosses the waveform)
Function
display
Meaning
:
Use A cursor only
:
Move the A cursor only
:
Move the B cursor only
:
MoveboththeAandBcursors
NOTE
Used to read a voltage value of the specified channel. A
･
B cursor can be
specified a different channel.
Procedure
Screen: Waveform display
1. Move the flashing cursor to the
cursor
item
2. Use the function keys to select the Line cursor
(horizontal).
3. Use the function keys to select the cursor to be moved.
4. The channel setup items for each cursor (A
･
B) are displayed under
"cursor". Move the flashing cursor to set the waveform channels from
which you want to read voltages, using the function keys or the
Jog/Shuttle control (VALUE select key).
5. Press the A
･
B CSR select key.
6. Rotate the Jog/Shuttle control to move the cursor.
･
When the A
･
B CSR select key is used to activate the A
･
B cursor mode, the
trace cursor (X-Y CONT: line cursor) can be used, also if it was set to OFF.
･
Only channels for which a waveform is being displayed can be specified.
･
By specifying a different channel for the A and B cursors, a potential
difference between the waveforms in the respective channels can be
determined.
