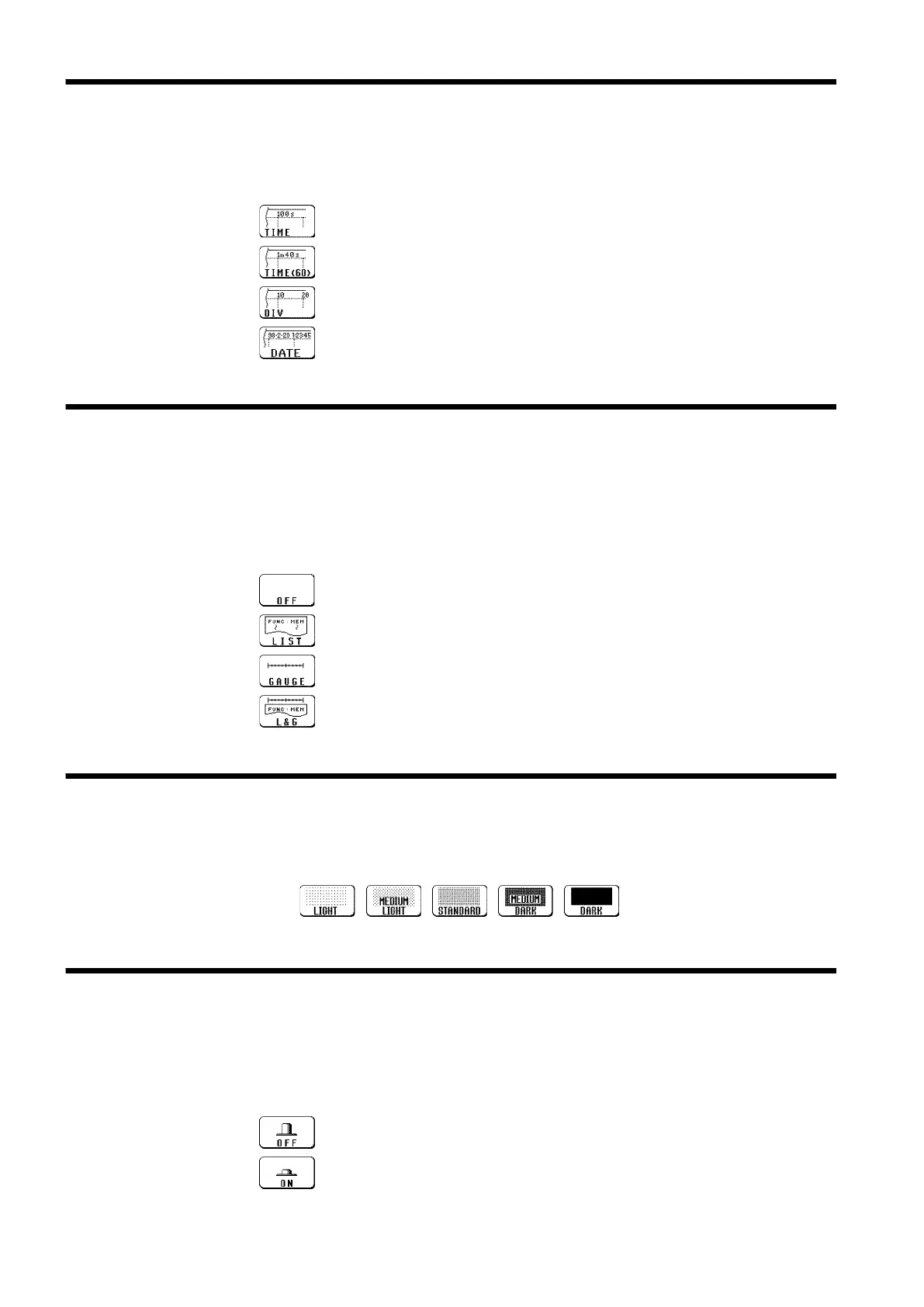

12.2 SET UP Screen (SYSTEM 1)
────────────────────────────────────────────────────
12.2.9 Time Value
Function
display
Meaning
:
Displays the time from the trigger point (unit:
fixed)
:
Displays the time from the trigger point (unit: base
60).
:
Displays the number of DIV from trigger point.
:
Displays the time when a waveform is captured.
12.2.10 List & Gauge
Function
display Meaning
:
No gauges or listing
:
Print listing only
:
Print gauges only
:
Print both gauges and listing
12.2.11 Printer Density
12.2.12 Upper-lower Values Print
Function
display
Meaning
:
Upper-lower print is not used.
:
Upper-lower print is used.
The time from the trigger point and other information can be printed.
When a waveform is printed out (except for screen hard copies), the gauge
can be printed out at the beginning, and a listing can be printed out at the
end.
Serves to set the printer density. Select the setting which yields the most
easy to read printout.
gc-pr1,2, 3, 4, 5
In waveform printing, the upper and lower values of each channel are printed
first. When the scaling function is being used, the scaled values are printed.
