12.2 SET UP Screen (SYSTEM 1)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

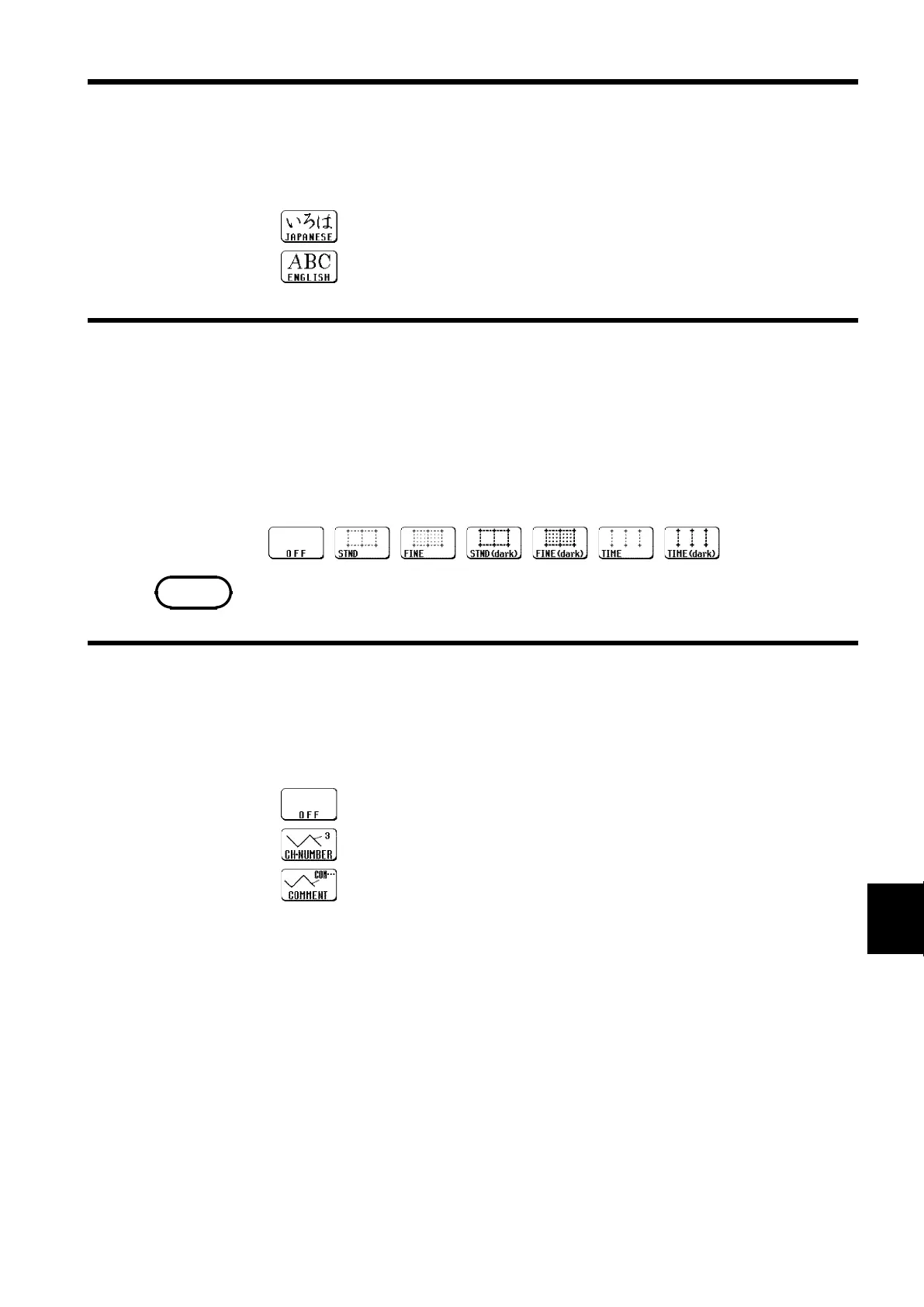

12.2.6 Display Language
Function
display
Meaning
:
Displays in Japanese.
:
Displays in English.
12.2.7 Grid Type
gc-grid1, 2, 3,
4, 5, 6
NOTE
12.2.8 Channel Marker
Function
display
Meaning
:
Channel numbers will not be printed for the
waveform on the recording paper.
:
Channel numbers will be printed for the
waveform on the recording paper.
:
Comments will be printed for the waveform on
the recording paper.
Serves to set the display language.
・Selects the type of grid shown on the Waveform display screen and drawn
on the recording paper.
・On the Waveform display screen, the standard and fine grids are defined as
the standard, and the standard (dark) and fine (dark) grids are defined as the
standard (dark) grids.
・"Time" and "Time (dark)" can be set only during printing.
In printing in the X-Y screen format or FFT function, the standard time axis
and the standard time axis (dark) are applied.
The channel numbers or the comments are printed together with the
waveform on the recording paper.
