Hioki 8841 - Channel Guide Function

179
────────────────────────────────────────────────────

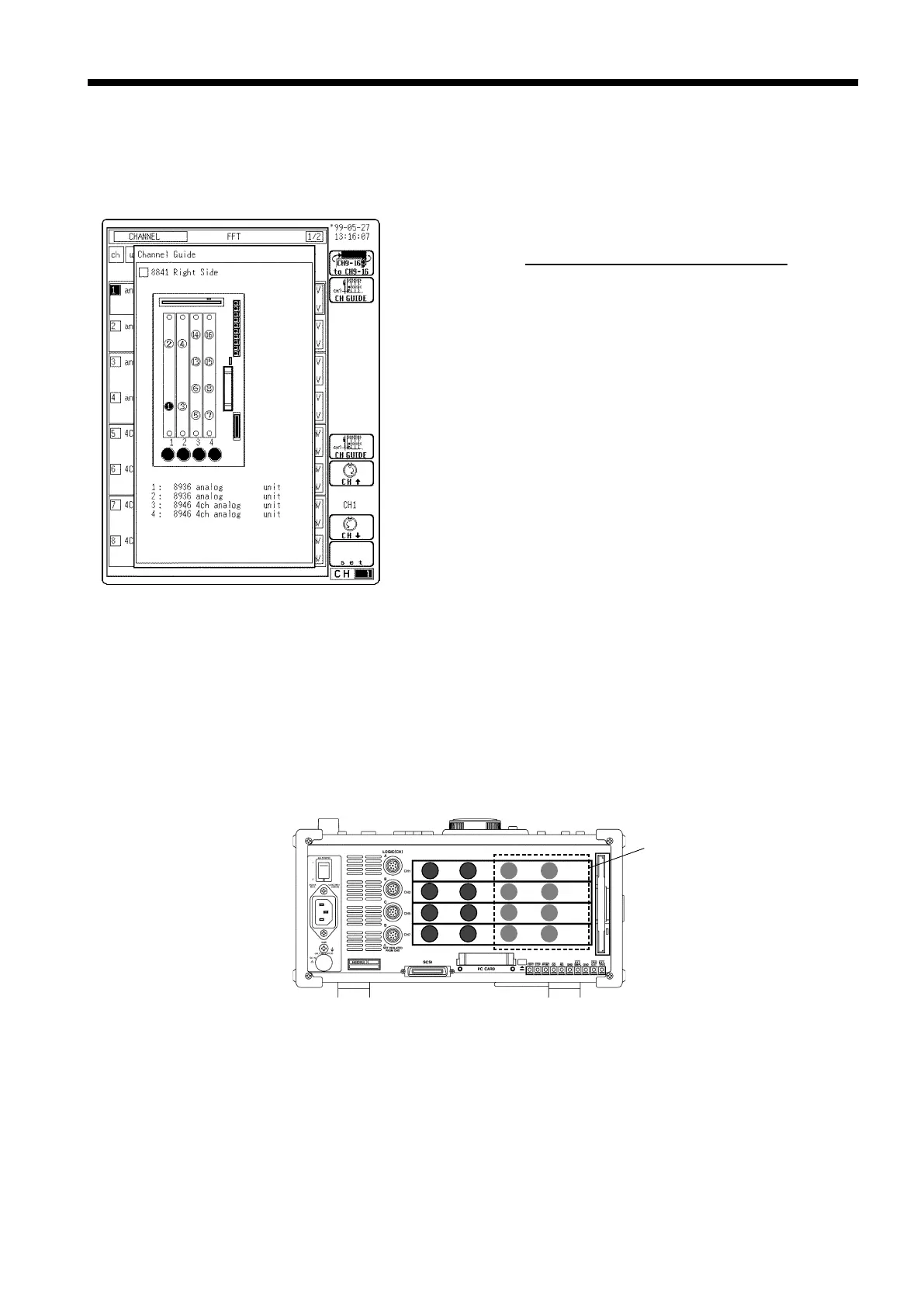

9.6 Channel Guide Function
────────────────────────────────────────────────────
s7312
Illustrates active channels
when the 8946 is mounted
in each slot.
1
2
3
5
7
4
6
8
9
10
11
12
13
14
16
15
9.6 Channel Guide Function
Indicates the relation of the input channel position to the channel indicated
by the flashing cursor.
Procedure
Screen: CHANNEL,Waveform display
1. Press the
CH.SET
key to display the CHANNEL
screen or Waveform display screen to display the
input channel setting screen.
2. Select the
CH GUIDE function key.
The input terminal associated with the channel
having the flashing cursor changes color.
3. Press the any key to exit the channel guide screen.
4. You can also check the status of CH2 to CH16.
Set the channels of the 8946 4ch ANALOG UNIT (only for the 8841 unit).
When the 8946 4ch ANALOG UNIT is used, input channels 1 to 4 are not
set in this customary sequence on the 8841. The slot position at which the
8946 is mounted determines the set input channel (see the illustration
below). When the 8946 is mounted in the topmost slot, channels 1, 2, 9,
and 10 are defined as active channels. Thus, "Active Channel" is set to
channels 1 to 8 in the system, and channel 2 of the 8946 is disabled.
