Hioki 8841 - Using the Multi-Block Function (MEM)

349
────────────────────────────────────────────────────

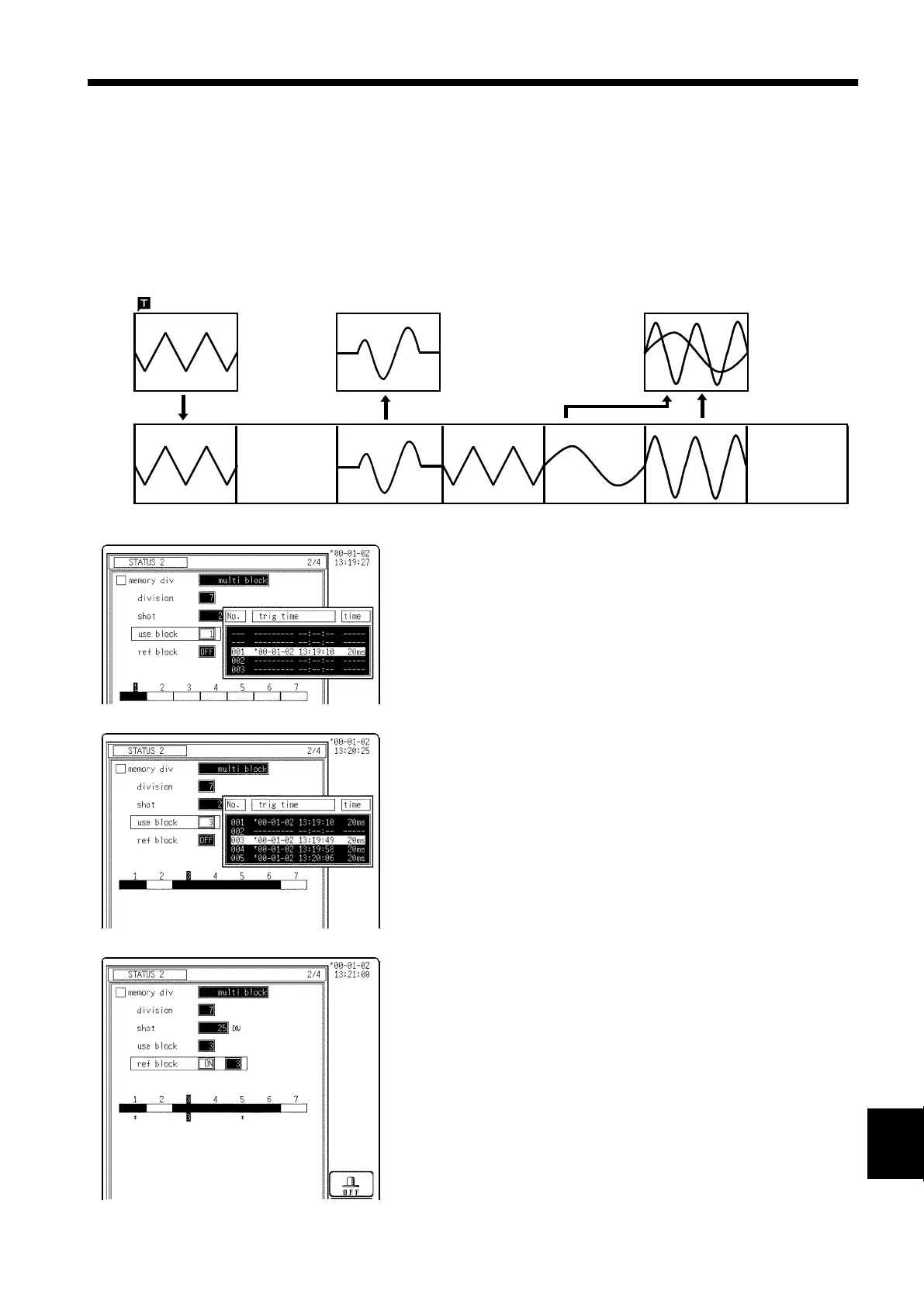

15.2 Using the Multi-Block Function (MEM)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Any block can be called up on display
Store in memory
O
ver
l
a
id di
sp
l
ay o
fd
a
t
a
f
rom
blocks
s132-1,2,3
15.2 Using the Multi-Block Function (MEM)
・Memory is divided into blocks which can be freely selected by the user for
storing measurement data.
・Data stored in any block can be called up on the display.
・Data from different blocks can be overlaid on screen for easy comparison.
(it can be printed out)
(1) Recording the waveform data in an arbitrary block
1. Set the number of memory divisions.
2. Select the block to be used for saving the waveform
data, from among the divided blocks on the use block
menu.
3. Press the START key to conduct measurement and
save waveform data to the specified block.
(2) Displaying an arbitrary block
Select the block to be used to display the waveform
data, from among the recorded blocks on the use block
menu.
(3) Displaying arbitrary blocks in duplicate
1. Save at least two waveform data items.
2. Select the block to be used to display waveform data,
from among the recorded blocks on the
use block
menu.
3. Select the block to be to displayed in duplicate on the
ref block
menu.
4. Display the block selected from the
use block
menu
and the block selected from the
ref block
menu, in
duplicate. Note that waveform data cannot be saved
while blocks are overlapping.
