15.1 Using the Sequential Save Function
────────────────────────────────────────────────────
Measurement start
Start block
Measurement end
Trigger mode
SINGLE
REPEAT
AUTO
TIMER
(REC&MEM only)
Waveform display
Auto print
End block
Auto saving
NOTE

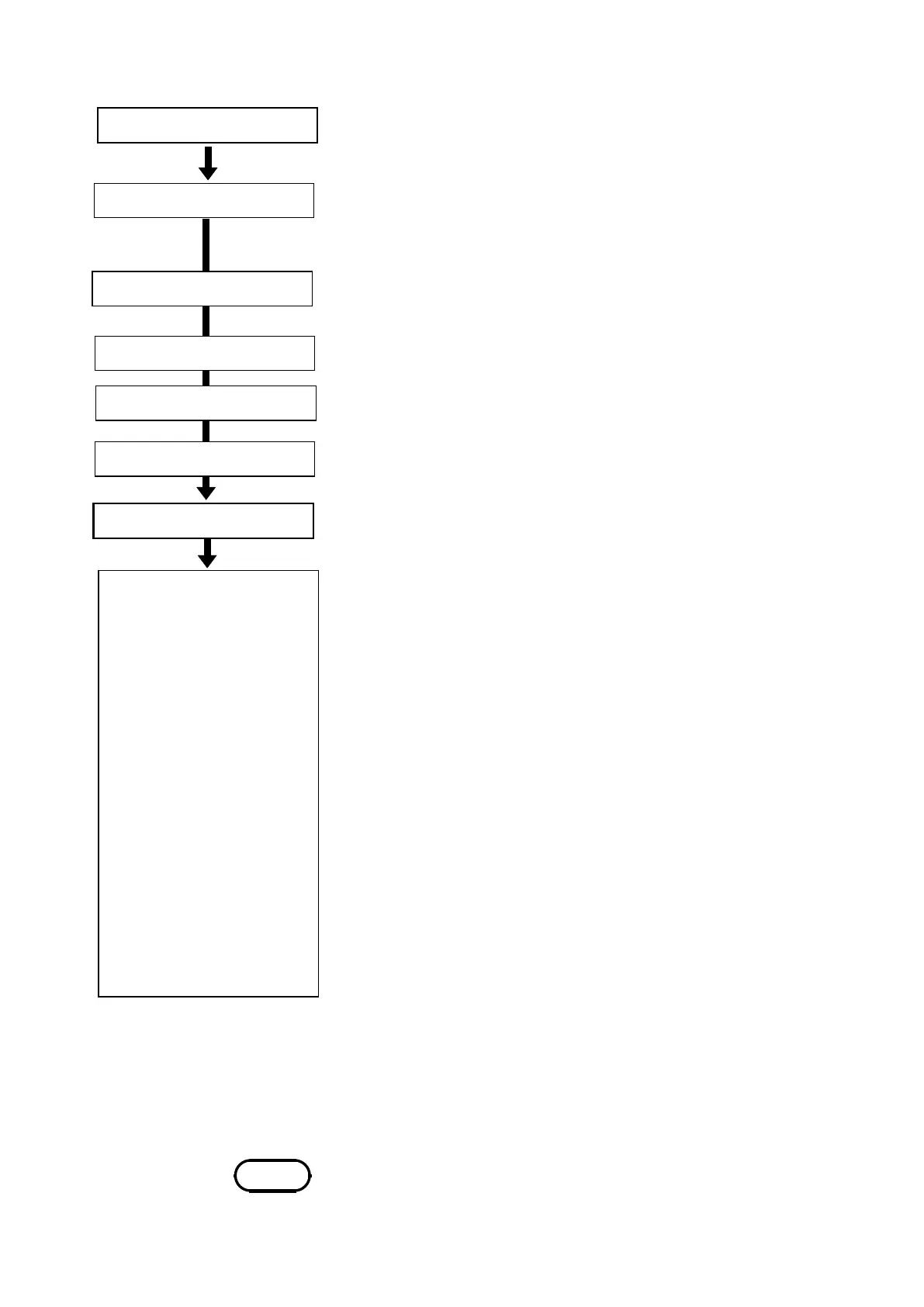

Relation between trigger mode and sequential save function
Press the
START
key and LED light.
Data recording starts when trigger condition are met.
Start block is stored by trigger setting.
The following waveform display ON:
waveform is displayed.
The following waveform display OFF:
waveform is not displayed.
End block is stored by trigger setting.
The following waveform display ON:
waveform is displayed.
The following waveform display OFF:
waveform is not displayed.
Displays end block waveform.
When auto printing is enabled, all blocks are printed from the
start block while individual blocks are displayed.
When auto saving is enabled, waveforms in all blocks are saved
in a batch.
･
End of measurement
(MEM) When the STOP key is pressed twice during
measurement, the 8841/42 is forcibly stopped. (Auto
printout and auto save are not executed.)
(REC&MEM) When the STOP key is pressed once during
measurement, the 8841/42 is forcibly stopped.
(MEM) Each time when trigger conditions are met, data are
recorded and memory contents are overwritten.
･
End of measurement
If the STOP key is pressed during recording, recording
continues until the end of the current block.
(Waveform display, auto printout and auto save are executed.)
When the STOP key is pressed twice during measurement, the
8841/42 is forcibly stopped. (Auto printout and auto save are
not executed.)
(REC&MEM) Measurement is started again. The memory
waveform data is cleared.
･
End of measurement
When the STOP
key is pressed once during measurement, the
8841/42 is forcibly stopped.
When recording with a preset time interval, recording
continues until the preset stop time.
If the STOP key is pressed during measurement, measurement
is terminated.
The memory waveform is cleared after each preset time
period.
When the following waveform display (memory recorder) is on
and the view function is on, the dead time becomes very large.
