13.3 Setting the CHANNEL Screen (printout)
────────────────────────────────────────────────────
1
2
3
19
5
6
7
8
9
10
11
12
13
14
A

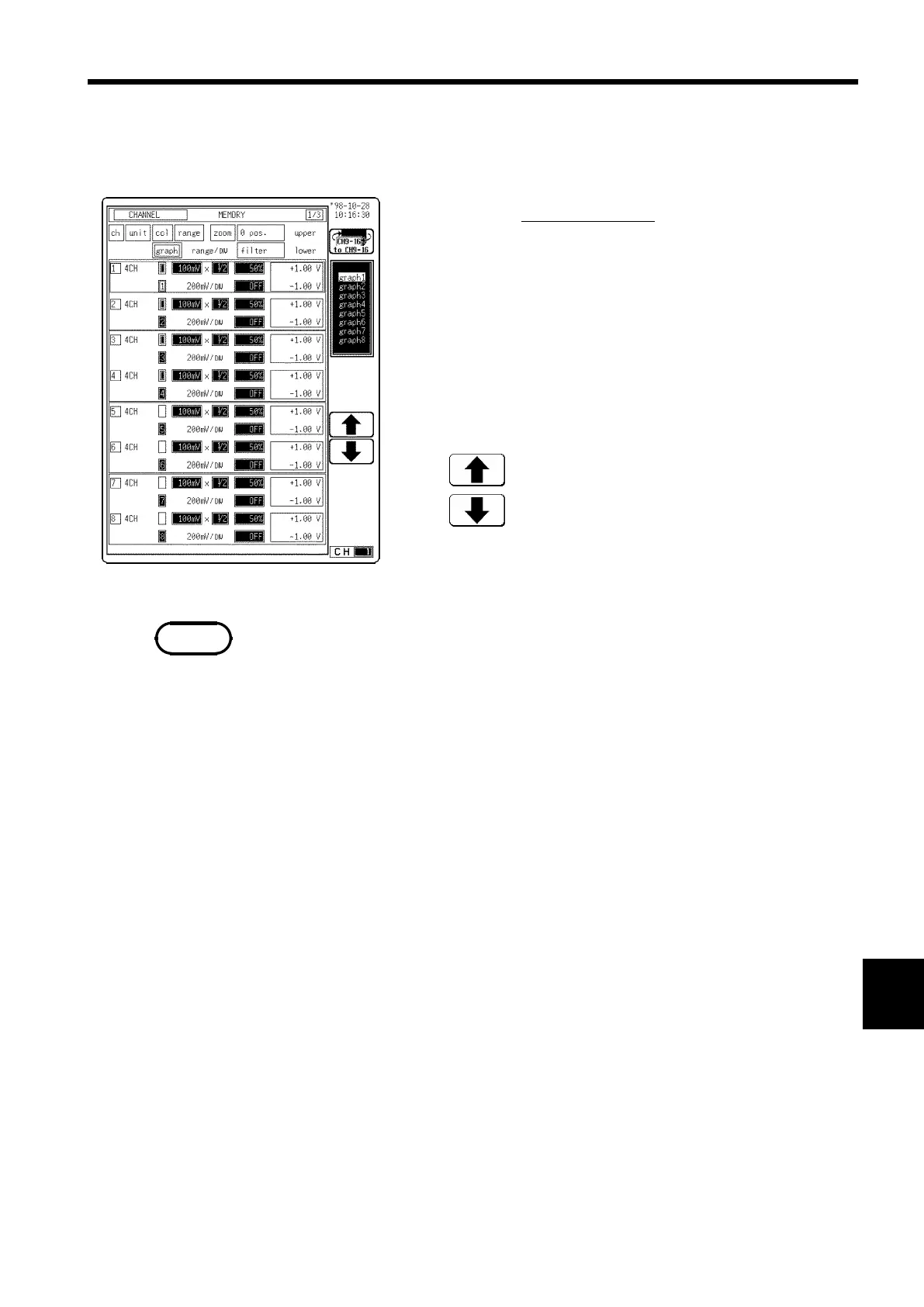

13.3.2 Setting the Waveform Display Graph Position
s1132
Function
display Meaning
##F2
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
NOTE
Set which graph type to use when display format has been set to DUAL,
QUAD, OCT or HEX screen display on the STATUS screen.
Procedure
Screen: CHANNEL
1. Press the CHAN key to display the CHANNEL screen.
2. Use the CH.SET key to display the desired channel
screen.
3. Move the flashing cursor to the position of the graph
to be set.
4. Use the function keys or Jog/Shuttle control to make
the selection.
For the X-Y screen (memory recorder and recorder) display format, see the
X-Y recorder setting for each function.
