224
────────────────────────────────────────────────────

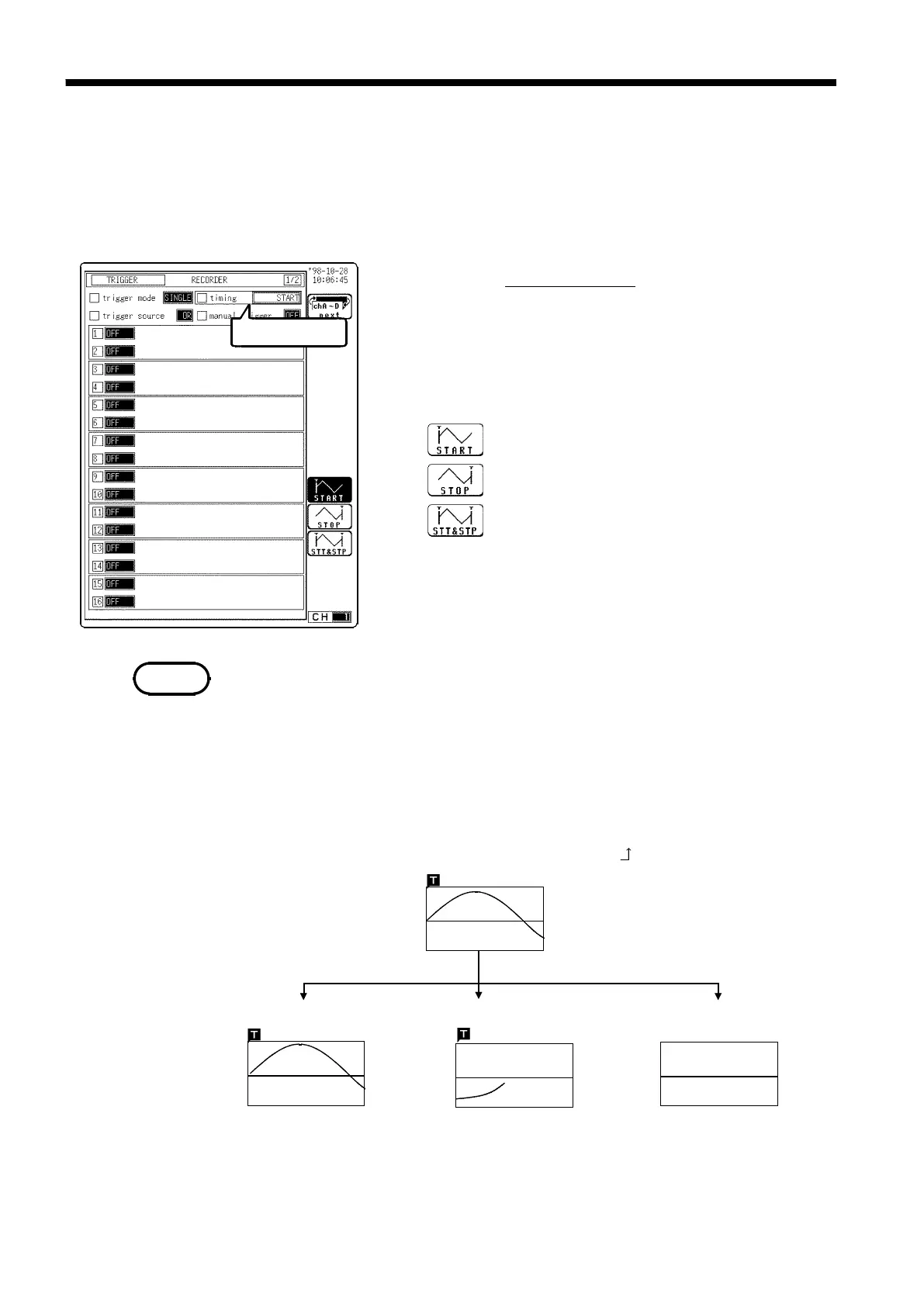

10.6 Trigger Timing (REC only)
────────────────────────────────────────────────────
s86
Flashing cursor
Function
display
Meaning
:
Recording starts when the trigger is applied.
:
Recording starts only when the START key is
pressed, and stops when the trigger is applied.
:
Recording starts when the trigger is applied,
and stops when the trigger is applied next.
NOTE
SINGLE
Measurement ends.
Trigger mode
REPEAT (START&STOP)
The stop trigger is not enabled
until the waveform data fills the
recording length.
The system awaits the
start trigger (trigger wait
status).
Measurement starts
again.
REPEAT (STOP)
10.6 Trigger Timing (REC only)
・
The moment the trigger occurs, the time related to the waveform being
recorded can be set.
・
Not only the waveform after the trigger but also the waveform before the
trigger can be recorded.
Procedure
Screen: TRIGGER
1. Press the TRIG key to display the TRIGGER screen.
2. Move the flashing cursor to the timing item.
3. Use the function keys to make a setting.
When the trigger timing is set to Stop or Start & Stop, measured waveform
data equivalent to the recording length is saved if the stop triggering is not
generated between the initiation of measurement and the end of the set
recording length.
Trigger mode:
SINGLE: Stop measurement.
REPEAT (STOP): Start measurement again.
REPEAT (START&STOP): Wait for trigger.
Example: Trigger setting; level trigger, 0.000 V ( )
