Hioki 8841 - Maximum Input Voltage

28
────────────────────────────────────────────────────
2.10 Notes on Measurement
────────────────────────────────────────────────────

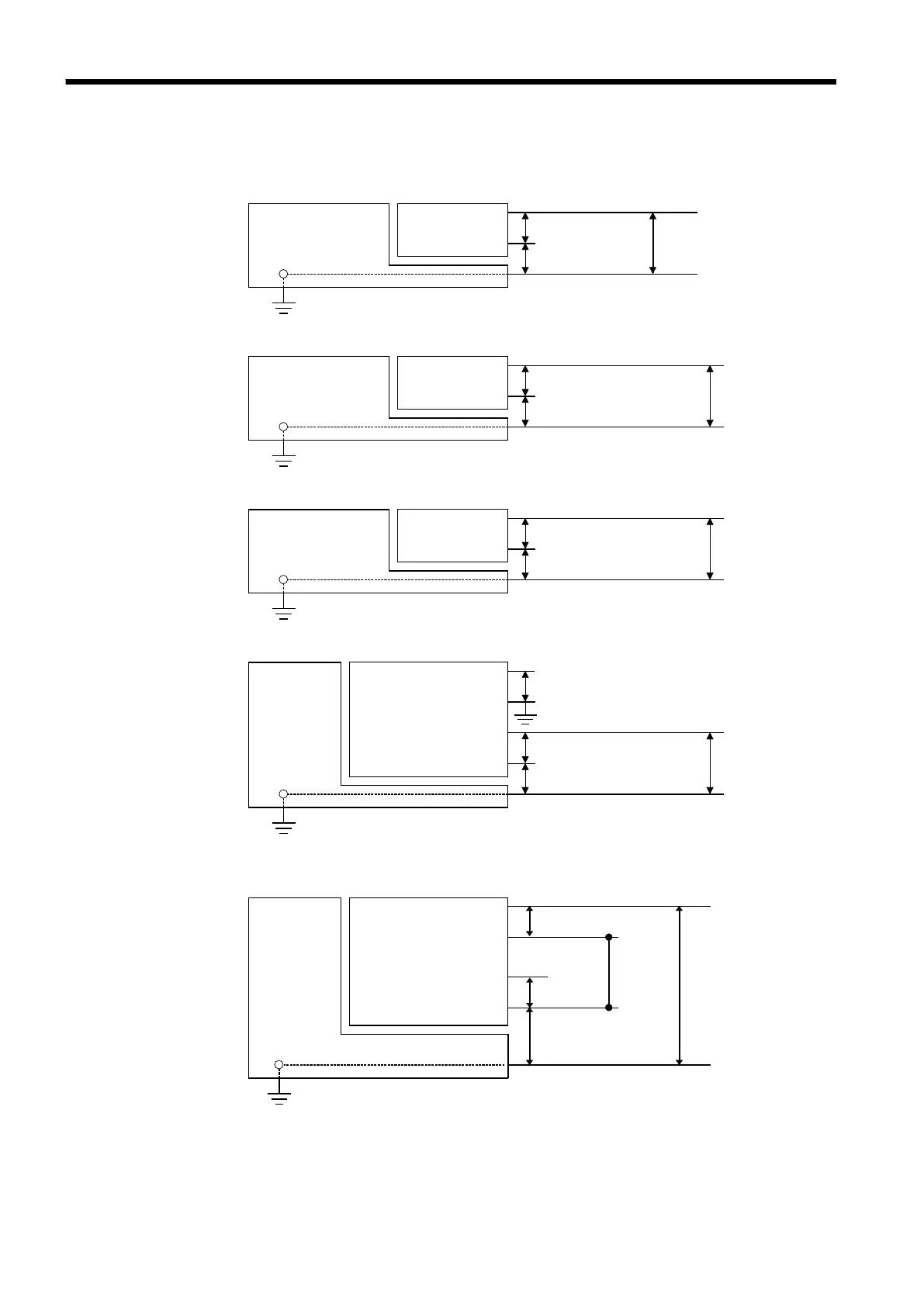

2.10.1 Maximum Input Voltage
8841/42
GND
8936
8938
H
L
370 VAC/DC
400 VDC max.
370 VAC/DC
8841/42
GND
8937
8946
H
L
30 Vrms or 60 VDC
30 Vrms or 60 VDC
30 Vrms
or 60 VDC
8841/42
GND
8939
H
L
30 Vrms or 60 VDC
10 VDC max.
30 Vrms
or 60 VDC
8841/42
GND
8940
H
L
H
L
30 Vrms or 60 VDC
30 Vrms or 60 VDC
30 Vrms or 60 V
30 Vrms
or 60 VDC
Connector
BNC
30 Vrms or
60 VDC
Miniature
connector
BNC
30 Vrms or
60 VDC
8947
30 Vrms or
60 VDC
Common
GND
8841/42
Maximum
input load
Maximum input load
±
500 pC
（
High sensitivity: 6 range
）
±
50,000 pC
（
Low sensitivity: 6 ranges
）
H
L
H
L
■
8936 ANALOG UNIT, 8938 FFT ANALOG UNIT
■
8937 VOLTAGE/TEMP UNIT
■
8939 STRAIN UNIT
■
8940 F/V UNIT
■
8947 CHARGE UNIT
