8.3 STATUS1 Settings (FFT)
────────────────────────────────────────────────────
8.3.8 Setting the FFT Analysis Mode
Function
display Meaning
Function
display Meaning
:
Stored waveform
:
Transfer function
:
Linear spectrum
:
Cross power spectrum
:
RMS spectrum
:
Cross correlation
function
:
Power spectrum
:
Impulse response
:
Auto correlation
function
:
Coherence function
:
Histogram
:
Octave analysis
Used to select the FFT calculation method.
Procedure

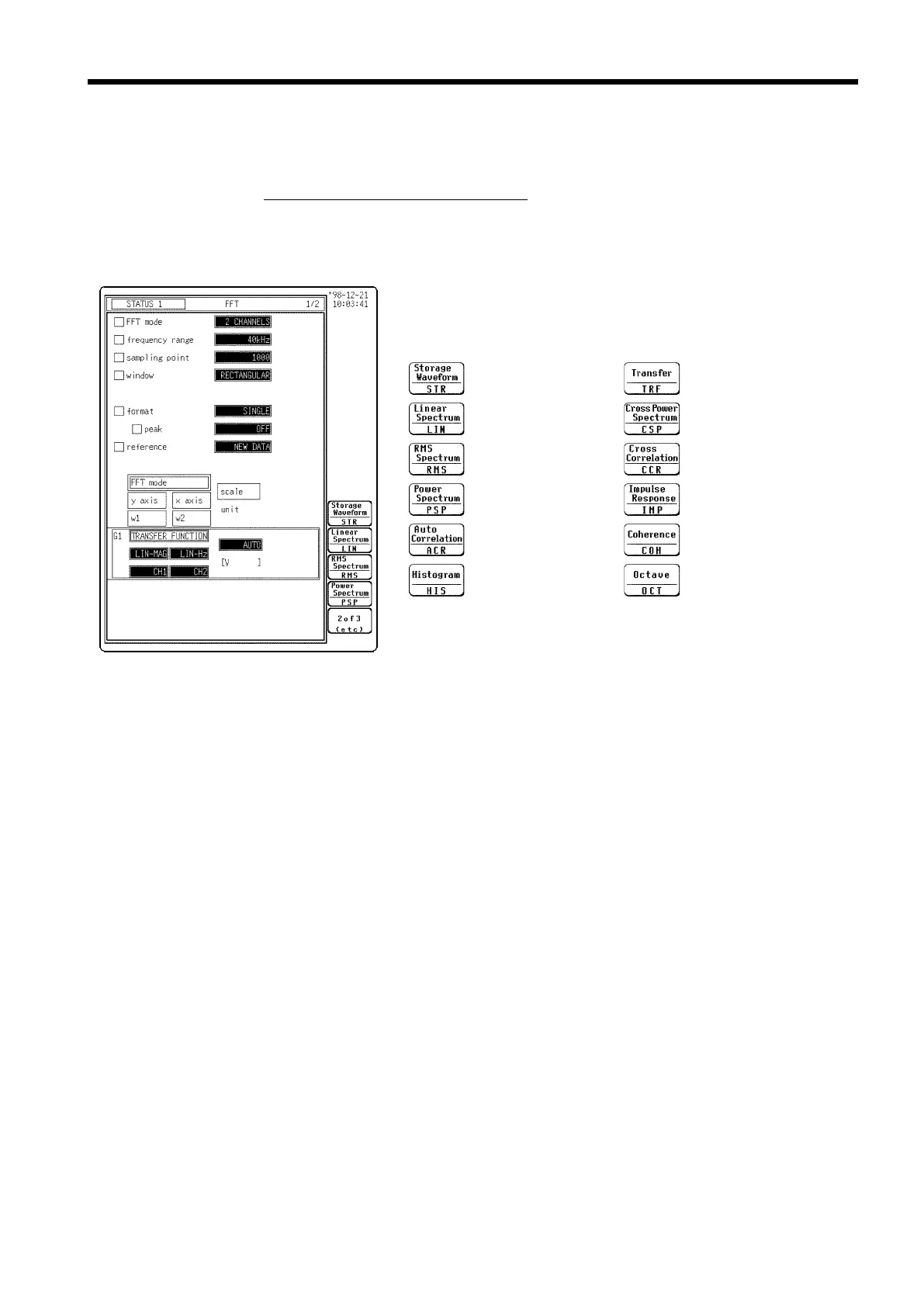

Screen: STATUS1, Waveform display
1. Use the Menu keys to display the desired screen.
2. Move the flashing cursor to the FFT mode item.
3. Use the function keys to make a setting.
